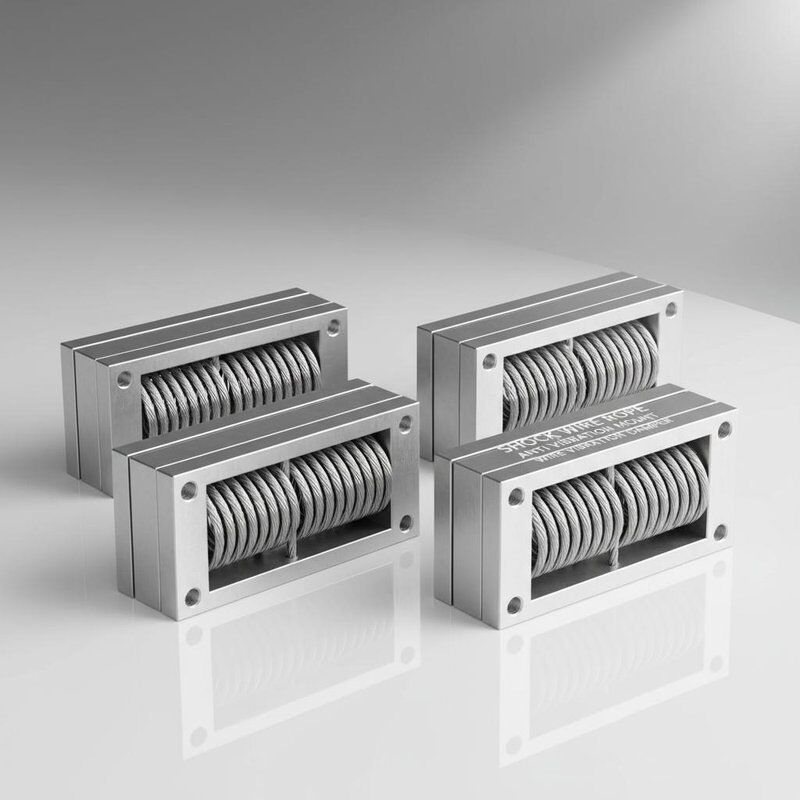

Shock Wire Rope Anti Vibration Mounts Wire Vibration Damper
Machine Navy Shipborne Marine Vehicles Container Shock Vibration Control JGX-1278D-370B Aluminum Wire Rope Isolator
Product Overview

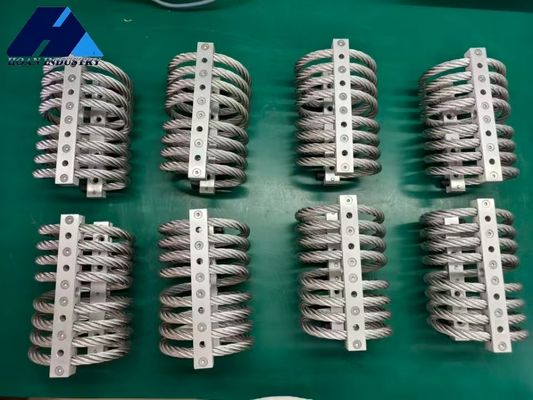

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.
With their corrosion resistant, all-metal construction, Xi'an Hoan's wire rope isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.
The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable's individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.
The JGX-1278D-370B marine wire rope isolator is the kind type isolators from the family JGX-1278 series. The stainless steel cables and retaining bars of the JGX-1278D-370B provides amazing vibration isolation any time in use.

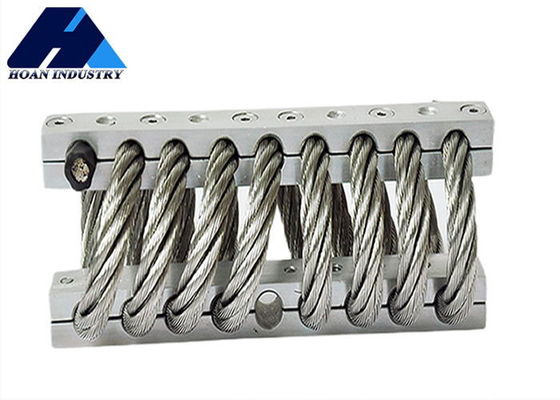

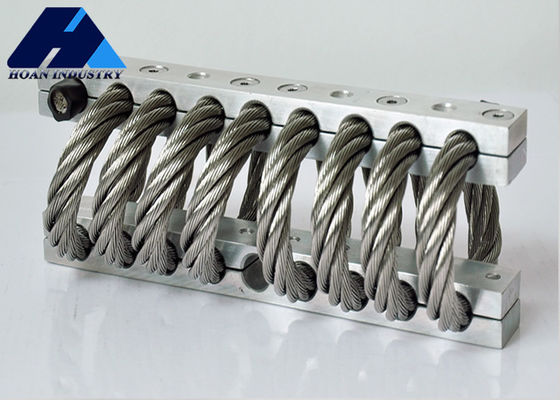

JGX-1278D-370B is the new designed 8 loops 12.7mm diameter marine wire rope isolators with max static load of 370kg, especially used in any navy shipborne or marine systems for mechanical noise attenuation. With stainless steel or alloy material bar, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.
The JGX-1278D-370B wire rope isolators are now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
Mounting Bars
Material of Mounting Bars
Stainless Steel or Aluminum can be selected
Surface Treatment Selection of Aluminum Mounting Bars
- White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars.
- Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Unique Characteristics
- No creep or ageing
- High internal damping
- Very wide temperature range
- Wide variety of possible fittings
- Rapid and economical prototyping
- Extremely rugged construction and long lifespan
- Excellent combined shock and vibration isolation
- Not affected by chemical agents, seawater, ozone, UV rays
Applications
| Applications |
Typical Equipment |
Protection From |
Operational Advantages |
| Shipboard |
Electronics, Computers, Machinery |
Explosive blast, Inherent vibration, Storms |
Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles |
Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Aircraft |
Electronics, Computers |
High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers |
Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment |
Missile launchers, Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit |
Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock |
Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
Applications Show
Company Information
Xi'an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of defense, commercial and heavy industry.
Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.
Now, we are the best seller for more than 31 provinces in China and almost 15 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.
Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
