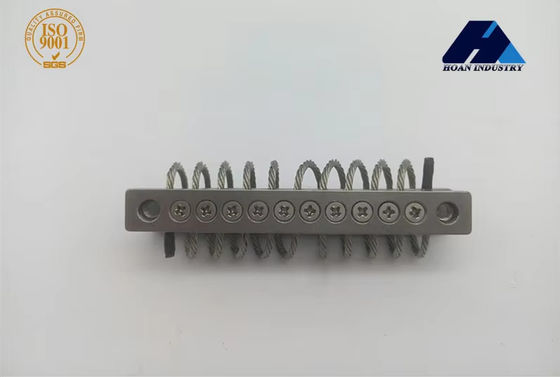

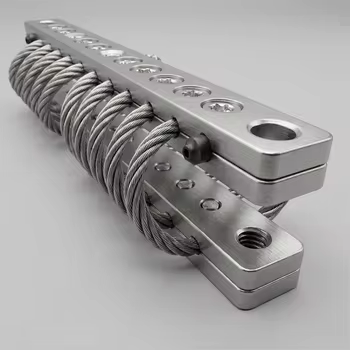

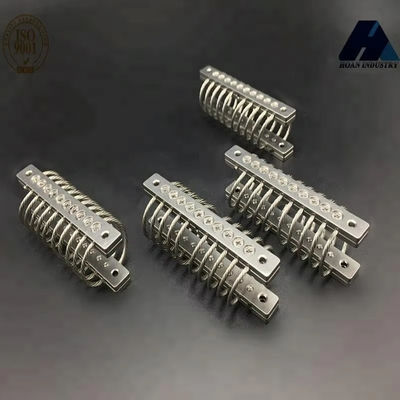

All-Metal JGX-0160E-4.8A Gimbal Wire Rope Isolator Rapid Energy Dissipation Compact UAV Camera Vibration Damper Mount

Summary:
The JGX-0160E-4.8A is a fully metallic gimbal vibration isolator engineered for precision vibration control in compact UAV camera applications. Its all-metal construction eliminates rubber and elastomer components entirely, delivering consistent damping performance unaffected by temperature swings, UV exposure, or chemical contact. The proprietary vibration dissipation mechanism converts mechanical energy to heat within milliseconds, providing inherently reliable isolation that requires zero maintenance over the product's service life. The 4.8KG load rating with type-A mounting configuration is optimized for lightweight FPV and action camera payloads.

Vertical Load Performance

45° Directional Load Performance

Lateral Load Performance

Damping Mechanism & Material Engineering

The JGX-0160E-4.8A achieves its class-leading vibration control through a pure all-metal construction architecture. The isolator's rapid energy dissipation mechanism converts mechanical vibration energy into low-grade thermal energy through dry friction at its internal contact interfaces, which dissipates passively into the surrounding air within 3-5 milliseconds per cycle. There are no hydraulic fluids to leak, no elastomer elements to crack, and no mechanical linkages to wear out—the all-metal architecture ensures consistent, maintenance-free damping performance for the entire operational life of the UAV.

The base plates are machined from 6061-T6 aluminum alloy billet with a hard anodized surface finish (Type III, MIL-A-8625 compliant). This provides a 50-micron oxide layer that resists galvanic corrosion when mounted to carbon fiber drone frames—a common failure point with steel-on-carbon-fiber interfaces. Grade 12.9 alloy steel socket head cap screws with black oxide coating are supplied as standard fasteners, pre-applied with medium-strength threadlocker for vibration-resistant assembly.

Installation Guidance

1. Verify the payload weight falls between 1.4N and 3.4N (30%-70% of the 4.8N maximum static load) for optimal damping performance.
2. Select the required mounting configuration (A through E, or S-type) based on your gimbal frame geometry. The standard 4.8A model ships with configuration A; other configurations are available on request.
3. Clean all mounting surfaces with isopropyl alcohol. Apply a thin film of anti-seize compound to fastener threads if operating in salt-spray environments.
4. After installation, conduct a ground vibration sweep test from 5-500 Hz to verify isolation performance before flight deployment.

Quality Assurance & Standards Compliance

Every JGX-0160E-4.8A isolator undergoes four mandatory quality gates before shipment: (1) Dimensional inspection using CMM equipment with ±0.02mm accuracy against engineering drawings; (2) Wire rope tension verification at 150% of rated load with zero permanent set; (3) Dynamic stiffness characterization across 5-2000 Hz frequency sweep on an electrodynamic shaker table; (4) Visual and dimensional final inspection with lot traceability to raw material heat numbers. Our ISO 9001:2015 certified production facility maintains full batch traceability from incoming steel coil through finished product serial numbering.

Application Fields

1. Aerial Photography & Cinematography UAVs
2. Industrial Inspection & Asset Monitoring Drones
3. Precision Agricultural Survey Platforms
4. LiDAR & Thermal Imaging Payload Mounts
5. FPV Racing & Freestyle Quadcopters
6. Search & Rescue Drone Systems
