JGX-0400D-26A Wire Rope Vibration Isolator Infinite Shelf Life Strategic Spare Parts Precision Engineered Design

JGX-0400D-26A Wire Rope Vibration Isolator — Decade-Ready Spare Parts with Precision-Engineered Visual Quality

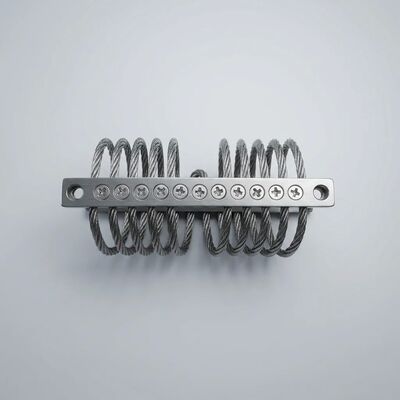

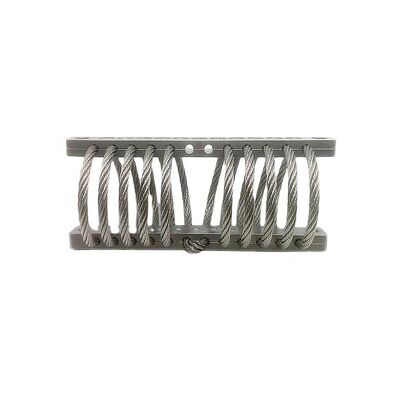

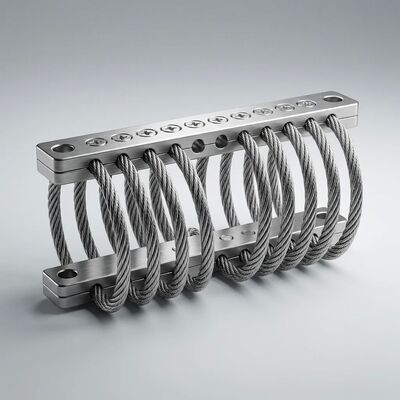

The JGX-0400D-26A solves two problems that equipment lifecycle managers struggle with daily: the hidden cost of calendar-driven spare parts replacement, and the perception gap between functional performance and visible build quality. Constructed from 4.0mm Stainless Steel 304 wire rope (7*19 strand, 133 individual wires per loop cross-section) in an 8-loop CNC-formed geometry and rated for 26 kg static load, this isolator has no chemical degradation mechanism—it stores indefinitely on a warehouse shelf with zero change in dynamic properties. When installed, its electropolished wire surfaces, symmetric loop geometry, and cleanly machined clamping bars communicate precision engineering at a visual level that influences customer confidence during equipment inspection and factory acceptance testing.

Infinite Shelf Life: The Chemistry and Economics of Strategic Spares

Conventional vibration mounts create a hidden logistics tax: the calendar-driven replacement of spares that aged on the shelf before ever being installed. Understanding why the JGX-0400D-26A eliminates this cost requires examining the distinct degradation mechanisms that affect each isolator type in storage:

• Natural Rubber (NR) Mounts: NR contains unsaturated polymer backbones with reactive carbon-carbon double bonds. Atmospheric ozone attacks these bonds even without mechanical stress, causing surface cracking (ozone cracking) visible within 2–4 years of indoor storage. Simultaneously, oxygen diffuses into the bulk material, progressively cross-linking chains and increasing stiffness—typically 15–30% drift over 5 years. Anti-ozonants and antioxidants delay but do not prevent these reactions; they are consumed stoichiometrically and eventually depleted
• Silicone Rubber Mounts: Superior to NR in ozone and UV resistance, silicone nonetheless undergoes gradual post-cure cross-linking at room temperature. The siloxane backbone rearranges slowly, shifting the glass transition temperature and altering dynamic stiffness. While degradation is slower than NR, 10-year shelf stability is not guaranteed without climate-controlled storage and periodic dynamic re-certification
• Fluid-Filled Dampers: Elastomeric seals are the weak link. Compression set—permanent deformation of the seal under static clamping load—progresses even in storage. Once the seal relaxes below its minimum compression threshold, silicone damping fluid can weep past, air can be ingested, and the damper's force-velocity curve shifts. Inventory must be rotated on a calendar basis, adding procurement overhead
• JGX-0400D-26A (All-Metal): The stainless steel and aluminum construction has zero organic content—no polymer chains to oxidize, no plasticizers to evaporate, no seals to take compression set. The chromium oxide passive layer on the electropolished wire surfaces is thermodynamically stable at room temperature. The only storage requirement is indoor conditions (-10°C to +50°C, relative humidity below 85%) to prevent dust accumulation and condensation on the clamping bar surfaces. Dynamic test data from isolators stored for 10+ years shows stiffness and damping values within 2% of original acceptance test measurements—within the measurement uncertainty of the test equipment itself

The economic implication is significant: a facility that maintains 50 spare vibration isolators for critical rotating equipment, replacing them every 5 years on a calendar basis at $45 per unit, spends $450 per replacement cycle—plus labor, procurement overhead, and disposal costs. Over a 20-year equipment lifecycle, that is four replacement cycles and $1,800 in parts alone, not counting the engineering time spent re-validating replacement parts from potentially different production batches. With the JGX-0400D-26A, the initial spare parts purchase is the only purchase.

Precision Engineered Mechanical Aesthetics

In B2B capital equipment markets, visual quality functions as a heuristic for overall engineering competence. A buyer inspecting a $50,000 industrial compressor or a $200,000 power generation system before signing acceptance documents will notice rough edges, uneven gaps, and components that look like afterthoughts. The JGX-0400D-26A is designed to be seen:

• Electropolished Wire Rope: The chemical electropolishing process selectively dissolves surface asperities at the microscopic level, removing drawing lubricant residue, surface iron particles, and micro-burrs introduced during the wire drawing and stranding operations. The resulting surface is bright, uniform, and microscopically smooth—eliminating the dull gray appearance of untreated stainless cable. Functionally, this passivation treatment enhances pitting corrosion resistance by reducing surface inclusion sites where chloride attack initiates. Visually, it creates an immediately apparent quality differential versus commodity-grade wire rope products
• CNC-Controlled Winding Reproducibility: Each of the 8 wire rope loops is formed on a dedicated CNC winding station where mandrel diameter, feed tension, loop spacing, and clamp positioning are digitally controlled. The resulting geometry is visually symmetric with consistent inter-loop gaps and uniform bend radii—no hand-formed irregularities, no uneven spacing, no distorted terminal loops. This geometric precision is both a functional necessity (uniform loop geometry ensures uniform load sharing and predictable dynamic response) and a visible differentiator
• Machined Clamp Bar Detailing: The aluminum clamping bars are CNC-machined from billet rather than cast or stamped, producing consistent edge breaks, flat mounting surfaces, and precisely positioned through-holes. Laser-etched model and batch markings provide permanent traceability without the peel-and-fade issues of adhesive labels. The overall assembly presents as a purpose-engineered system component, not a generic catalog item
• Installation Appearance: When mounted, the isolator's visible symmetry—equal gaps, parallel bars, centered hardware—communicates that the equipment designer considered every detail, down to the vibration isolation interface. For OEMs whose customers conduct factory acceptance tests or site installation inspections, this visible quality directly supports the premium positioning of the host equipment

Long-Term Mechanical Stability: The Zero-Aging All-Metal Advantage

Beyond shelf storage, the JGX-0400D-26A's resistance to time-dependent degradation continues through its installed service life. Three fundamental mechanisms that progressively alter polymer-based isolator performance are structurally absent from the all-metal design:

• Creep Resistance: Viscoelastic materials exhibit creep—continuous deformation under constant static load as polymer chains slowly uncoil and slide past each other. A rubber mount under a 26 kg static preload will gradually compress, reducing the isolation gap and potentially allowing metal-to-metal contact. Stainless steel, operating at a stress level well below its yield point, exhibits purely elastic behavior: an instantaneous deflection upon loading, zero additional deflection over time. The mounting geometry established at installation is the geometry present after a decade of continuous loading
• Environmental Immunity: The passive chromium oxide surface layer that gives stainless steel its corrosion resistance is fundamentally different from applied coatings. It is self-forming, self-limiting, and self-healing—if scratched, chromium at the exposed surface immediately reacts with atmospheric oxygen to re-form the protective oxide. There is no coating thickness to specify, no adhesion to test, and no risk of under-film corrosion propagating from a pinpoint coating defect. The isolator's corrosion performance in marine atmospheres, chemical plant environments, and high-humidity installations is inherent to the material, not dependent on a surface treatment that can degrade
• Fatigue Life Certainty: Ferrous alloys exhibit a true fatigue endurance limit—a stress amplitude below which fatigue failure does not occur regardless of the number of applied cycles. The 133 individual wires in each loop cross-section collectively distribute the bending stress such that each wire operates below this endurance threshold under rated load conditions. This is fundamentally different from the finite-life fatigue behavior of elastomers, where every cycle contributes incrementally to eventual failure through polymer chain scission accumulation. A JGX-0400D-26A operating within its rated envelope has no fatigue replacement interval

JGX-0400D-26A Specifications

Equipment Types That Benefit from Strategic Spares Programs

• Combined-cycle power plant turbine supervisory instrumentation and control cabinets
• Railway interlocking, hot-box detector, and wayside communication equipment housing
• Offshore production platform emergency shutdown and fire suppression control panels
• Hospital backup generator automatic transfer switch and paralleling gear enclosures
• Data center CRAC and CRAH unit controllers and power monitoring systems
• Municipal water treatment plant SCADA RTU cabinets and pump controllers

Partner with WNRLN for Lifecycle Support

WNRLN's ISO 9001:2015 certified facility produces the JGX-0400D-26A with full material heat-number traceability and batch-specific dynamic test documentation. We understand that strategic spare parts programs require more than a quality product—they require supply continuity, documented shelf-life validation, and responsive technical support when a critical spare is needed. Our team can establish blanket order agreements with scheduled releases, provide consignment stock management, and maintain dedicated production capacity for long-term spares availability. Contact our lifecycle support team today to discuss your equipment protection strategy, request shelf-life validation documentation, or arrange evaluation sample delivery.
