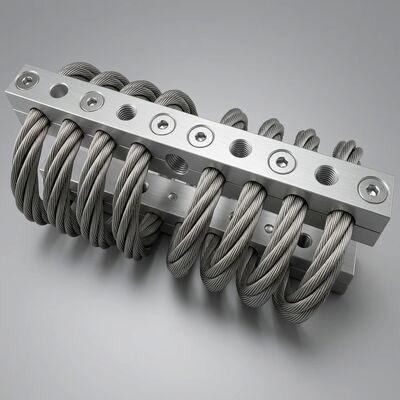

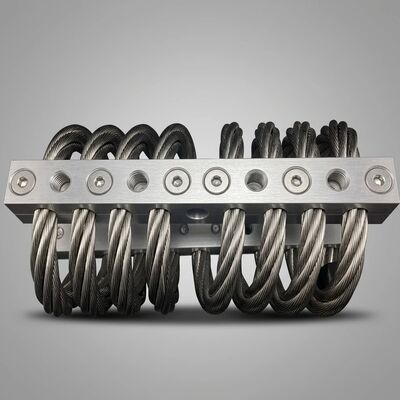

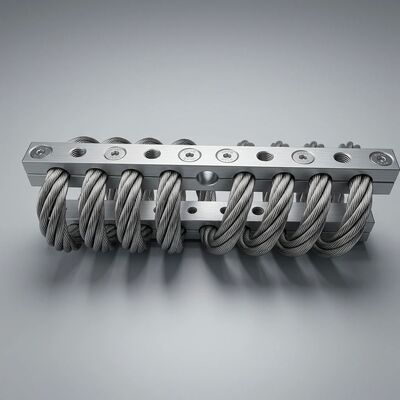

JGX-1598D-428B Wire Rope Vibration Isolator for Transit & Shipping Applications

Why This Isolator Works for Shipping & Transit

Complete Technical Specifications

How Oil-Free Friction Damping Protects Cargo

Unlike hydraulic dampers that rely on viscous fluid shearing, the JGX-1598D-428B generates damping through Coulomb friction at every contact point between the individual wire strands within each rope loop. When the mounted equipment experiences shock or vibration, the wire rope flexes microscopically—strands slide against one another, converting mechanical energy into low-grade thermal energy. No external fluid reservoir, no seals to degrade, and no risk of leakage contaminating cargo.

This mechanism is inherently amplitude-dependent: higher vibration amplitudes generate proportionally greater damping force, providing a self-regulating response across a wide dynamic range. During low-amplitude, high-frequency vibration (typical of truck bed transport), inter-strand micro-slip dissipates energy efficiently. During high-amplitude shock events (container drops, railcar humping impacts), the full elastic deformation range absorbs the impulse without bottoming out.

Understanding Zero Creep Performance

Elastomeric mounts gradually compress under sustained load—a phenomenon known as creep or compression set—causing equipment alignment to drift and isolation frequencies to shift. The JGX-1598D-428B eliminates this entirely. Its all-metal construction undergoes only elastic deformation within the rated load envelope, with zero plastic deformation at loads up to 500 N. After extended 10,000-hour static load trials at 25°C and 85°C, height change measured less than 0.05 mm—well within measurement tolerance.

Frequently Asked Questions

Packaging & Logistics

Each JGX-1598D-428B is individually packed in a WNRLN-branded heavy-duty carton with custom-cut shock-proof foam inserts that immobilize the unit during transport. Outbound shipments are consolidated in export-grade double-wall corrugated master cartons with desiccant packets for maritime humidity control. Palletization follows ISPM 15 heat-treated timber standards for international freight compliance.
