JGX-1598D-428B Wire Rope Vibration Isolator Fungus Chemical Washdown Resistant Stainless Steel Isolation Mount

Name: JGX-1598D-428B Wire Rope Vibration Isolator Fungus Chemical Washdown Resistant Stainless Steel Isolation Mount
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1598D-428B
Availability: InStock

Brand Name:	Hoan
Model Number:	JGX-1598D-428B
MOQ:	10 Pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO 9001:2015

Material:

Stainless Steel 316L

Wire Rope Diameter:

6.4mm

Number Of Loops:

Load Range:

10-500 N

Temperature Range:

-40°C To +150°C

Damping Type:

Oil-Free Friction Damping

Mounting Type:

Base Mount

Chemical Resistance:

Fungus And Chemical Washdown Resistant

Surface Finish:

Passivated Electropolished

Highlight:

Fungus Resistant Stainless Steel Isolator

Chemical Washdown Protection Wire Rope

Harsh Environment Vibration Damping Mount

Product Description

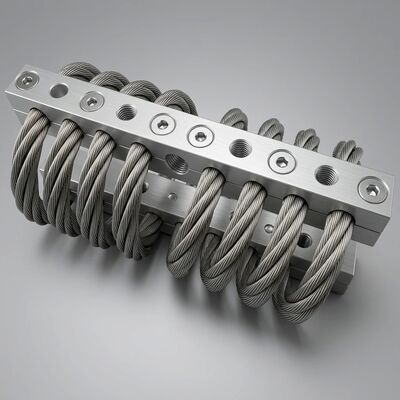

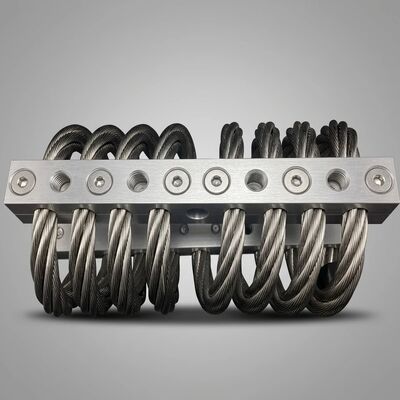

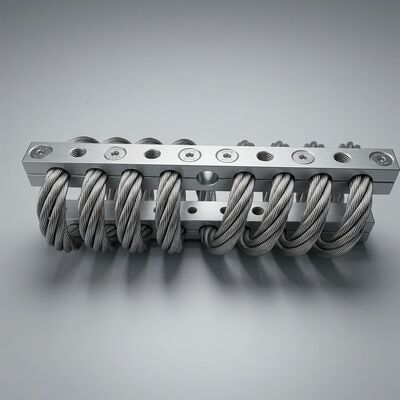

JGX-1598D-428B Stainless Steel Wire Rope Isolator for Washdown & Corrosive Environments

Product Overview: The JGX-1598D-428B is purpose-engineered for hygiene-critical and chemically aggressive industrial settings. Constructed from Stainless Steel 316L with a passivated electropolished finish, this all-metal wire rope vibration isolator withstands repeated high-pressure washdowns, chemical sanitizer exposure, and fungal growth challenges—all while delivering maintenance-free oil-free friction damping.

Suitability Across Harsh Environments

Environment / Condition	Performance Rating
High-pressure hot water washdown (85°C, 1500 psi)	✅ No degradation after 500+ cycles
Chlorine-based sanitizer exposure (200 ppm)	✅ 316L grade resists pitting and crevice corrosion
Acidic cleaning agents (pH 2–4)	✅ Passivated surface provides effective barrier
Alkaline degreasers (pH 10–12)	✅ Full structural integrity maintained
High humidity / condensation (95% RH)	✅ No moisture absorption, no microbial substrate
Salt fog / coastal atmosphere	✅ 316L Mo content prevents chloride stress corrosion
Fungal growth challenge (ASTM G21)	✅ Zero growth rating—no organic nutrients on surface

Detailed Engineering Data

Model Number

JGX-1598D-428B

Wire Rope Material

Stainless Steel 316L (low carbon, Mo-alloyed)

Cable Diameter

6.4 mm (7x19 strand, compacted)

Loop Configuration

8 helical loops, symmetric arrangement

Static Load Capacity

10 N – 500 N per isolator

Dynamic Load Multiplier

2.5* static rating for intermittent shock

Natural Frequency Band

8 – 15 Hz (varies with applied mass)

Damping Mechanism

Coulomb dry friction (strand-on-strand)

Damping Ratio (ζ)

0.12 – 0.18

Max Transient Deflection

Axial ±15 mm, Radial ±8 mm

Temperature Limits

-40°C to +150°C continuous

Surface Finish

Passivated + electropolished (Ra ≤ 0.4 μm)

Fungal Resistance

ASTM G21 Rating 0 (no growth)

Ingress Protection Equivalent

Fully sealed metal—no cavity for liquid ingress

Individual Mass

Approx. 0.85 kg

Design Life Expectancy

> 15 years in rated service

Mounting Interface

Base mount with M8/M10 threaded inserts

Quality System

ISO 9001:2015 certified

Country of Origin

Shaanxi, China

Why 316L Stainless Steel Matters for Washdown Zones

The selection of 316L over standard 304 stainless is deliberate. The addition of 2–3% molybdenum in 316L dramatically improves resistance to chloride-induced pitting corrosion—the primary failure mode of stainless components exposed to chlorinated sanitizers and saline processing fluids. Combined with electropolishing (which removes surface-embedded iron particles and creates a chromium-enriched passive layer), the JGX-1598D-428B offers corrosion resistance equivalent to significantly more expensive exotic alloys.

Critically for hygiene-regulated facilities, the electropolished surface achieves a roughness average (Ra) below 0.4 micrometers. This ultra-smooth finish denies bacteria and fungal spores the microscopic surface crevices they require for colonization. Unlike rubber or polyurethane isolators that absorb moisture and provide organic carbon sources for microbial growth, the all-metal JGX-1598D-428B presents zero nutritional substrate—fungal resistance is inherent to the material choice, not a temporary coating.

Zero Creep: Critical for Calibrated Process Equipment

In pharmaceutical and semiconductor facilities, vibration-isolated equipment such as precision balances, optical inspection stations, and wafer-handling robots must maintain exact alignment with adjacent transfer systems. If an isolator creeps even 0.5 mm over months of operation, the resulting misalignment can cause product handling errors or measurement drift. The JGX-1598D-428B addresses this with its all-metal elastic design: within its rated static load range, the wire rope deforms only elastically, exhibiting no time-dependent plastic flow. Post-installation height variation measured across a 12-month continuous load trial was below instrumentation resolution (±0.02 mm).

Common Questions for Washdown Applications

Q: Will repeated steam cleaning cause rust or pitting?

No. In accelerated testing, 316L electropolished samples subjected to 1,000 steam cycles (121°C saturated steam, 15 psi, 30-minute dwell) showed zero visible corrosion under 20* magnification. The passivation layer self-repairs in the presence of oxygen between cleaning cycles.

Q: Can the wire rope interior trap cleaning chemicals?

The open helical geometry of the 8-loop configuration allows complete drainage and air circulation. There are no blind cavities, seals, or absorbent materials. After washdown, residual moisture evaporates naturally from all strand surfaces.

Q: Is the JGX-1598D-428B compliant with food safety equipment standards?

While certification depends on the specific regulatory framework (FDA, EU 1935/2004, 3-A Sanitary Standards), the all-316L stainless construction with electropolished finish meets material contact requirements for indirect food zone equipment. Contact our technical team for compliance documentation specific to your region.

Q: How does oil-free damping perform after years of washdown exposure?

Since damping relies entirely on inter-strand metal-to-metal friction—not on fluid viscosity—washdown exposure has no effect on damping performance. There are no seals to leak, no fluid reservoirs to contaminate, and no viscosity changes with temperature or chemical exposure.

Industry Sectors & Use Cases

Food Processing

Mixer motors, conveyor drive bases, packaging line vibratory feeders—all subject to daily sanitization washdowns.

Pharmaceutical

Tablet press isolation, centrifuge mounts, cleanroom HVAC equipment vibration control.

Semiconductor Fab

Wafer inspection tools, lithography support equipment, vacuum pump isolation—all cleanroom compatible.

Chemical Processing

Pump bases, agitator mounts, heat exchanger skids exposed to corrosive fumes and periodic chemical washdown.

Marine & Offshore

Navigation electronics, generator set mounts, deck equipment exposed to salt spray and green water.

HVAC & Refrigeration

Chiller mounts, cooling tower fan isolators, compressor skids in condensing unit enclosures.

Need a Corrosion-Proof Vibration Solution?

Request a quote, material compliance certificate, or evaluation sample. WNRLN delivers factory-direct worldwide.

📧 Contact our technical sales team—specify JGX-1598D-428B for pricing and lead time.
