Washing Machine Vibration Isolators Wire Mount

Washing Machine Vibration Isolators Wire Mount

washing machine vibration isolators

vibration isolator wire mount

wire mount vibration isolators

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Contact Us
Request A Quote
Product Details
Condition:
New
Applicable Industries:
Building Material Shops, Manufacturing Plant, Energy & Mining
Weight (KG):
10
Showroom Location:
None
Video Outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
New Product 2020
Warranty:
1 Year
Core Components:
Bearing
Material:
Aluminum Or Stainless Steel
Application:
Compressor, Energy, Rail
Port:
Xi'an Or Specified
Highlight:

washing machine vibration isolators

,

vibration isolator wire mount

,

wire mount vibration isolators

Payment & Shipping Terms
Price
$410.00 - $560.00/pieces
Packaging Details
Standard export packing or as per customers' requirements.
Supply Ability
1000 Piece/Pieces per Month
Product Description

Machine Vibration Shock Control Compressor Energy Rail Used JGX-2228 Series Wire Rope Shock Isolator

Product Description

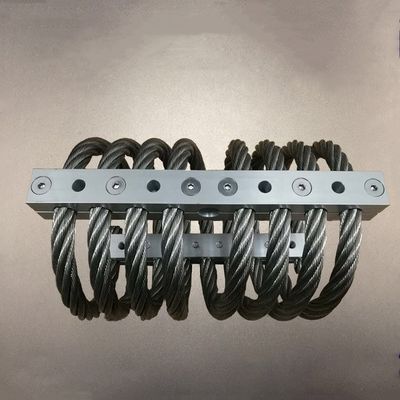

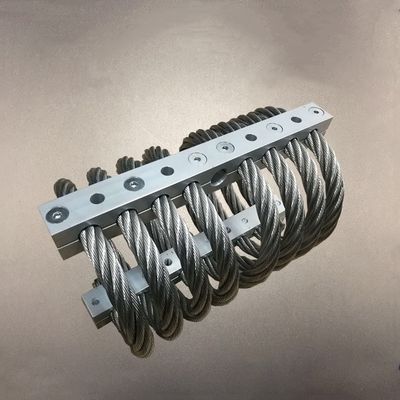

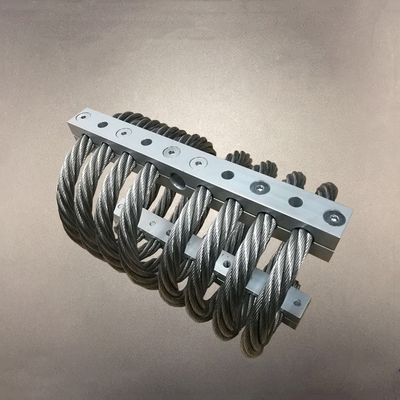

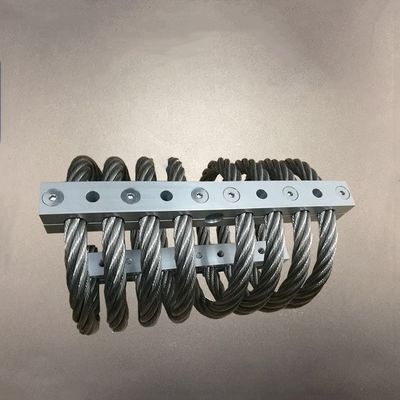

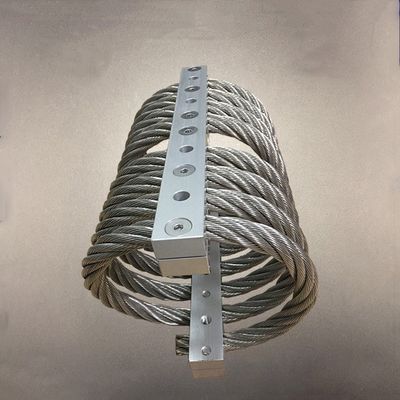

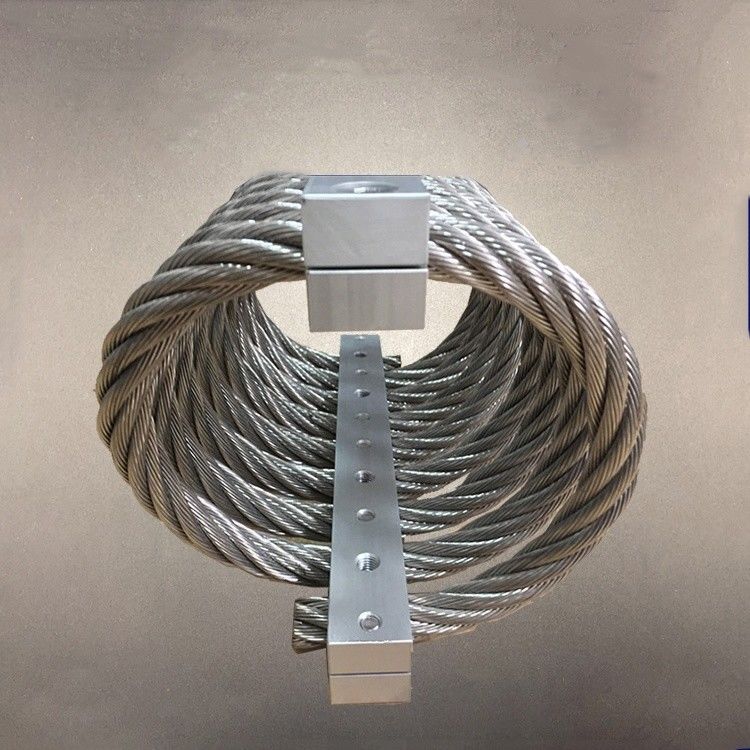

Xi'an Hoan's JGX-2228 series compact wire rope isolators are made of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.



The max static load of the JGX-2228 series cable isolators is from 380kg to 1250kg, which can supply the most safe shock vibration for the unique uses.



JGX-2228 series cable isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



Featuring a patented crimping pattern, versatile mounting options and a variety of sizes, the JGX-2228 series compact wire rope isolators can help ensure that your systems can effectively meet performance requirements in commercial, industrial, defense industries, highway and marine transportations.



The compact wire rope isolators are now widely used in the field of armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.



Technical Parameter
  • Model Number Code Ordering of JGX-2228 Series:Washing Machine Vibration Isolators Wire Mount 0
  • Structural Diagram of JGX-2228 Series:Washing Machine Vibration Isolators Wire Mount 1
  • Dimension of JGX-2228 Series:Washing Machine Vibration Isolators Wire Mount 2
  • Mounting Options of JGX-2228 Series:Washing Machine Vibration Isolators Wire Mount 3
  • Compression of JGX-2228 Series:Washing Machine Vibration Isolators Wire Mount 4
  • 45° Compression of JGX-2228 Series:Washing Machine Vibration Isolators Wire Mount 5
  • Shear/Roll of JGX-2228 Series:Washing Machine Vibration Isolators Wire Mount 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Washing Machine Vibration Isolators Wire Mount 7



Washing Machine Vibration Isolators Wire Mount 8



Washing Machine Vibration Isolators Wire Mount 9



Washing Machine Vibration Isolators Wire Mount 10



Washing Machine Vibration Isolators Wire Mount 11



Washing Machine Vibration Isolators Wire Mount 12

Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
