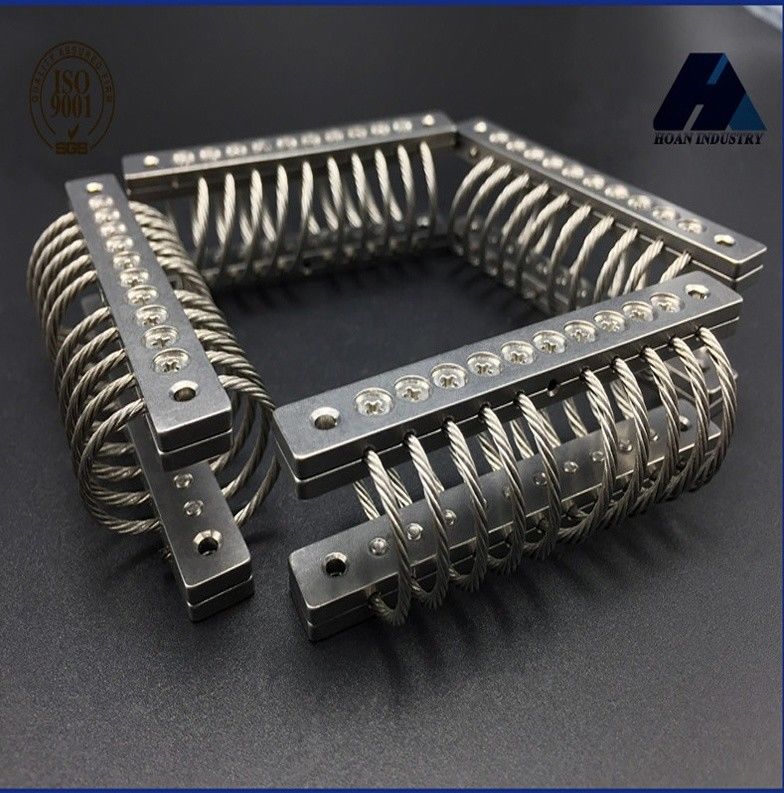

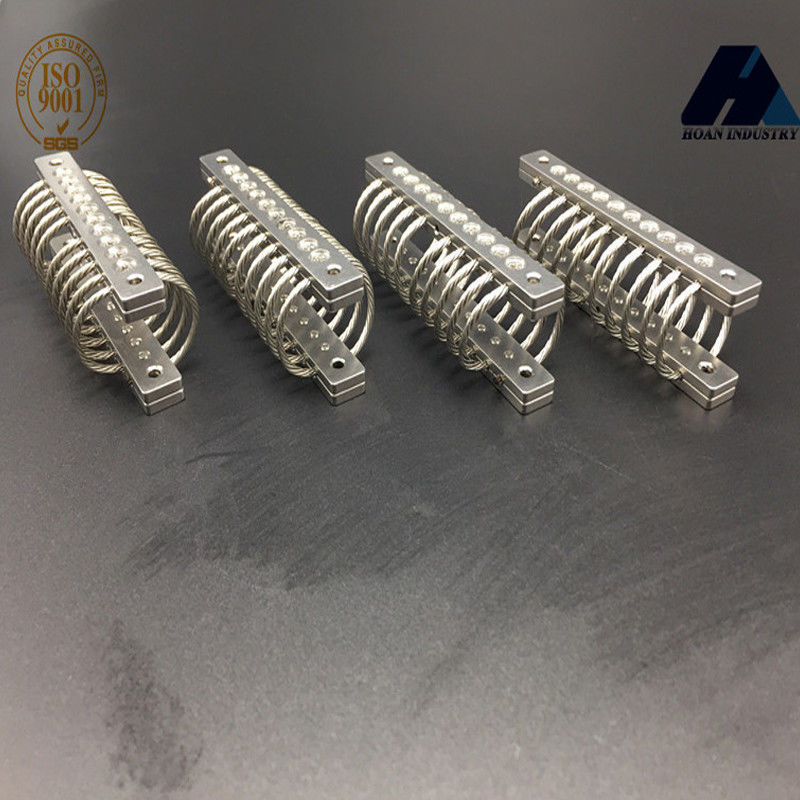

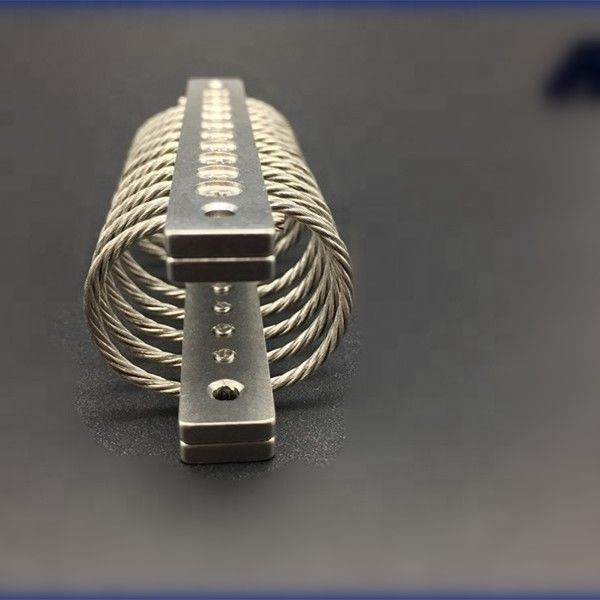

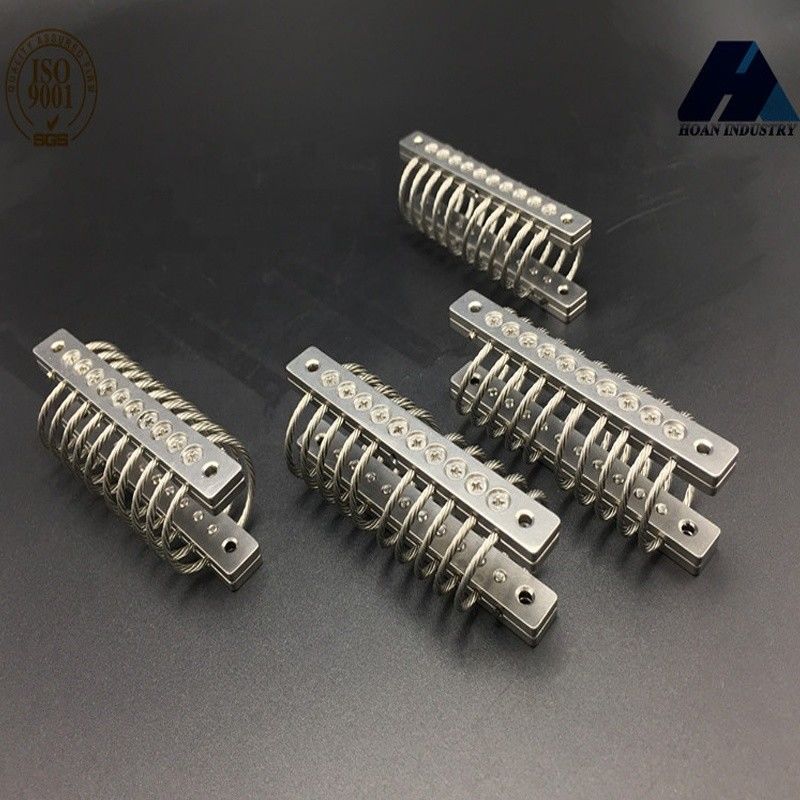

Damping Cable Vibration Isolators For Generator

Wire rope shock isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope shock isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

The JGX-0160D-2.2A wire rope isolator is the kind type isolators from the family JGX-0160 series. The stainless steel cables and retaining bars of the JGX-0160D-2.2A provides amazing vibration isolation any time in use.

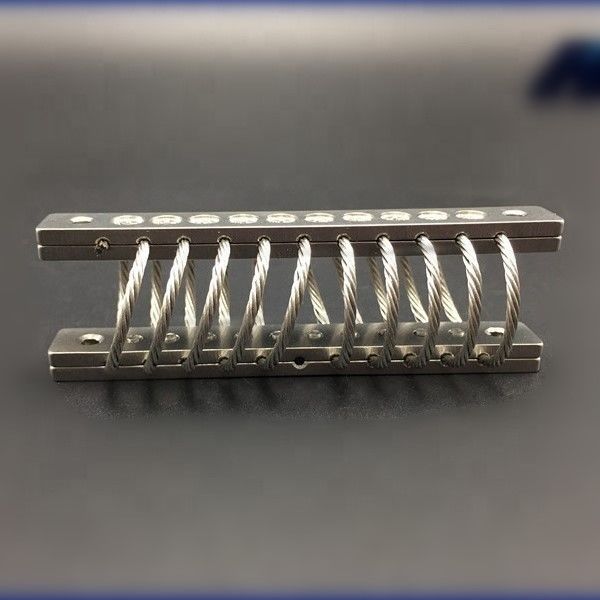

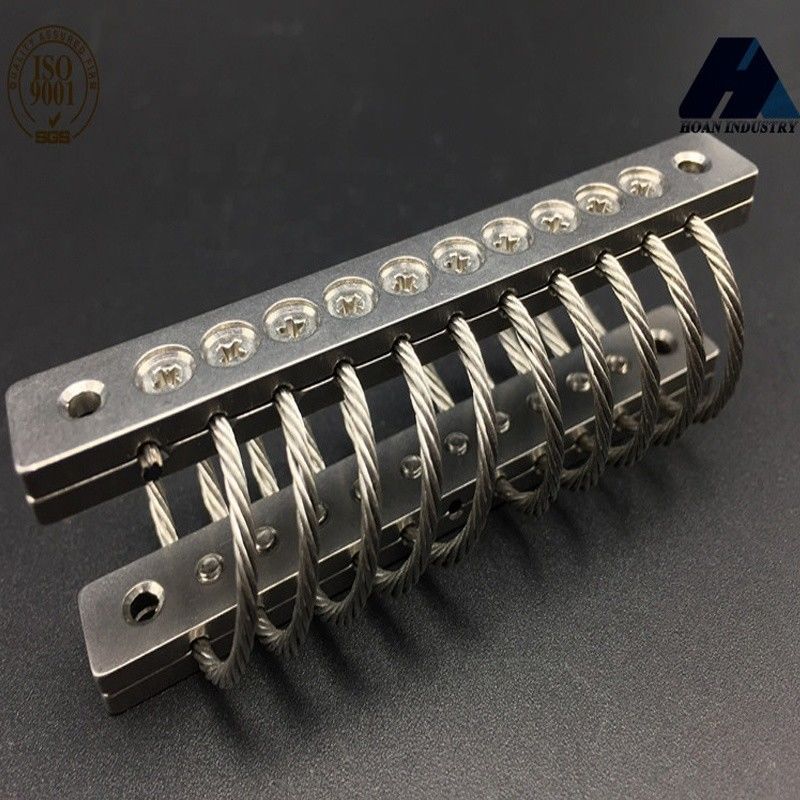

JGX-0160D-2.2A is the new designed 10 loops 1.6mm diameter isolators with max static load of 2.2kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

The wire rope shock isolators are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

• Model Number Code Ordering of JGX-0160D-2.2A:
• Structural Diagram of JGX-0160D-2.2A:
• Dimension of JGX-0160D-2.2A:
• Mounting Options of JGX-0160D-2.2A:
• Compression of JGX-0160D-2.2A:
• 45° Compression of JGX-0160D-2.2A:
• Shear/Roll of JGX-0160D-2.2A:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Rope Isolators *

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.

Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.

Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.

Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
