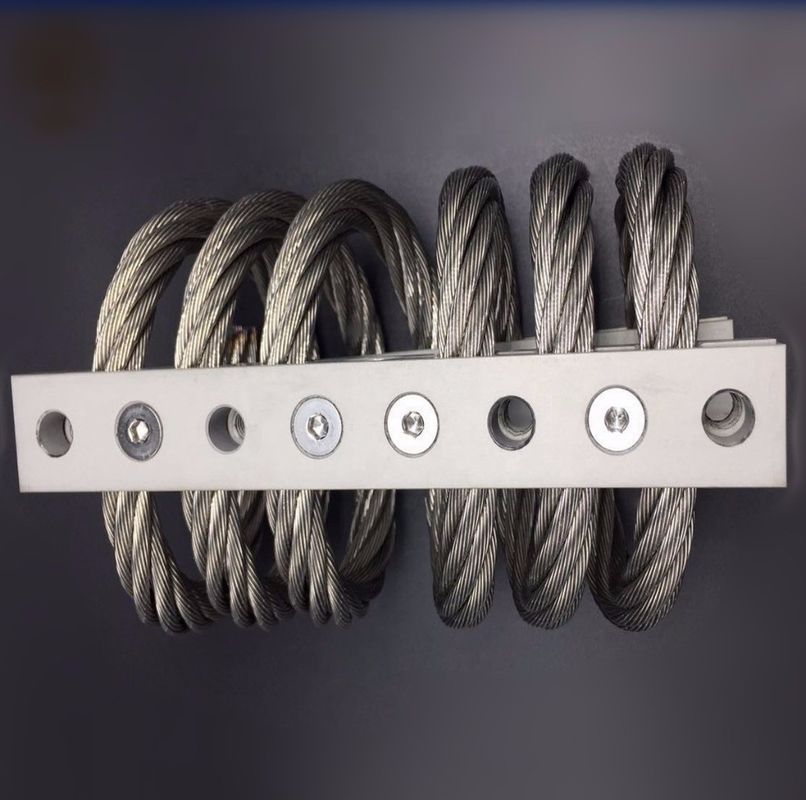

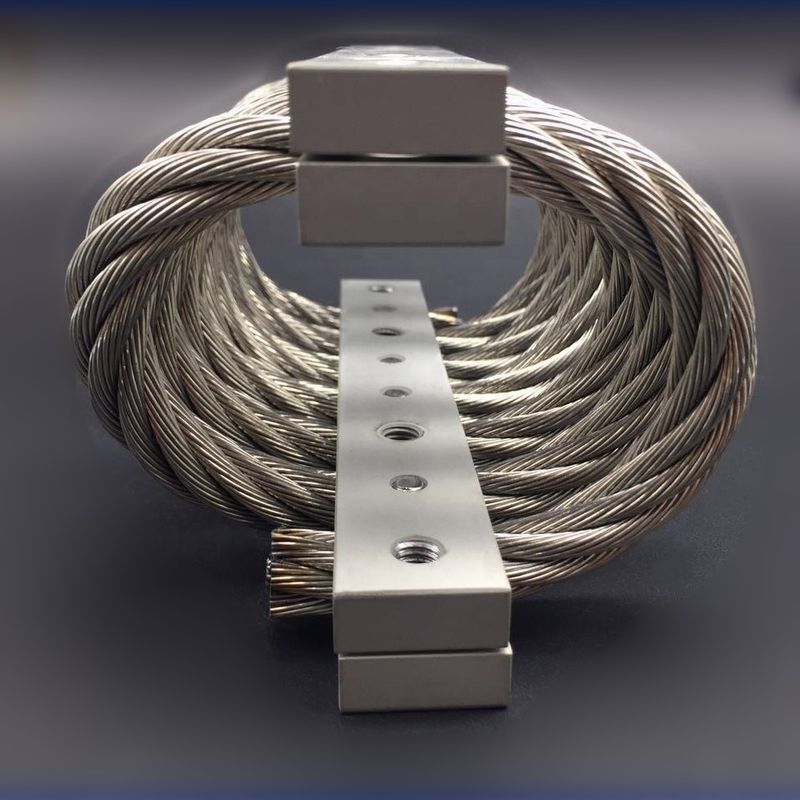

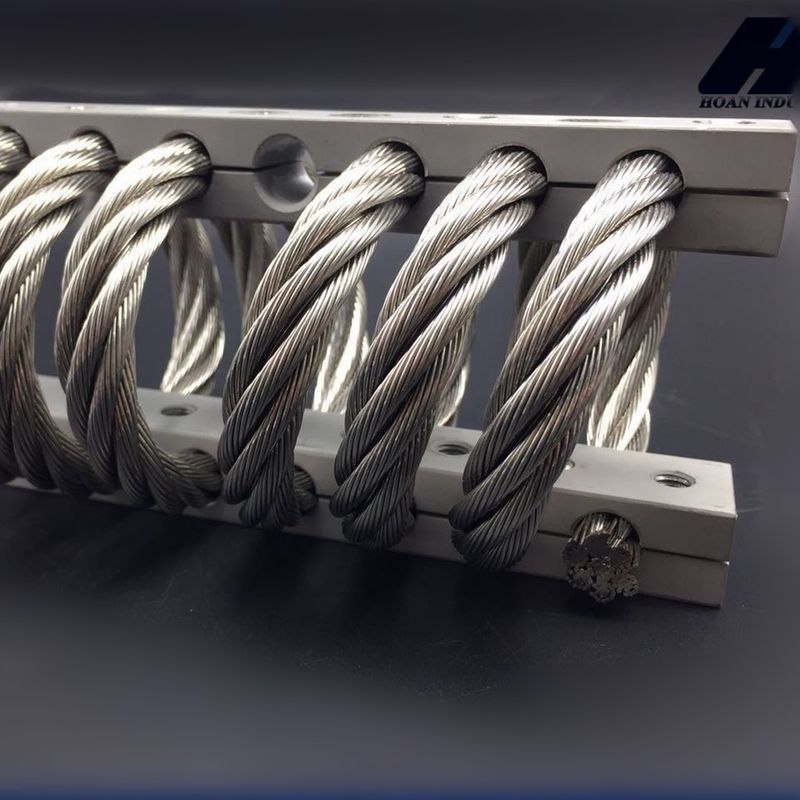

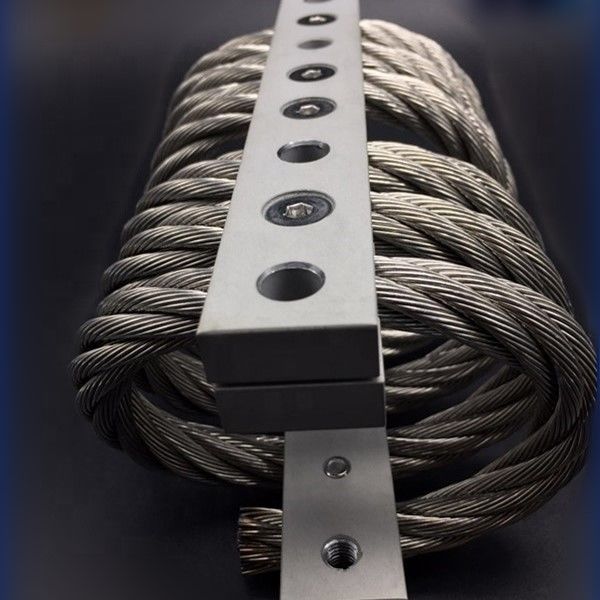

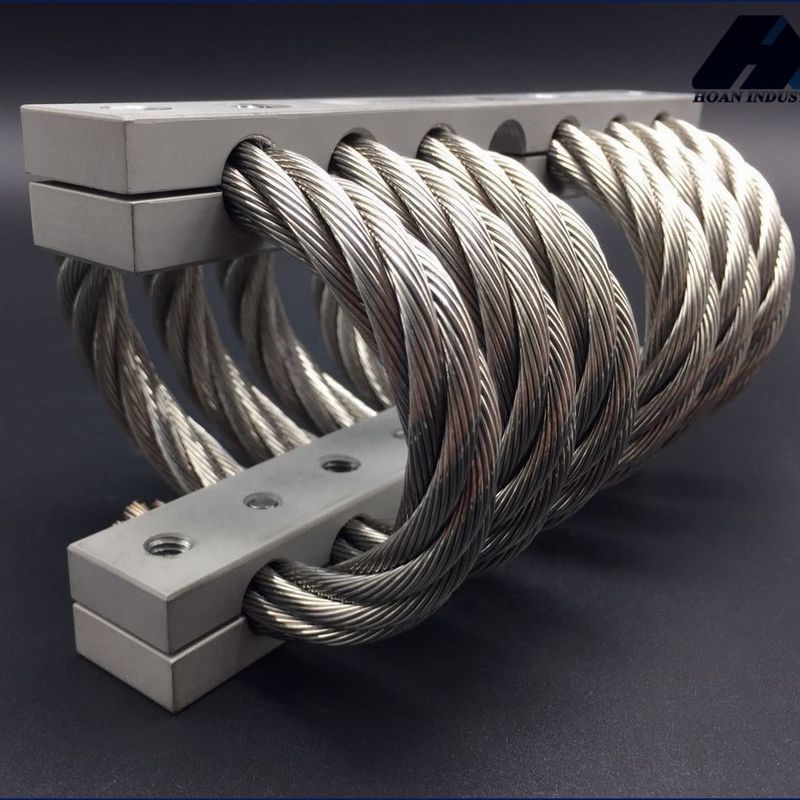

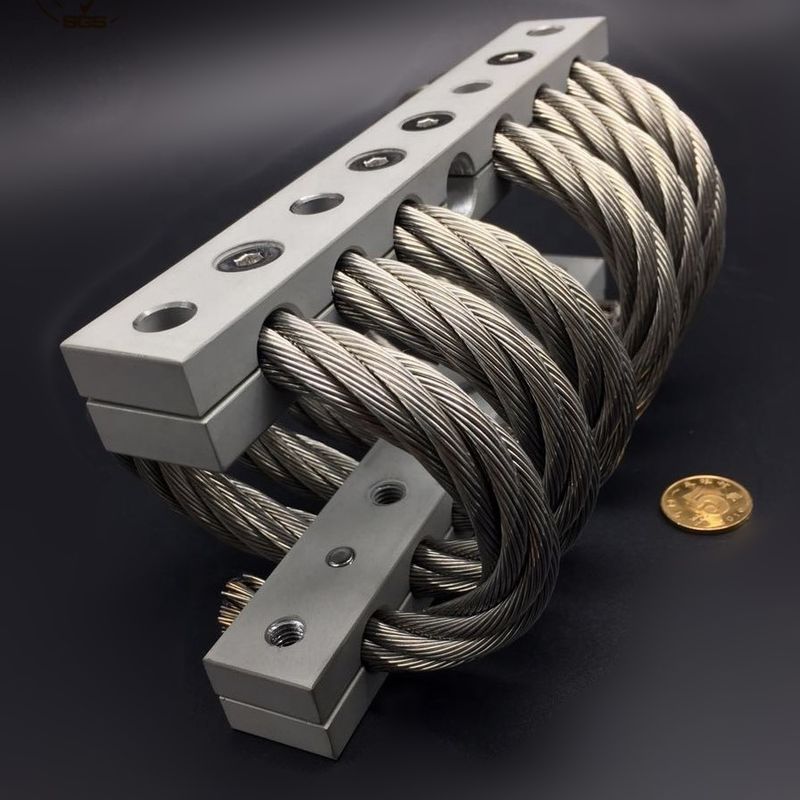

Universal Wire Rope Isolator Anti-Vibration Mount ISO9001
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Model Number: JGX-0956D-75A
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $99.52/pieces 4-199 pieces
Contact Now
Detailed Product Description
Warranty: 1 Year After-sale Service: Online Technical Support
Project Solution Capability: Total Solution For Projects Application: Outdoor, Industry, Energy, Land Transportation
Design Style: Industrial Material: Stainless Steel Or Aluminum
Certificate: ISO9001:2015
Highlight:

Universal wire rope isolator

,

Universal anti-vibration mount

,

anti-vibration mount ISO9001

Mechanical Parts Shock Vibration Insulation Land Transportation Used JGX-0956D-75A Stainless Steel Wire Rope Isolator

Product Description



The JGX-0956D-75A wire rope isolator is another kind type isolators which are included in the family JGX-0956 series. The stainless steel cables and retaining bars of the JGX-0956D-75A provides amazing vibration isolation any time in use.



JGX-0956D-75A is the new designed 6 loops 9.5mm diameter model with max static load of 75kg, especially used in any instruments or systems for noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.



The JGX-0956D-75A wire rope isolators are now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 0
  • Structural Diagram of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 1
  • Dimension of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 2
  • Mounting Options of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 3
  • Compression of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 4
  • 45° Compression of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 5
  • Shear/Roll of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 7



Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 8



Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 9



Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 10



Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 11



Universal Wire Rope Isolator Anti-Vibration Mount ISO9001 12

Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
