Aluminum Wire Rope Isolator For Camera Machinery Energy Parts Compressor Aerospace

The JGX-1598D-515B wire rope isolator is the kind type isolators from the family JGX-1598 series. The stainless steel cables and retaining bars of the JGX-1598D-515B provides amazing vibration isolation any time in use.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

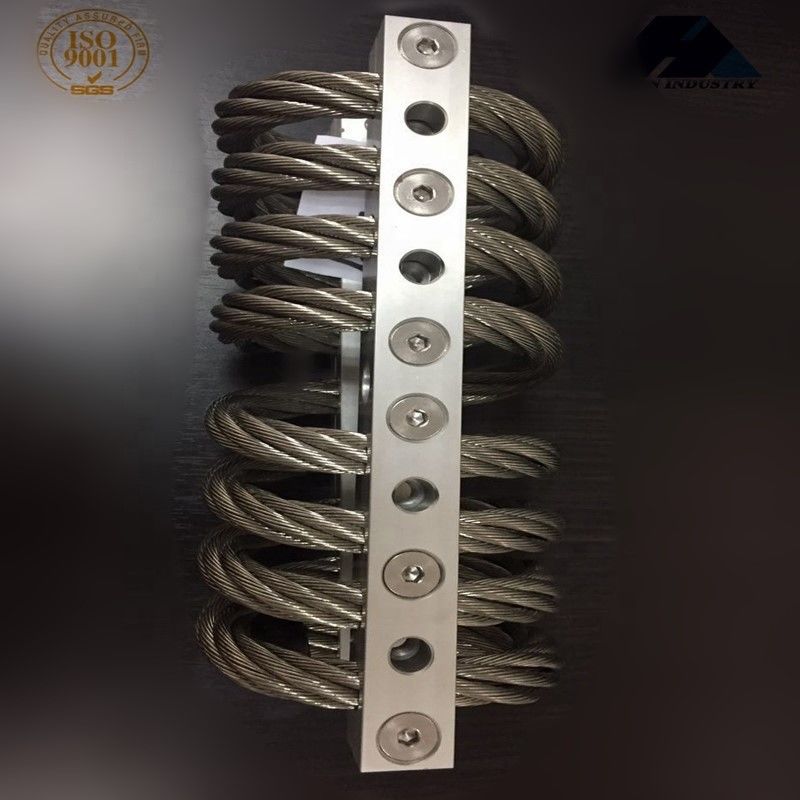

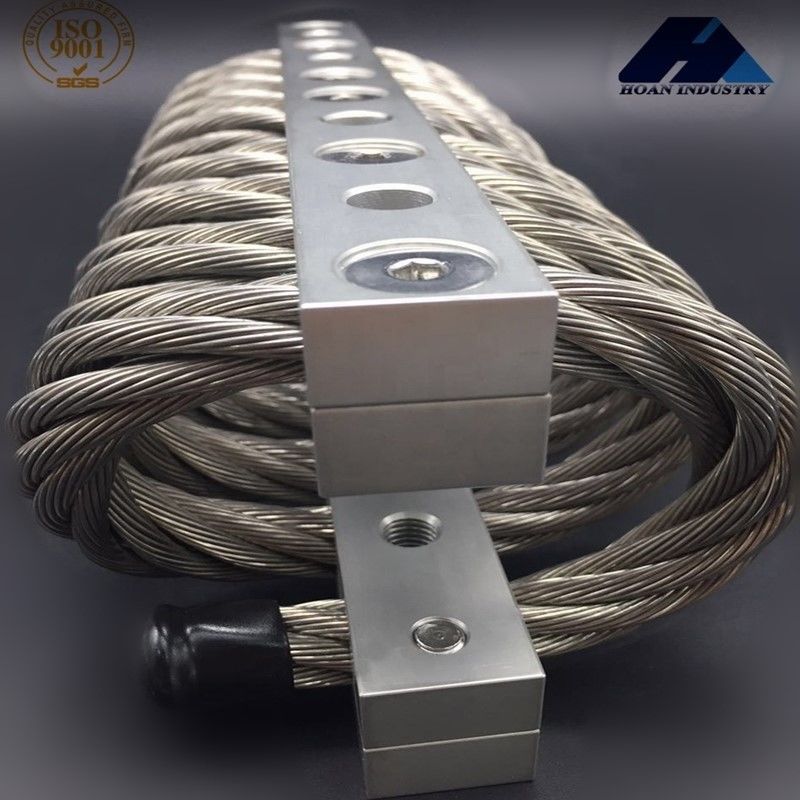

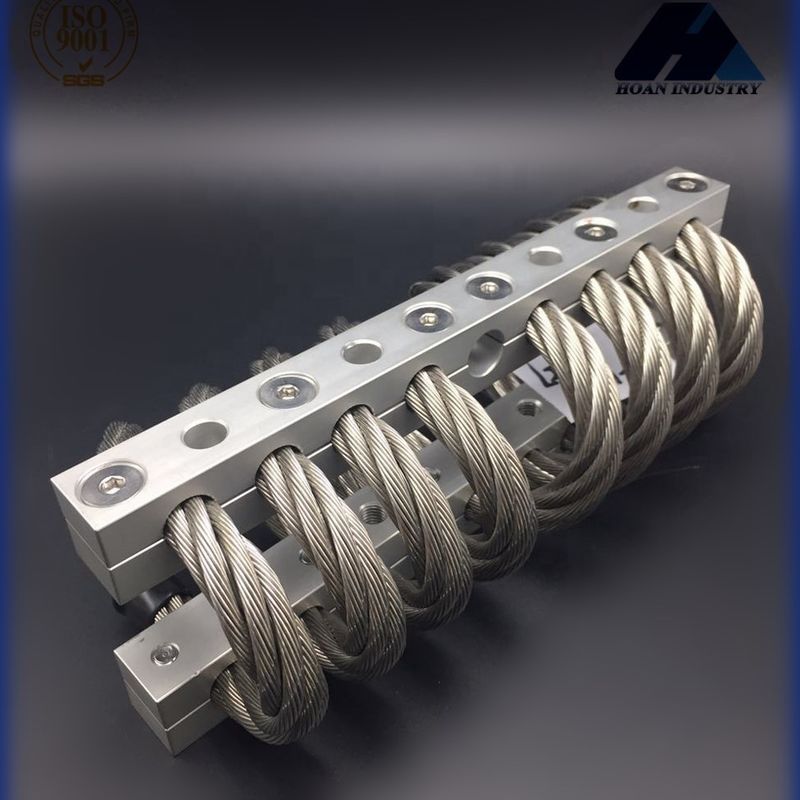

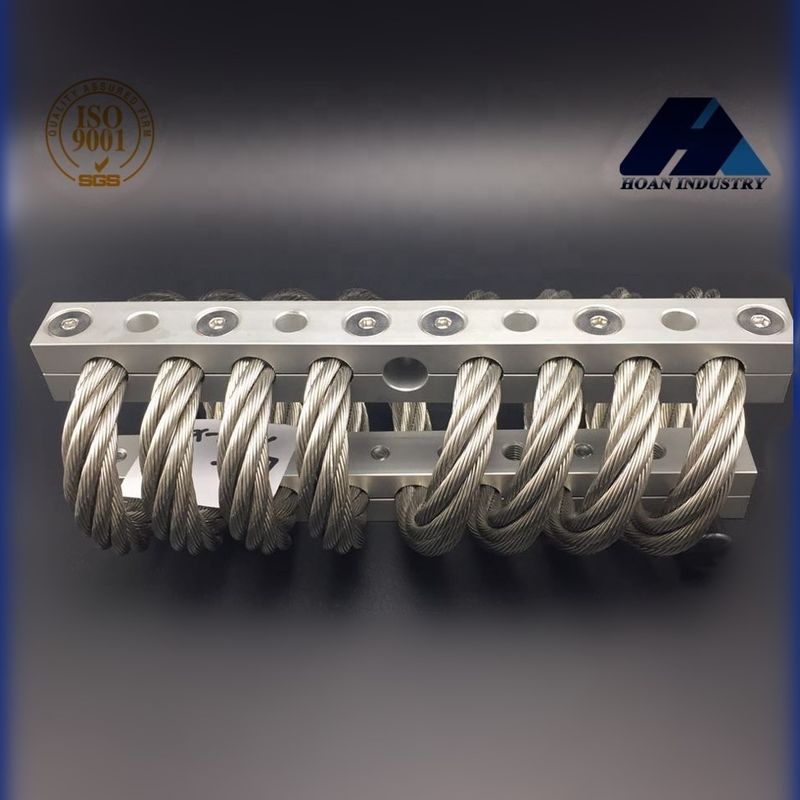

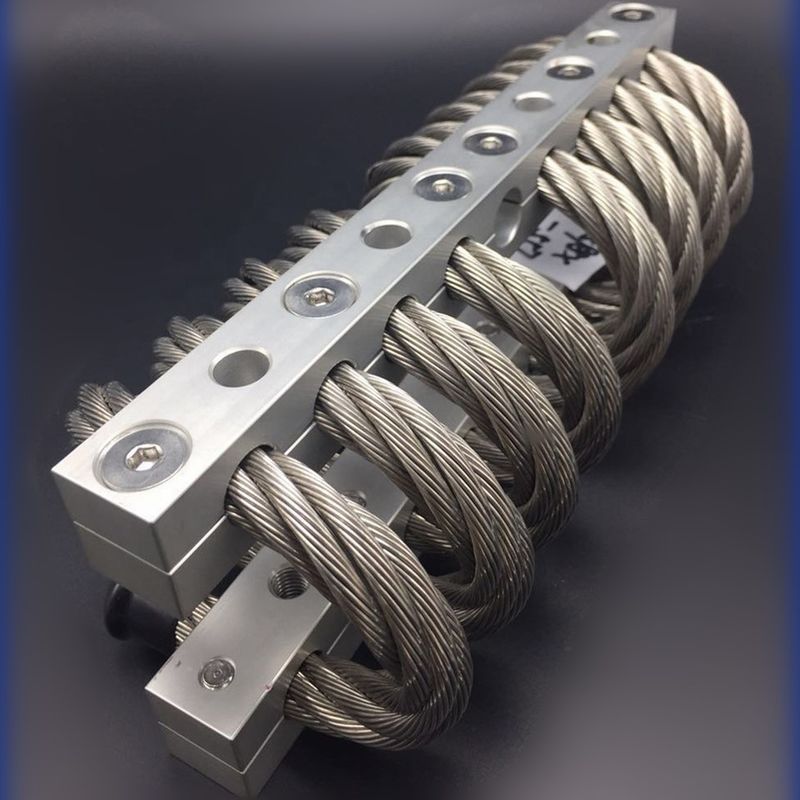

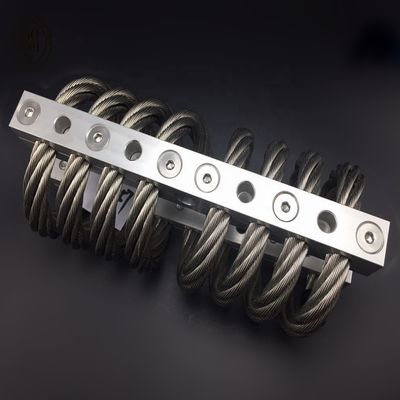

JGX-1598D-515B is the new designed 8 loops 15.9mm diameter wire rope isolators with max static load of 515kg, especially used in any instruments or systems for mechanical noise attenuation.

With stainless steel or aluminum material, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.

The JGX-1598D-515B wire rope isolators are used widely in the field of armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

• Model Number Code Ordering of JGX-1598D-515B:
• Structural Diagram of JGX-1598D-515B:
• Dimension of JGX-1598D-515B:
• Mounting Options of JGX-1598D-515B:
• Compression of JGX-1598D-515B:
• 45° Compression of JGX-1598D-515B:
• Shear/Roll of JGX-1598D-515B:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Rope Isolators *
