Wire Rope Shock Mounts For Electronic Equipment Vibration Isolators Antenna

Wire Rope Shock Mounts For Electronic Equipment Vibration Isolators Antenna

shock mounts for electronic equipment

wire rope shock mounts

Shock Mounts vibration isolators

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Contact Us
Request A Quote
Product Details
Condition:
New
Applicable Industries:
Energy & Mining
Weight (KG):
13.5
Showroom Location:
None
Video Outgoing-inspection:
Not Available
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty:
1 Year
Core Components:
PLC, Gear
Material:
Aluminum Or Stainless Steel
Application:
Missile, Launcher, Satellite, Antenna
Highlight:

shock mounts for electronic equipment

,

wire rope shock mounts

,

Shock Mounts vibration isolators

Payment & Shipping Terms
Minimum Order Quantity
4 pieces
Price
$384.00/pieces 4-199 pieces
Product Description

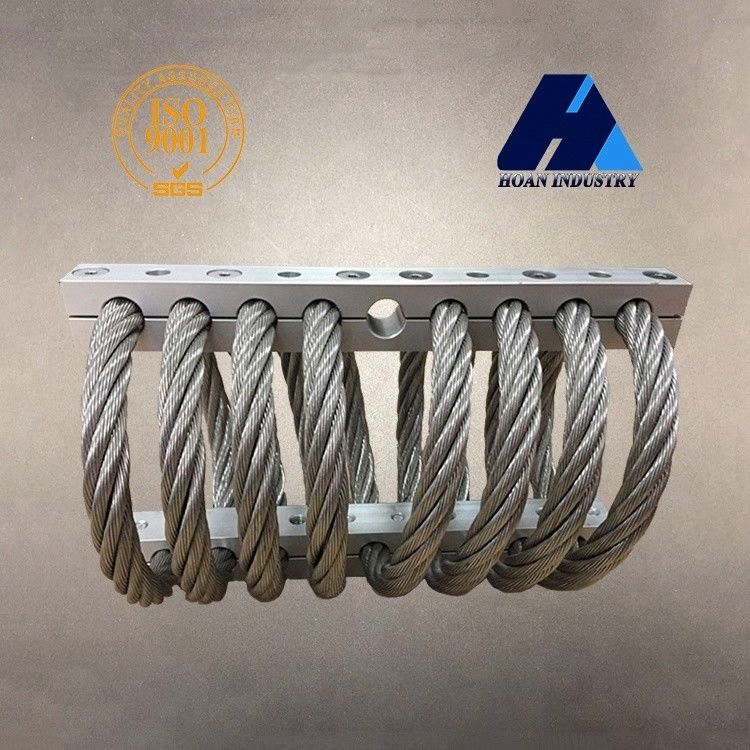

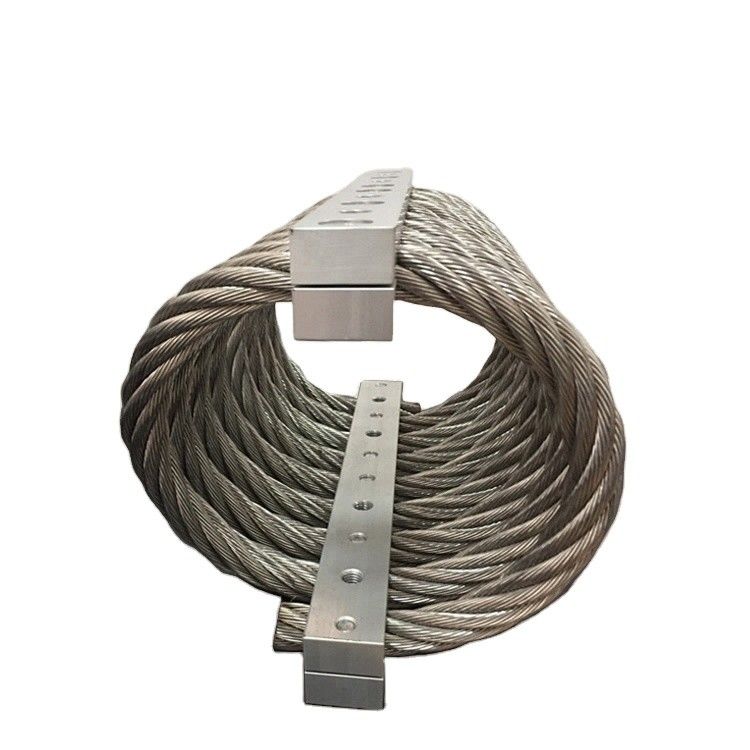

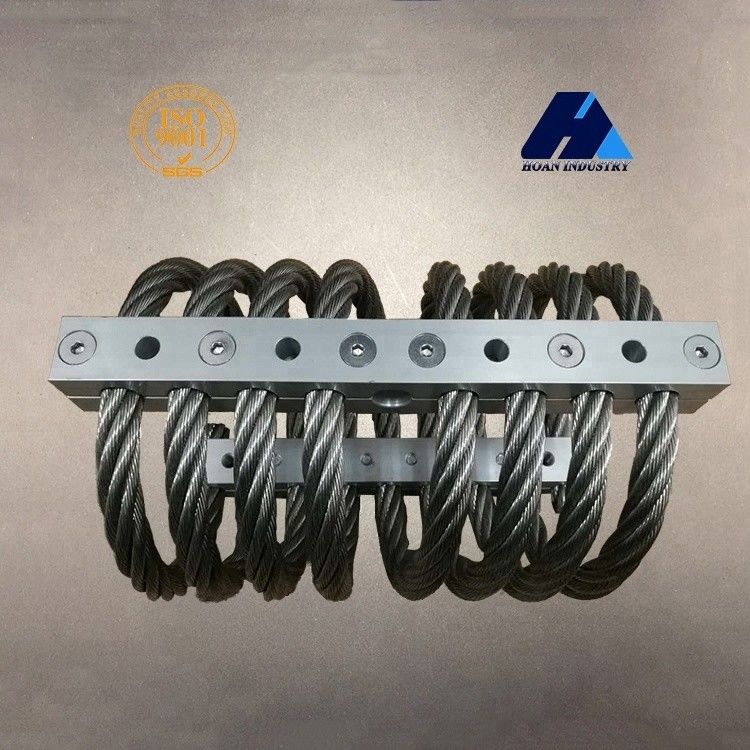

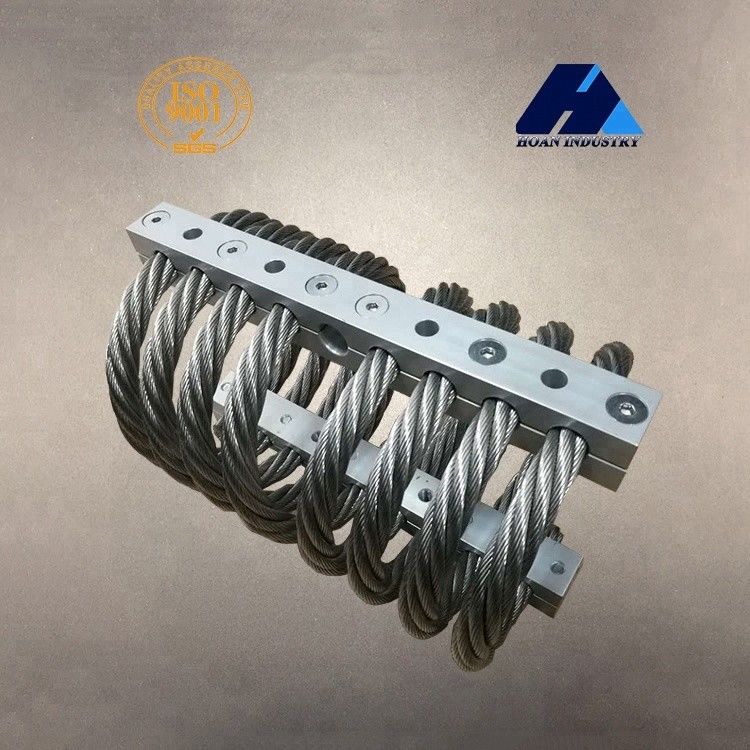

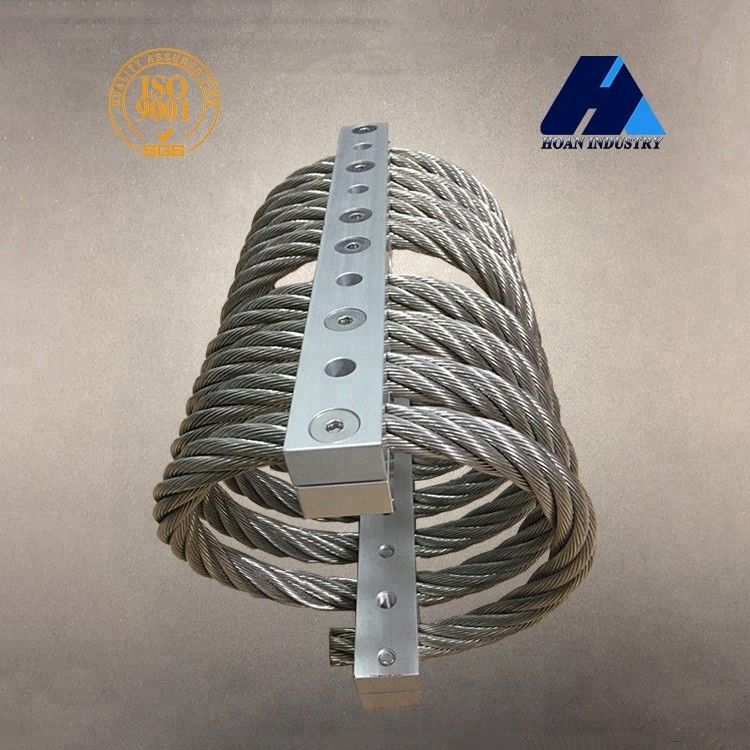

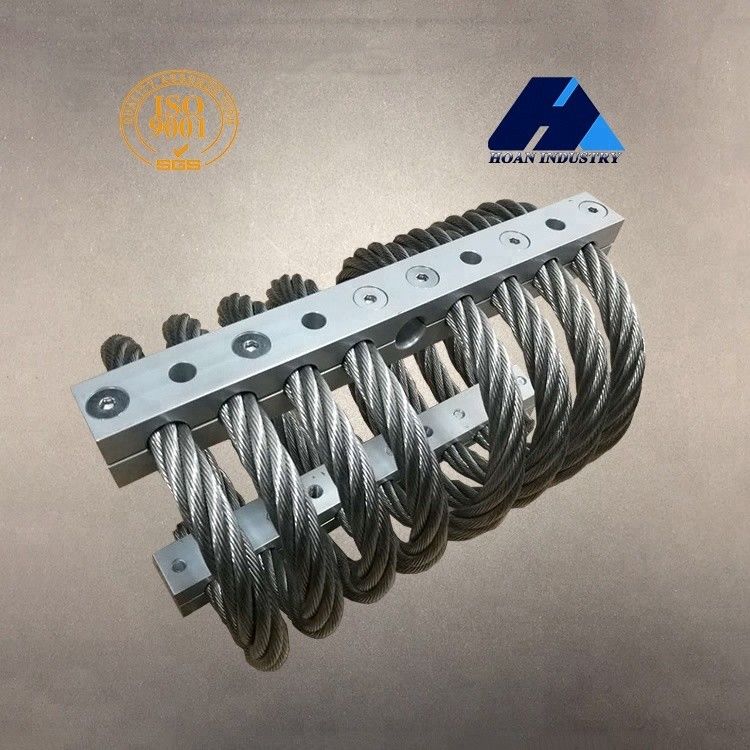

Missile Launcher Satellite Antenna Shock Vibration Insulation JGX-2228D-960B Aluminum Wire Rope Isolator

Product Description



The JGX-2228D-960B wire rope isolator is the kind type isolators from the family JGX-2228 series. The stainless steel cables and retaining bars provides amazing vibration isolation any time in use.



JGX-2228D-960B is the new designed 8 loops 22.2mm diameter wire rope isolators with max static load of 960kg, especially used in any big or heavy military industy instruments or systems for mechanical noise attenuation.



The JGX-2228D-960B wire rope isolators are now widely used in the field of shipping-aviation-space flight and vehicle etc.  Also, this model can be used in the required working conditions especially for huge heavy equipments or the related systems.



The wire rope isolators are now widely used in the field of armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-2228D-960B:Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 0
  • Structural Diagram of JGX-2228D-960B:Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 1
  • Dimension of JGX-2228D-960B:Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 2
  • Mounting Options of JGX-2228D-960B:Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 3
  • Compression of JGX-2228D-960B:Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 4
  • 45° Compression of JGX-2228D-960B:Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 5
  • Shear/Roll of JGX-2228D-960B:Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 7



Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 8



Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 9



Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 10



Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 11



Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 12



Wire Rope Shock Mounts For Electronic Equipment  Vibration Isolators  Antenna 13
