Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting

Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting

  • Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting
  • Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting
  • Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting
  • Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting
  • Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting
  • Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting
Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Model Number: JGX-2228D-1250B
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $368.00/pieces 4-199 pieces
Contact Now
Detailed Product Description
Warranty: 1 Year After-sale Service: Online Technical Support
Project Solution Capability: Total Solution For Projects Application: Outdoor, Shipbuilding, Rack, Cabinet, Energy, Rail
Design Style: Industrial Material: Aluminum Or Stainless Steel
Certificate: ISO9001:2015
Highlight:

wire rope isolator design

,

wire rope isolator mounting

,

Stainless Steel Wire Rope Isolator

Shipbuilding Rack Cabinet Energy Vibration Shock Insulation JGX-2228D-1250B Stainless Steel Aluminum Wire Rope Isolator

Product Description

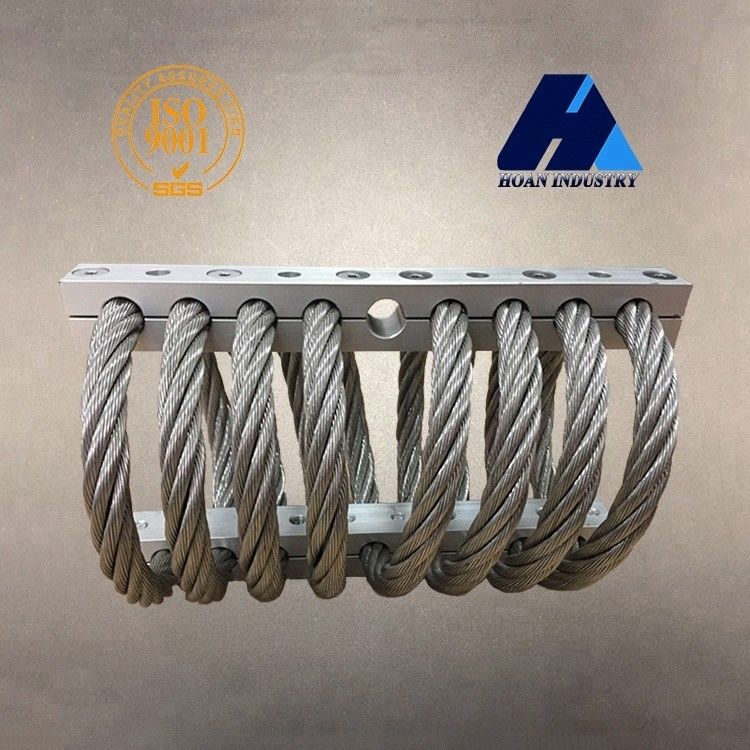

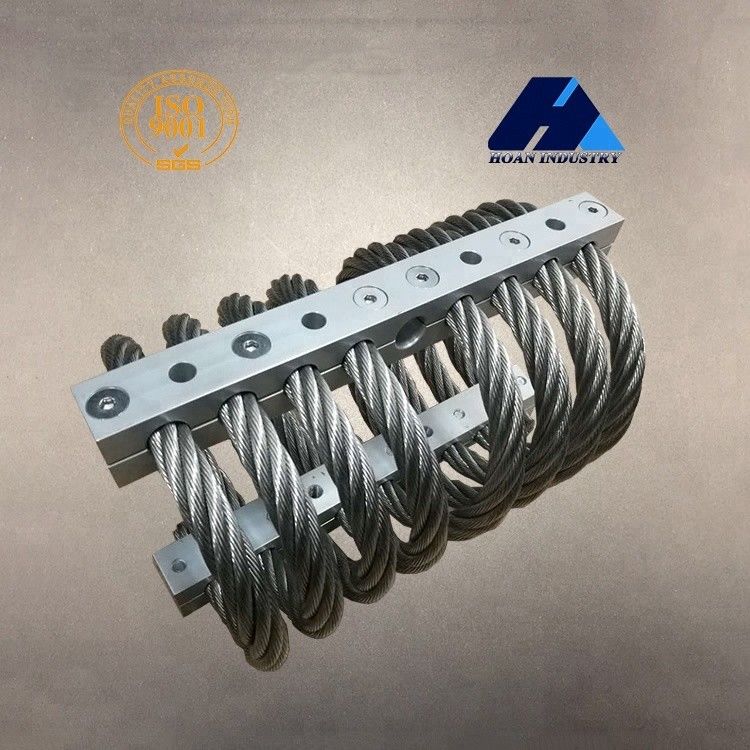

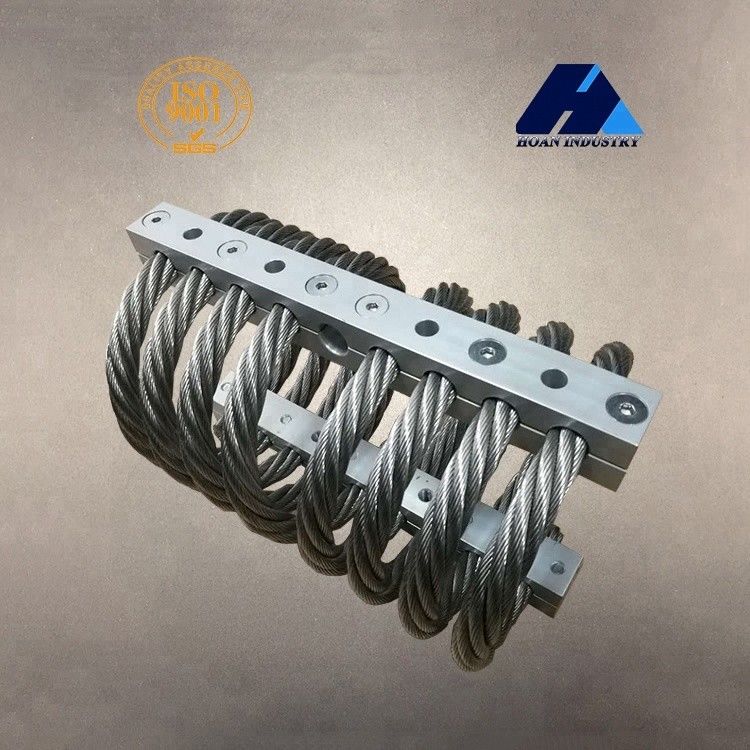

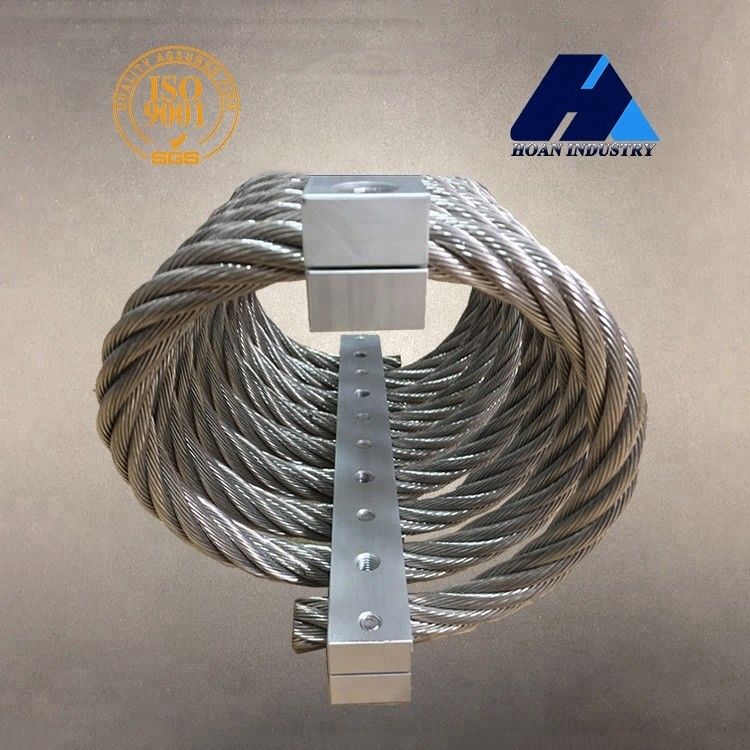

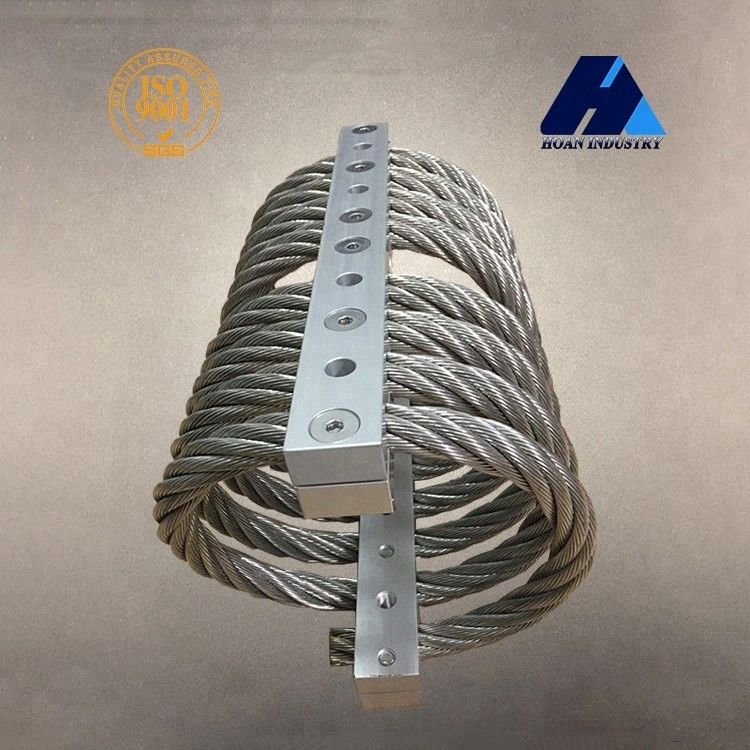

The JGX-2228D-1250B wire rope isolator is the kind type isolators from the family JGX-2228 series. The stainless steel cables and retaining bars provides amazing vibration isolation any time in use.



JGX-2228D-1250B is the new designed 8 loops 22.2mm diameter wire rope isolators with max static load of 1250kg, especially used in any instruments or systems for mechanical noise attenuation.



With stainless steel or alloy material, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.



The JGX-2228D-1250B wire rope isolators are now widely used in the field of shipping-aviation-space flight and vehicle etc.  Also, this model can be used in the required working conditions especially for huge heavy equipments or the related systems.



The wire rope isolators are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-2228D-1250B:Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 0
  • Structural Diagram of JGX-2228D-1250B:Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 1
  • Dimension of JGX-2228D-1250B:Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 2
  • Mounting Options of JGX-2228D-1250B:Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 3
  • Compression of JGX-2228D-1250B:Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 4
  • 45° Compression of JGX-2228D-1250B:Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 5
  • Shear/Roll of JGX-2228D-1250B:Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *



Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 7



Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 8



Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 9



Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 10



Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 11



Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 12



Stainless Steel Wire Rope Isolator Design Vibration Shock Insulation Mounting 13
