Ceiling Fan Wire Rope Vibration Isolator Damper
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Model Number: JGX-0160D-3.2A
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $23.53/pieces 4-199 pieces
Contact Now
Detailed Product Description
Warranty: 1 Year After-sale Service: Online Technical Support
Project Solution Capability: 3D Model Design Application: Leisure Facilities, Other, Storage & Closet, Laundry, Aeronautics And Space, Seismic Sensor, UAV Camera
Design Style: Industrial Material: Stainless Steel Or Aluminum
Certificate: ISO9001:2015
Highlight:

Vibration Isolator damper

,

ceiling fan vibration isolator

,

ceiling vibration isolator

Aeronautics and Space Seismic Sensor UAV Camera Shock Vibration Insulation JGX-0160D-3.2A Wire Rope Shock Isolator

Product Description

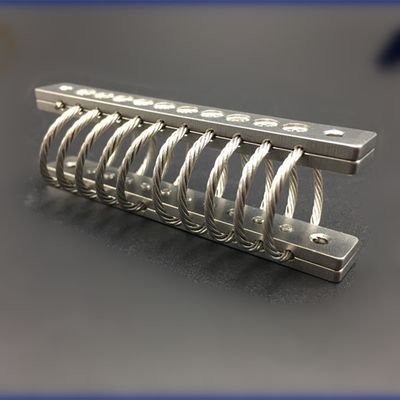

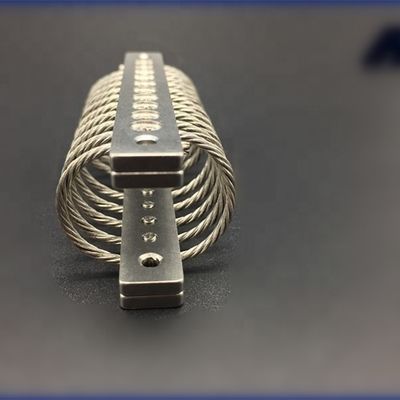

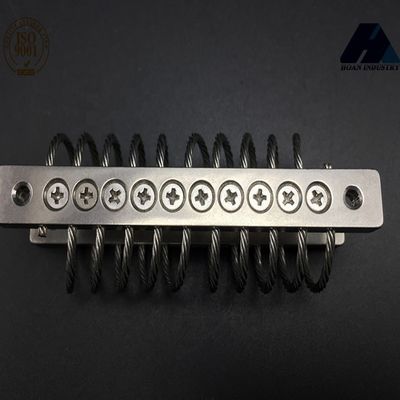

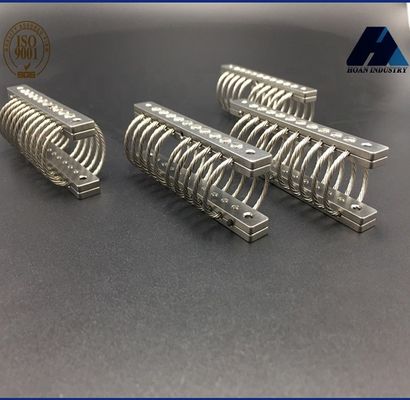

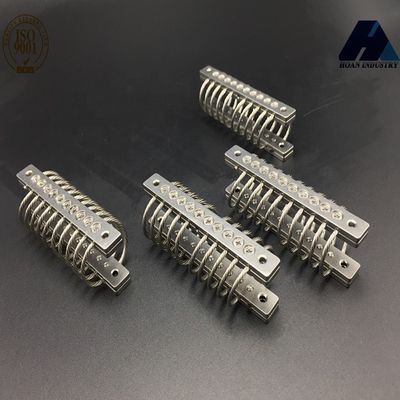

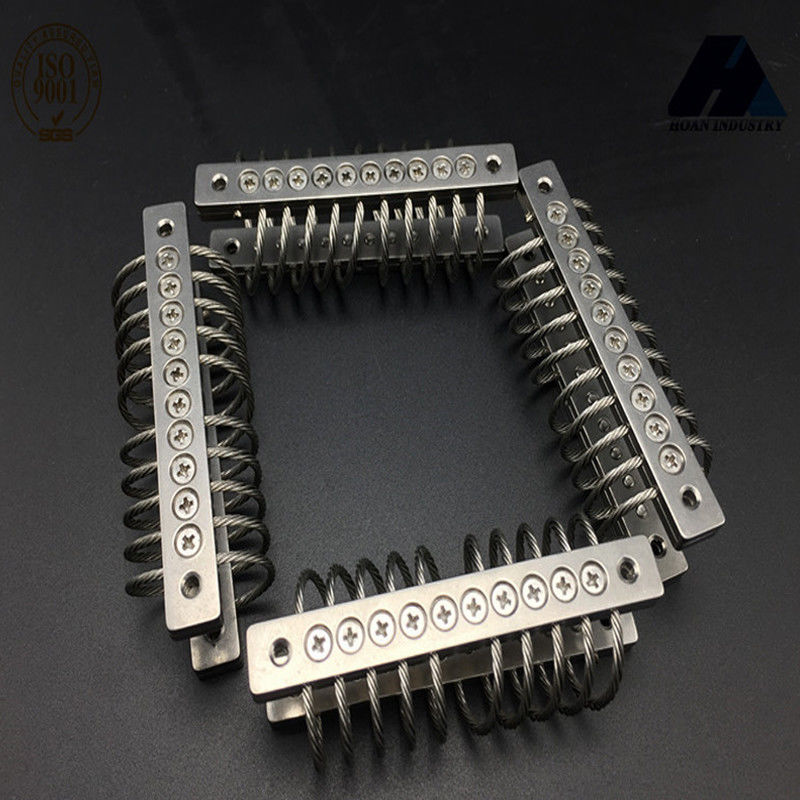

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.



With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope shock isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



JGX-0160D-3.2A is the new designed 1.6mm diameter 10 loops model with max static load of 3.2kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this model has perfect performance of water-proof, anticorrosion as well as durability.



The JGX-0160 series is smaller than the traditional vibration isolators, which can provide better cost-effective, simultaneous shock and vibration attenuation than any other isolators in the market.



The wire rope isolators are now widely used in the field of  vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.



Technical Parameter
  • Model Number Code Ordering of JGX-0160D-3.2A:Ceiling Fan Wire Rope Vibration Isolator Damper 0
  • Structural Diagram of JGX-0160D-3.2A:Ceiling Fan Wire Rope Vibration Isolator Damper 1
  • Dimension of JGX-0160D-3.2A:Ceiling Fan Wire Rope Vibration Isolator Damper 2
  • Mounting Options of JGX-0160D-3.2A:Ceiling Fan Wire Rope Vibration Isolator Damper 3
  • Compression of JGX-0160D-3.2A:Ceiling Fan Wire Rope Vibration Isolator Damper 4
  • 45° Compression of JGX-0160D-3.2A:Ceiling Fan Wire Rope Vibration Isolator Damper 5
  • Shear/Roll of JGX-0160D-3.2A:Ceiling Fan Wire Rope Vibration Isolator Damper 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Shock Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show:

Ceiling Fan Wire Rope Vibration Isolator Damper 7



Ceiling Fan Wire Rope Vibration Isolator Damper 8



Ceiling Fan Wire Rope Vibration Isolator Damper 9



Ceiling Fan Wire Rope Vibration Isolator Damper 10



Ceiling Fan Wire Rope Vibration Isolator Damper 11



Ceiling Fan Wire Rope Vibration Isolator Damper 12



Ceiling Fan Wire Rope Vibration Isolator Damper 13
