Missile Transformer Wire Rope Vibration Damper Engine Stand

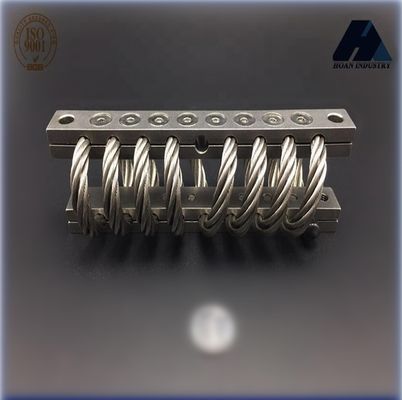

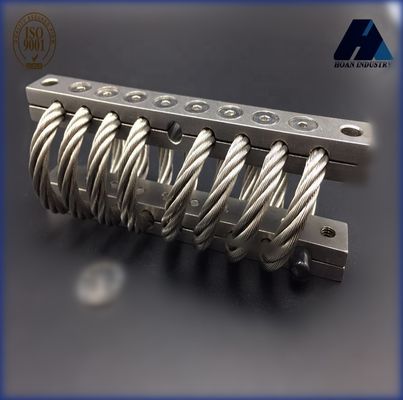

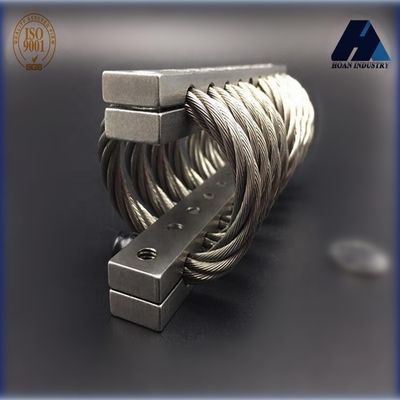

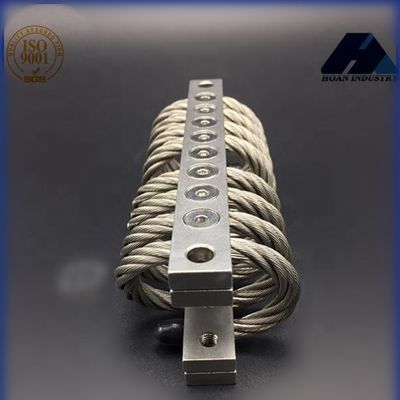

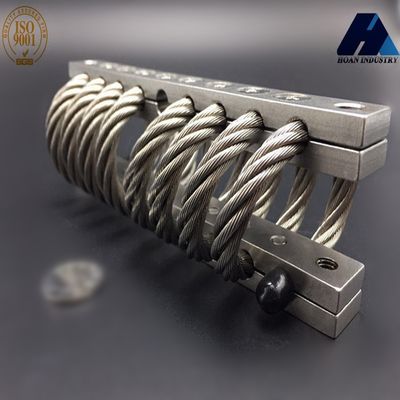

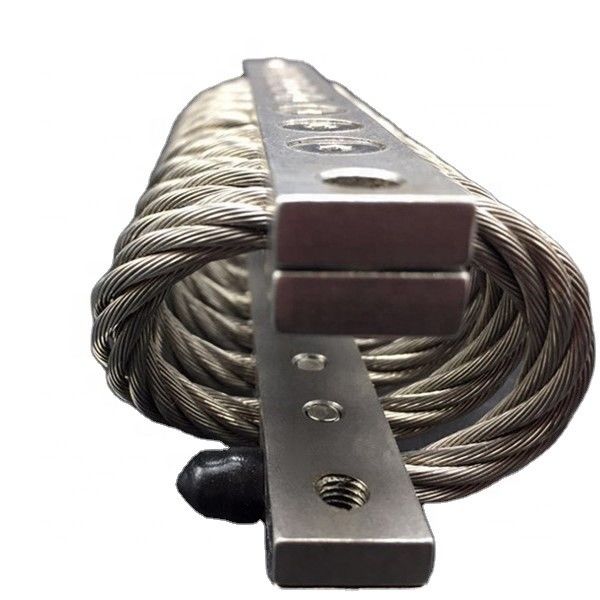

The JGX-0648D-36A wire rope shock isolator is another kind type isolators which are included in the family JGX-0648 series. The stainless steel cables and retaining bars of the JGX-0648D-36A provides amazing vibration isolation any time in use.

JGX-0648D-36A is the new designed 8 loops 6.4mm diameter wire rope isolators with max static load of 36kg, especially used in any instruments or systems for noise attenuation.

With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

The JGX-0648D-36A wire rope isolators are now widely used in the field of shipping-aviation-space flight and vehicle etc. With smaller and lighter sizes and weight, these JGX-0648 isolators have come to be the ideal replacement in people's daily life.

The wire rope shock isolators are used widely in the field of  armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

• Model Number Code Ordering of JGX-0648D-36A:
• Structural Diagram of JGX-0648D-36A:
• Dimension of JGX-0648D-36A:
• Mounting Options of JGX-0648D-36A:
• Compression of JGX-0648D-36A:
• 45° Compression of JGX-0648D-36A:

• Shear/Roll of JGX-0648D-36A:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Rope Shock Isolators *

*  Applications Show *
