Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera

Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera

  • Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera
  • Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera
  • Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera
  • Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera
  • Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera
  • Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera
Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015 Certificate
Model Number: JGX-0320D-13.5A
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $38.00/pieces 4-199 pieces
Contact Now
Detailed Product Description
Material: Stainless Steel Or Aluminum Application: Electric, Cabinet, PC, Hard Drive, Industry, Camera
Highlight:

wire rope isolator for gopro

,

compact wire rope isolators

,

gopro wire rope isolator

Hot Sale Electric Cabinet PC Hard Drive UAV Camera Vibration Shock Control JGX-0320D-13.5A Stainless Steel Wire Isolatio

Product Description

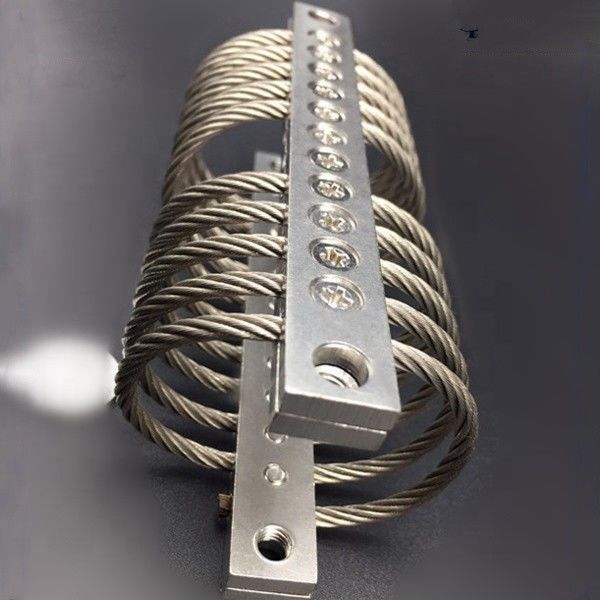

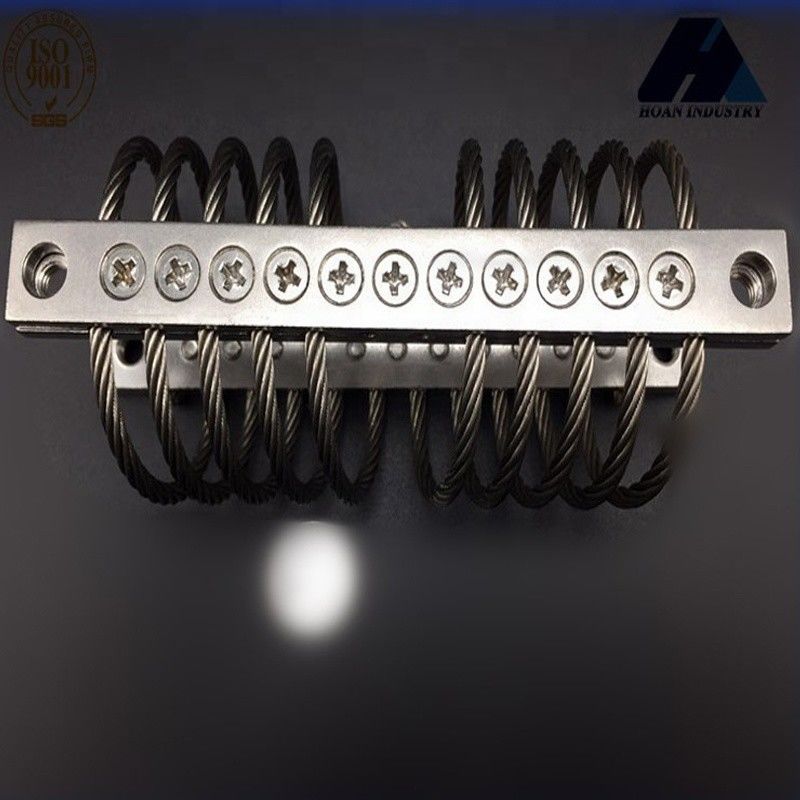

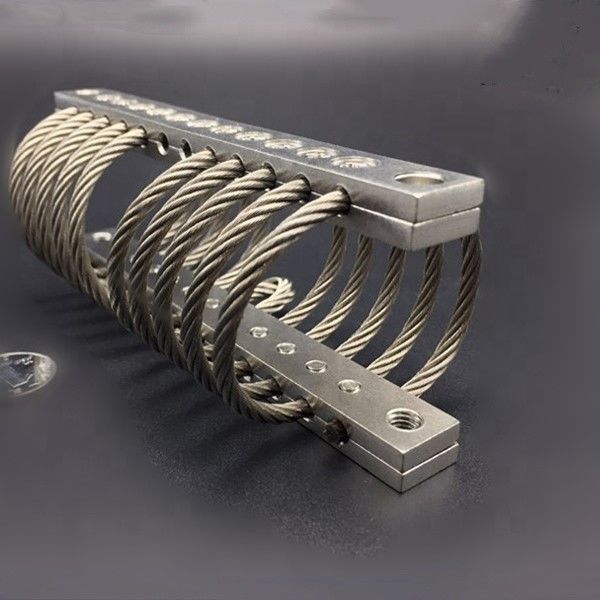

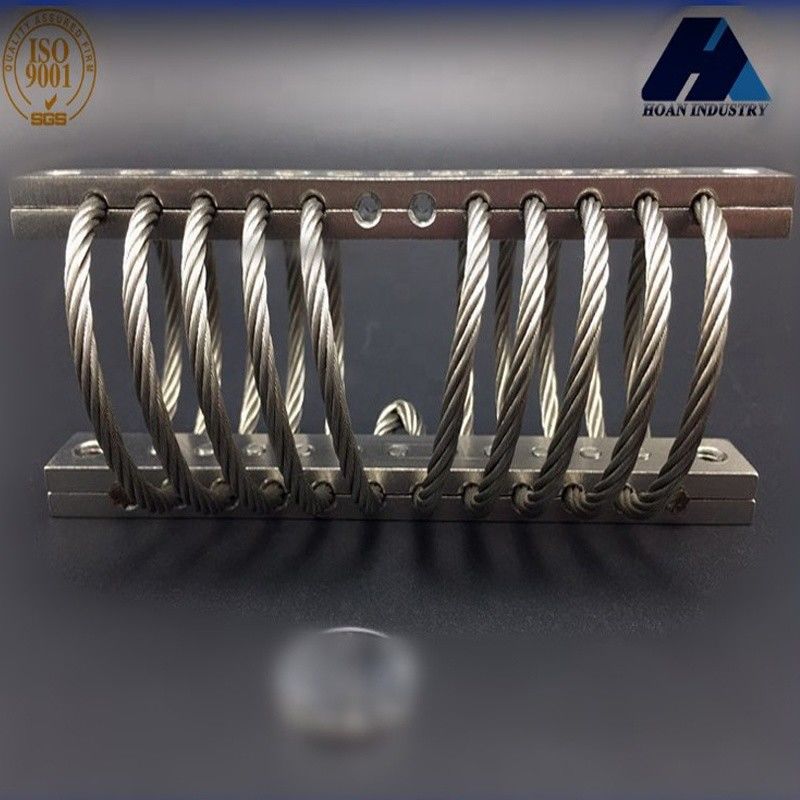

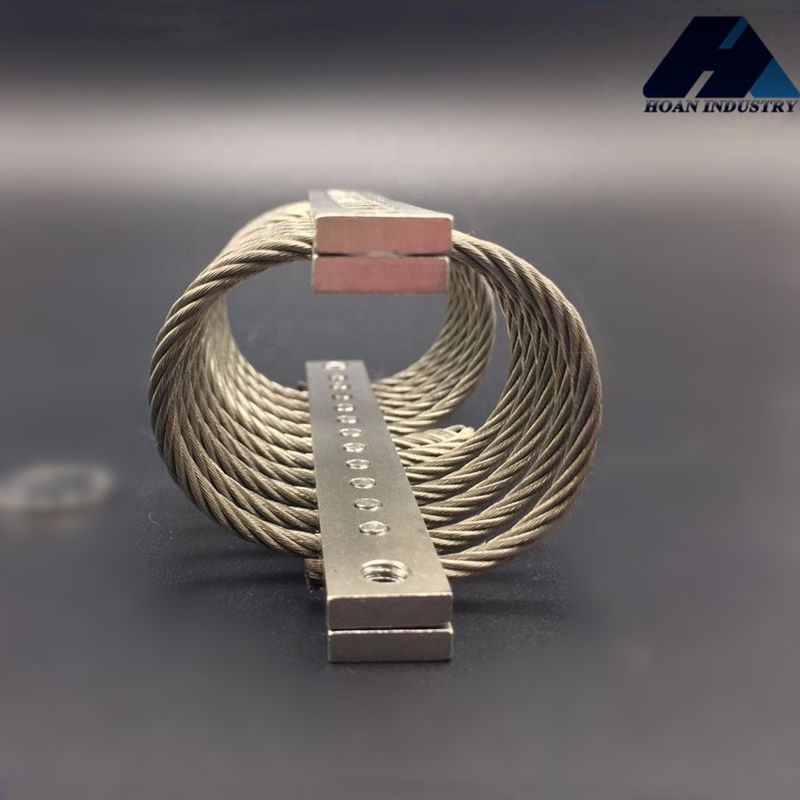

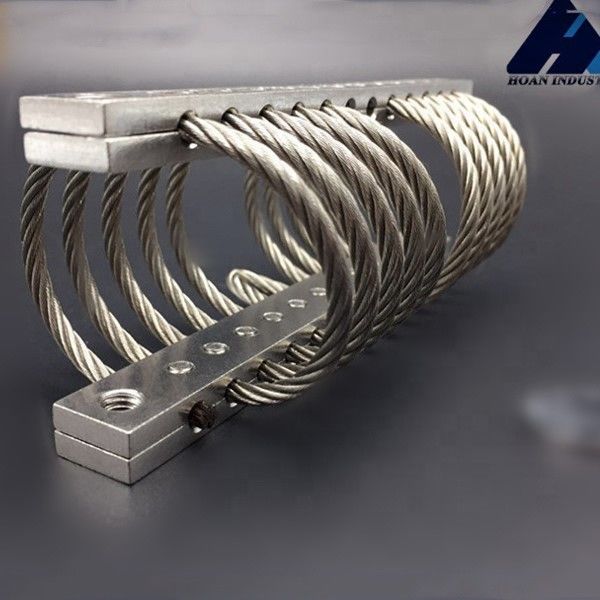

Wire isolation mounts are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.



With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



JGX-0320D-13.5A is the new designed 10 loops 3.2mm diameter model with max static load of 13.5kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.



Now the JGX-0320 series isolators are used widely in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-0320D-13.5A:Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 0
  • Structural Diagram of JGX-0320D-13.5A:Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 1
  • Dimension of JGX-0320D-13.5A:Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 2
  • Mounting Options of JGX-0320D-13.5A:Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 3
  • Compression of JGX-0320D-13.5A:Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 4
  • 45° Compression of JGX-0320D-13.5A:Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 5
  • Shear/Roll of JGX-0320D-14A:Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 7



Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 8



Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 9



Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 10



Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 11



Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 12

Compact Wire Rope Isolator For Gopro Electric Cabinet PC Hard Drive UAV Camera 13

Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
