Engine Wire Rope Vibration Isolator Hvac
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015 Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $142.00/pieces 4-199 pieces
Contact Now
Detailed Product Description
Condition: New Applicable Industries: Energy & Mining
Weight (KG): 1.7 Showroom Location: None
Video Outgoing-inspection: Not Available Machinery Test Report: Not Available
Marketing Type: New Product 2020 Warranty: 1 Year
Core Components: Bearing Material: Stainless Steel Or Aluminum
Application: Shipping, Transformer, Container, Pump
Highlight:

vibration isolator hvac

,

engine vibration isolator

,

Engine Wire Rope Vibration Isolator

Container Pump Shipping Transformer Shock Vibration Insulation JGX-0958D-54A Wire Isolation Mount

Product Description

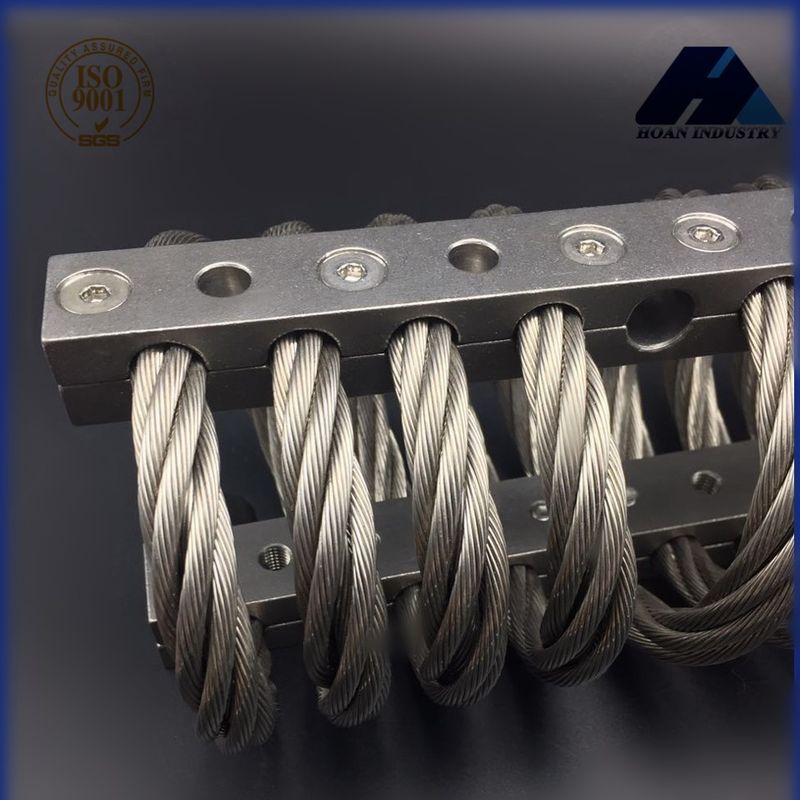

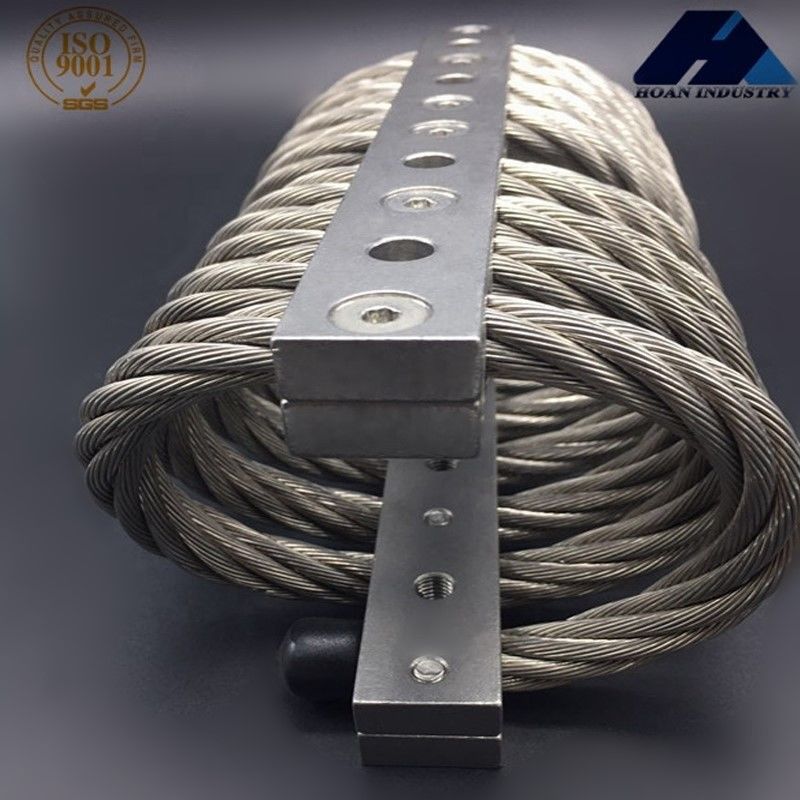

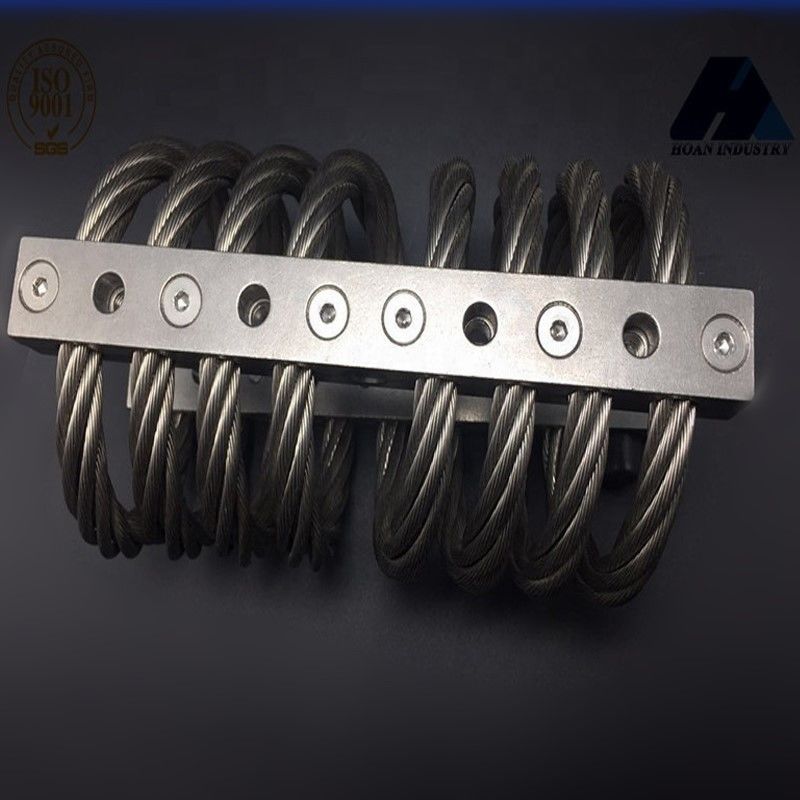

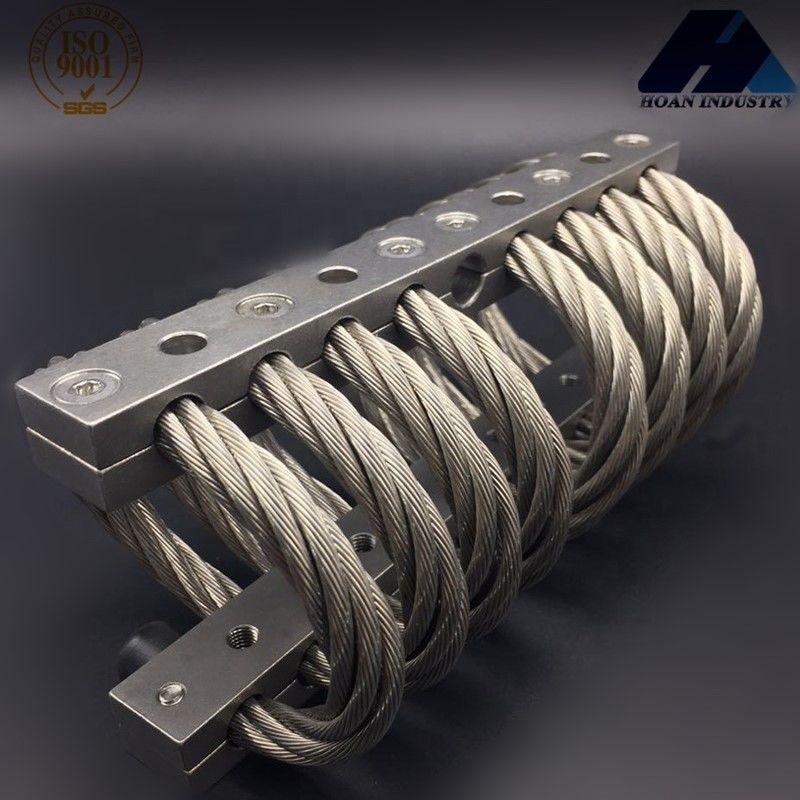

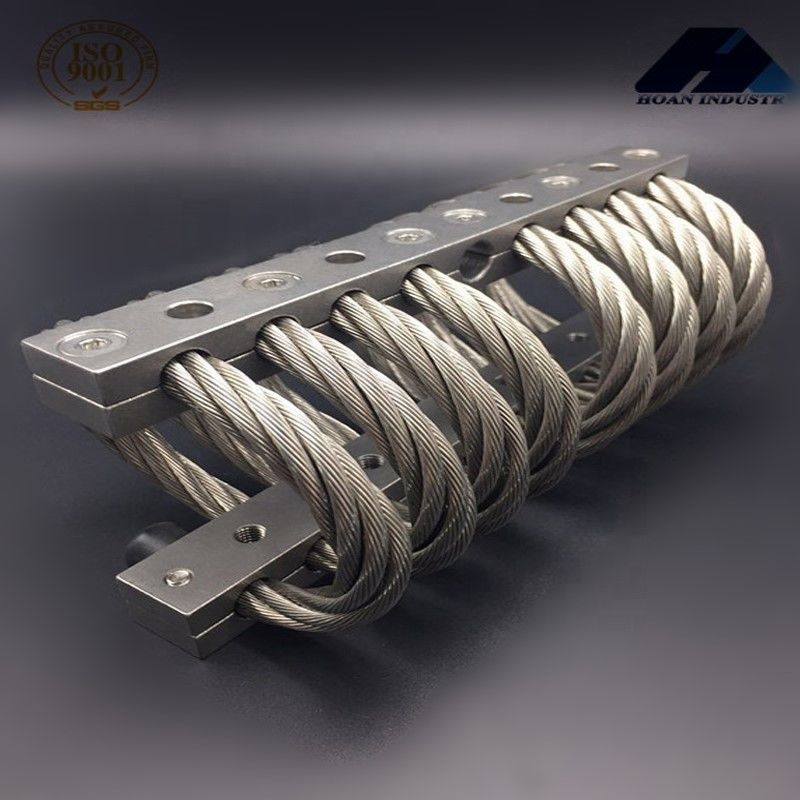

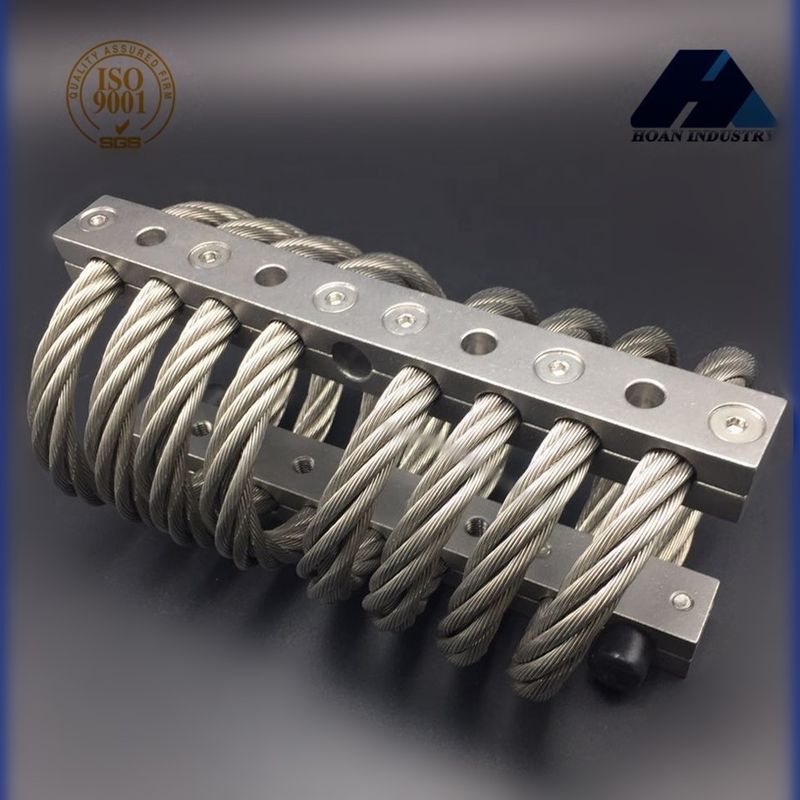

Wire isolation mounts are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable, high-performance shock and vibration mounts that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.



JGX-0958D-54A is the new designed 8 loops 9.5mm diameter model with max static load of 54kg, especially used in any instruments or systems for noise attenuation. With stainless steel material, this model has perfect performance of water-proof, anticorrosion as well as durability.



The JGX-0958D-54A model is used widely in the field of vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.



Technical Parameter
  • Model Number Code Ordering of JGX-0958D-54A:Engine Wire Rope Vibration Isolator Hvac 0
  • Structural Diagram of JGX-0958D-54A:Engine Wire Rope Vibration Isolator Hvac 1
  • Dimension of JGX-0958D-54A:Engine Wire Rope Vibration Isolator Hvac 2
  • Mounting Options of JGX-0958D-54A:Engine Wire Rope Vibration Isolator Hvac 3
  • Compression of JGX-0958D-54A:Engine Wire Rope Vibration Isolator Hvac 4
  • 45° Compression of JGX-0958D-54A:Engine Wire Rope Vibration Isolator Hvac 5
  • Shear/Roll of JGX-0958D-54A:Engine Wire Rope Vibration Isolator Hvac 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment is to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment is to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Application Show *

Engine Wire Rope Vibration Isolator Hvac 7



Engine Wire Rope Vibration Isolator Hvac 8



Engine Wire Rope Vibration Isolator Hvac 9



Engine Wire Rope Vibration Isolator Hvac 10



Engine Wire Rope Vibration Isolator Hvac 11



Engine Wire Rope Vibration Isolator Hvac 12



Engine Wire Rope Vibration Isolator Hvac 13

Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
