Wire Rope Isolators For Vibration Damping Eight Loops

Wire Rope Isolators For Vibration Damping Eight Loops

Wire Rope Isolators for vibration damping

Wire Rope Isolators

Wire rope vibration damper Eight loops

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Contact Us
Request A Quote
Product Details
Condition:
New
Applicable Industries:
Energy & Mining
Weight (KG):
4
Showroom Location:
None
Video Outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
New Product 2020
Warranty:
1 Year
Core Components:
Bearing
Material:
Aluminum Or Stainless Steel
Application:
Defense, Industry, Trailer, Antenna, Compressor, Rail
Highlight:

Wire Rope Isolators for vibration damping

,

Wire Rope Isolators

,

Wire rope vibration damper Eight loops

Payment & Shipping Terms
Minimum Order Quantity
4 pieces
Price
$201.00/pieces 4-199 pieces
Product Description

Machine Defense Industry Trailer Antenna Compressor Rail Vibration Shock Control JGX-1598D-285B Aluminum Wire Damper

Product Description



The JGX-1598D-285B wire damper is the kind type isolators from the family JGX-1598 series. The stainless steel cables and retaining bars of the JGX-1598D-285B provides amazing vibration isolation any time in use.



The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

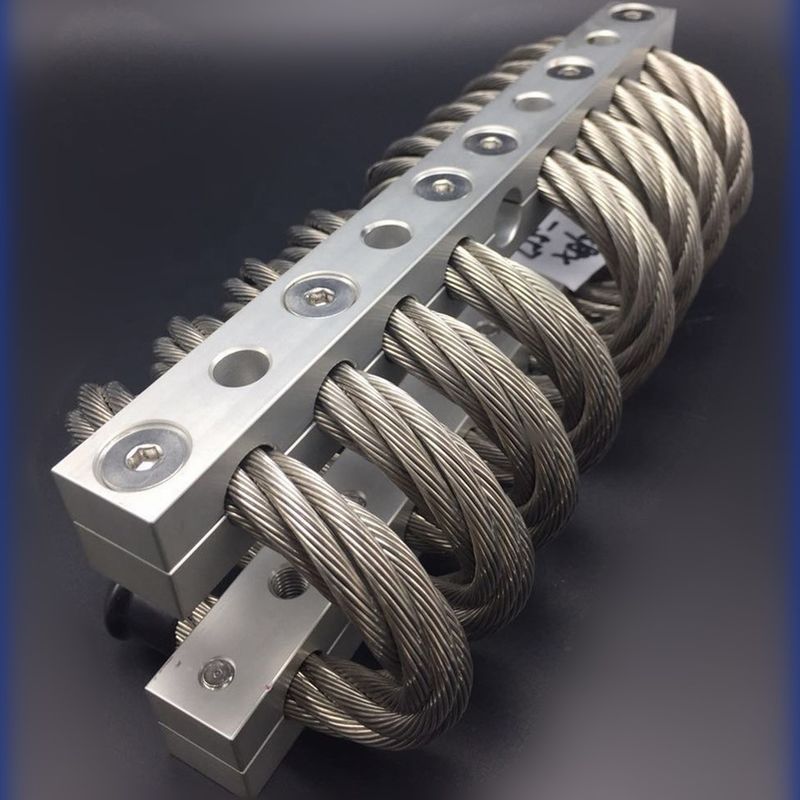

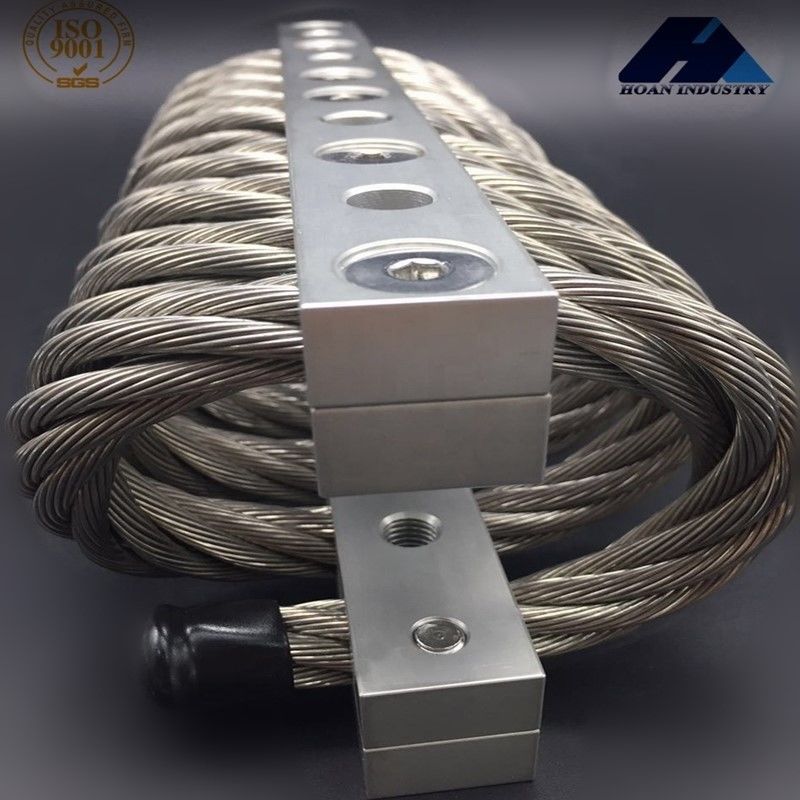

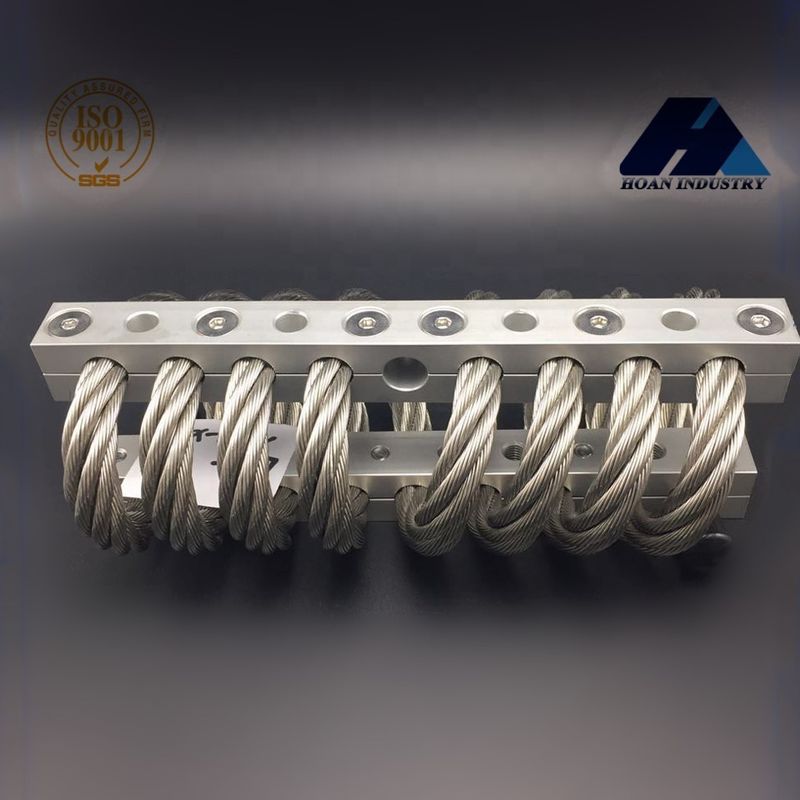

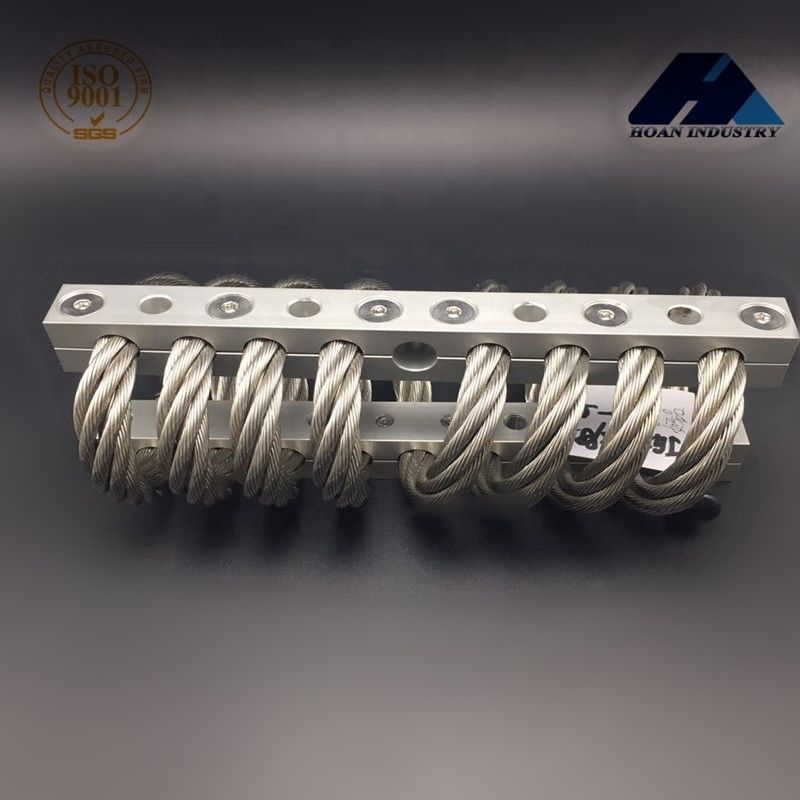

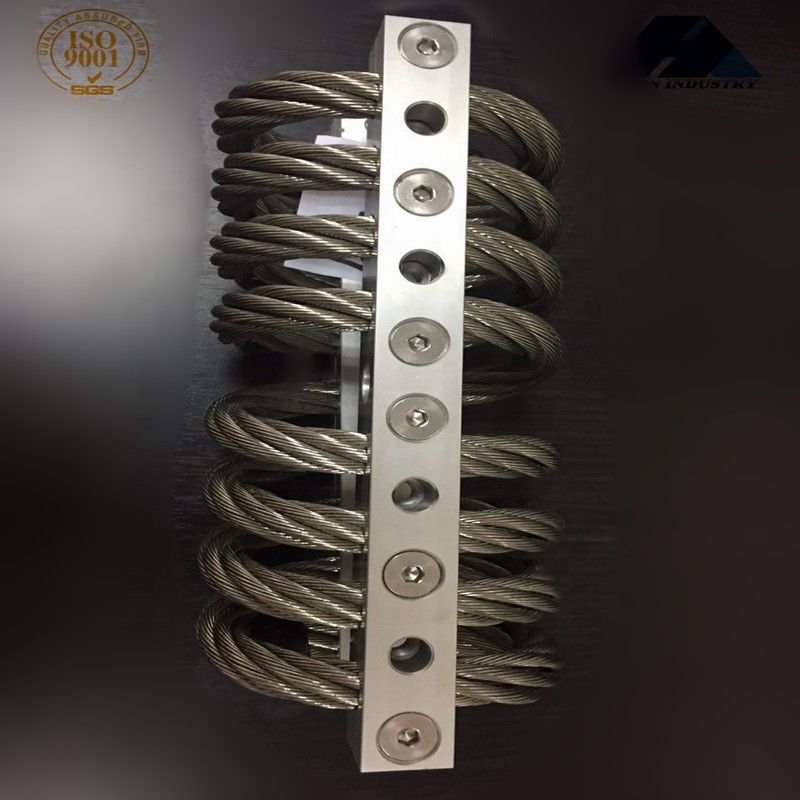

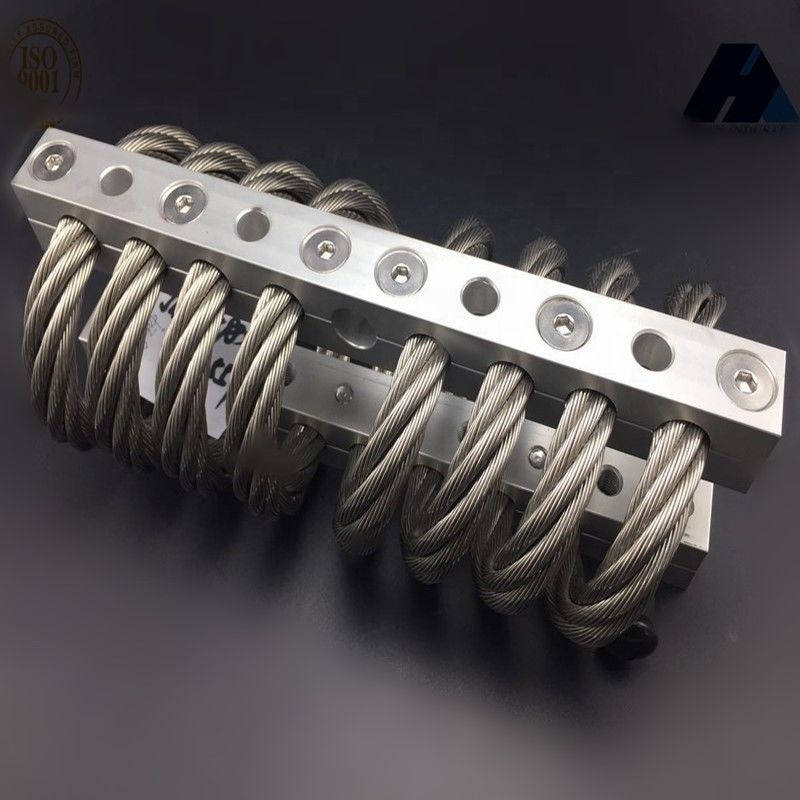

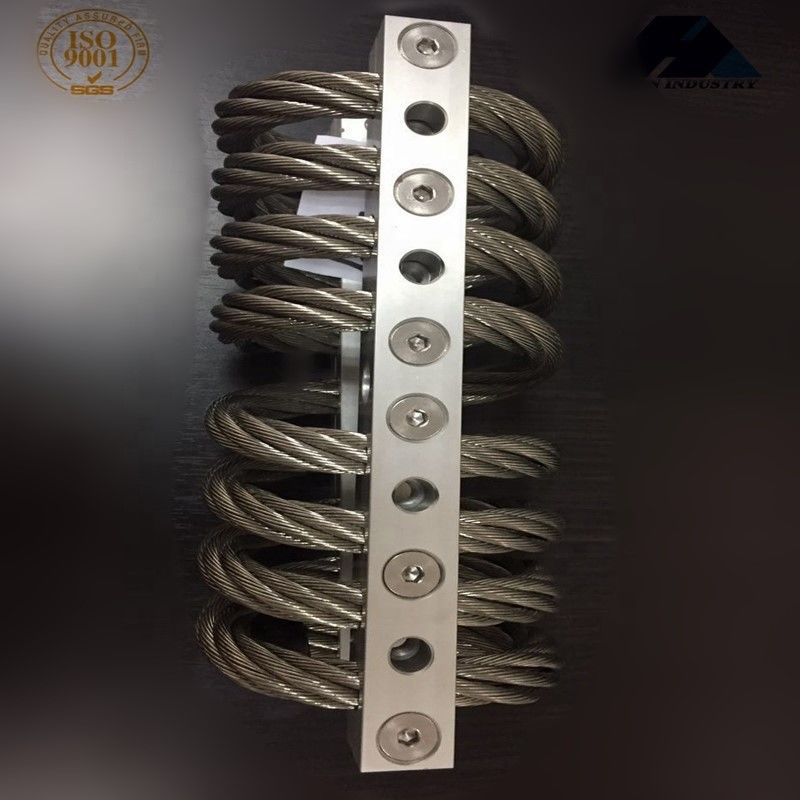

JGX-1598D-285B is the new designed 8 loops 15.9mm diameter model with max static load of 285kg, especially used in any instruments or systems for mechanical noise attenuation.



The wire dampers are now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-1598D-285B:Wire Rope Isolators For Vibration Damping  Eight Loops 0
  • Structural Diagram of JGX-1598D-285B:Wire Rope Isolators For Vibration Damping  Eight Loops 1
  • Dimension of JGX-1598D-285B:Wire Rope Isolators For Vibration Damping  Eight Loops 2
  • Mounting Options of JGX-1598D-285B:Wire Rope Isolators For Vibration Damping  Eight Loops 3
  • Compression of JGX-1598D-285B:Wire Rope Isolators For Vibration Damping  Eight Loops 4
  • 45° Compression of JGX-1598D-285B:Wire Rope Isolators For Vibration Damping  Eight Loops 5
  • Shear/Roll of JGX-1598D-285B:Wire Rope Isolators For Vibration Damping  Eight Loops 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Vibration Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Wire Rope Isolators For Vibration Damping  Eight Loops 7



Wire Rope Isolators For Vibration Damping  Eight Loops 8



Wire Rope Isolators For Vibration Damping  Eight Loops 9







Wire Rope Isolators For Vibration Damping  Eight Loops 10



Wire Rope Isolators For Vibration Damping  Eight Loops 11



Wire Rope Isolators For Vibration Damping  Eight Loops 12



Wire Rope Isolators For Vibration Damping  Eight Loops 13
