Heavy Duty Wire Rope Vibration Isolators Transformer Rail Engine Stand Generating Set Motor

Wire dampers are composed by the stainless steel cable and aluminum or stainless steel retaining bars or stainless retaining bars, which provide excellent effect of isolation. They are smaller than the traditional ones and adopt their advantages. With their mounting point, crimping patterns and size vibration, they could meet all requirements of industry, defense and others.

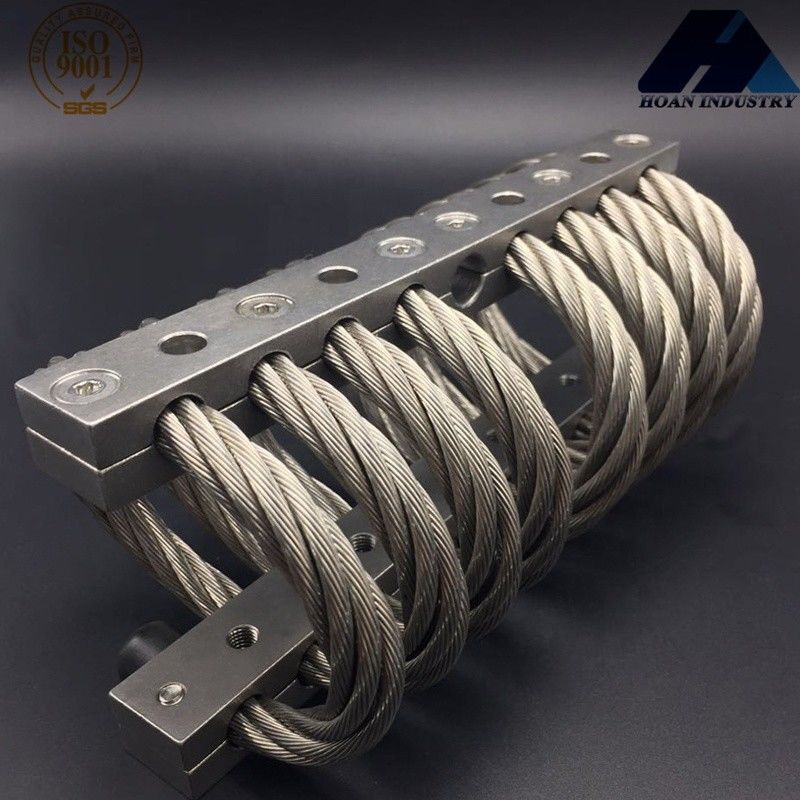

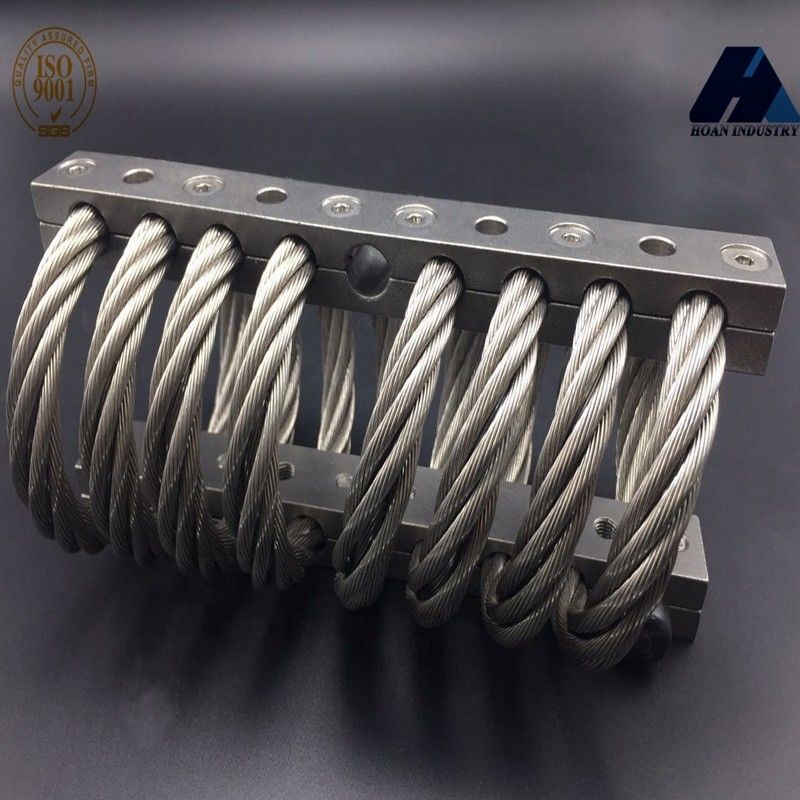

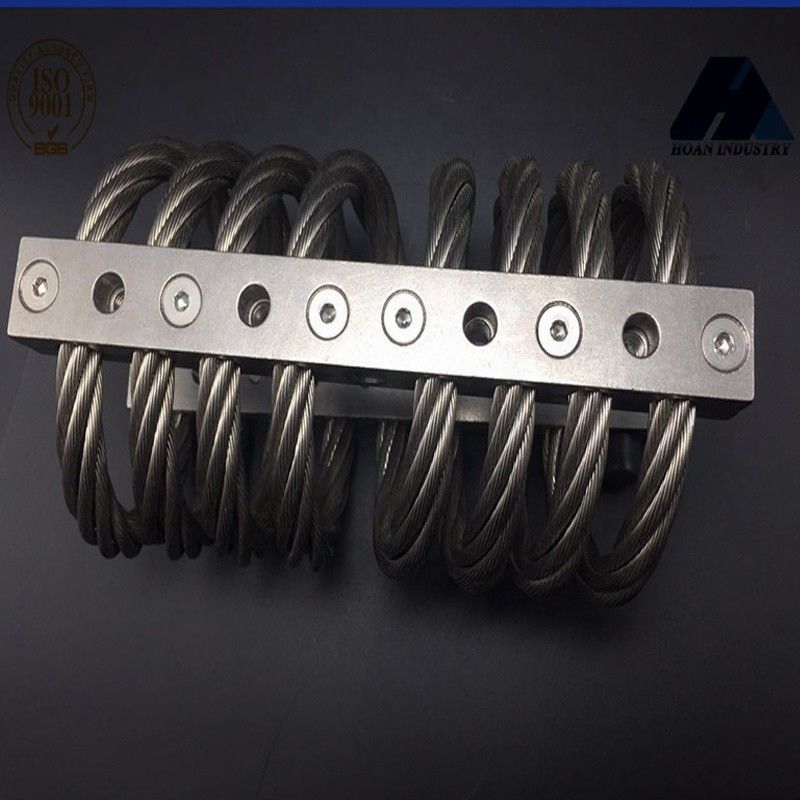

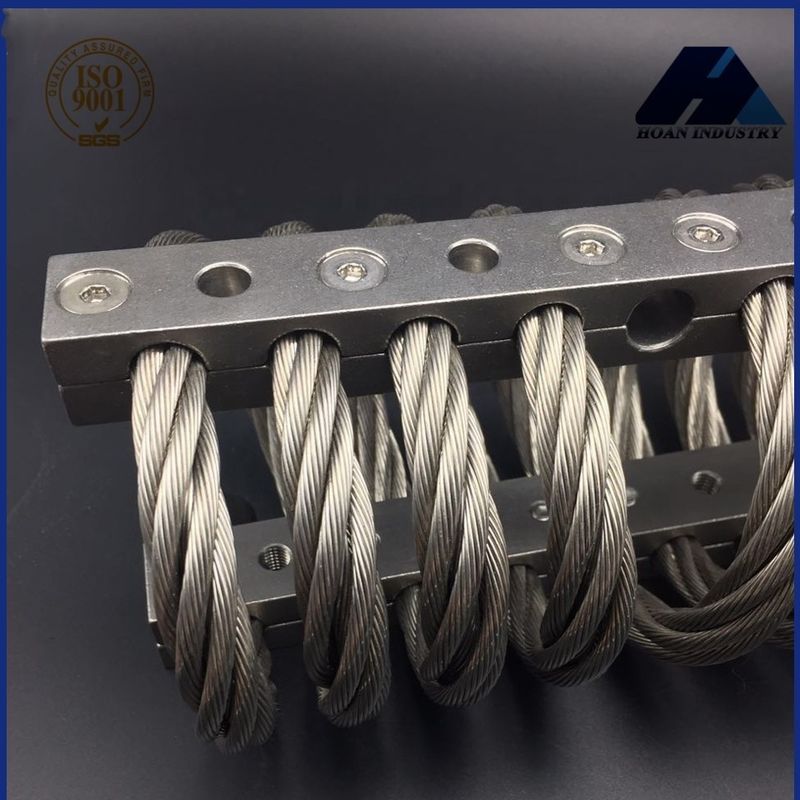

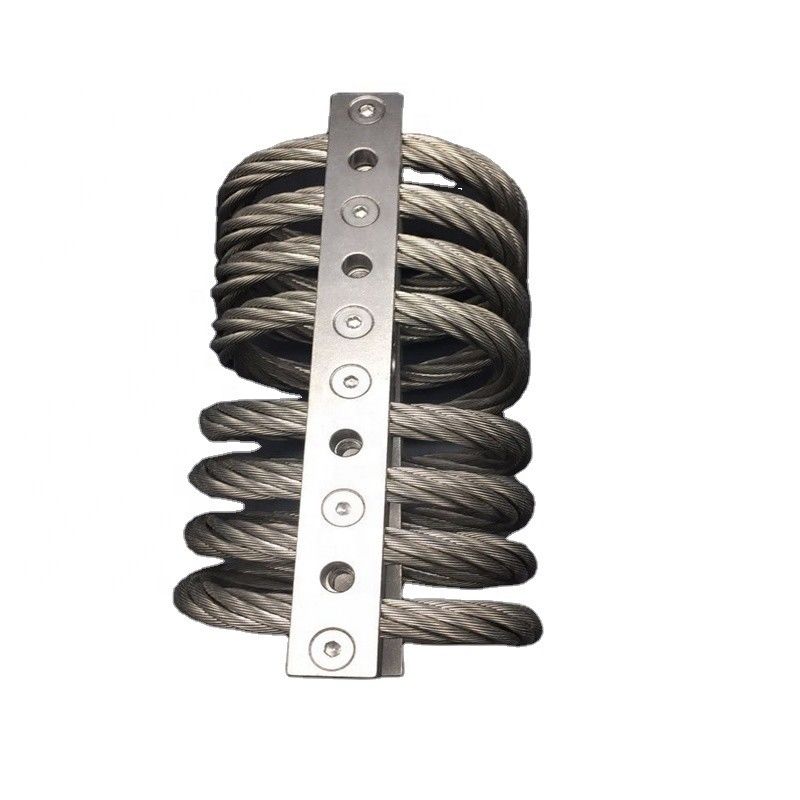

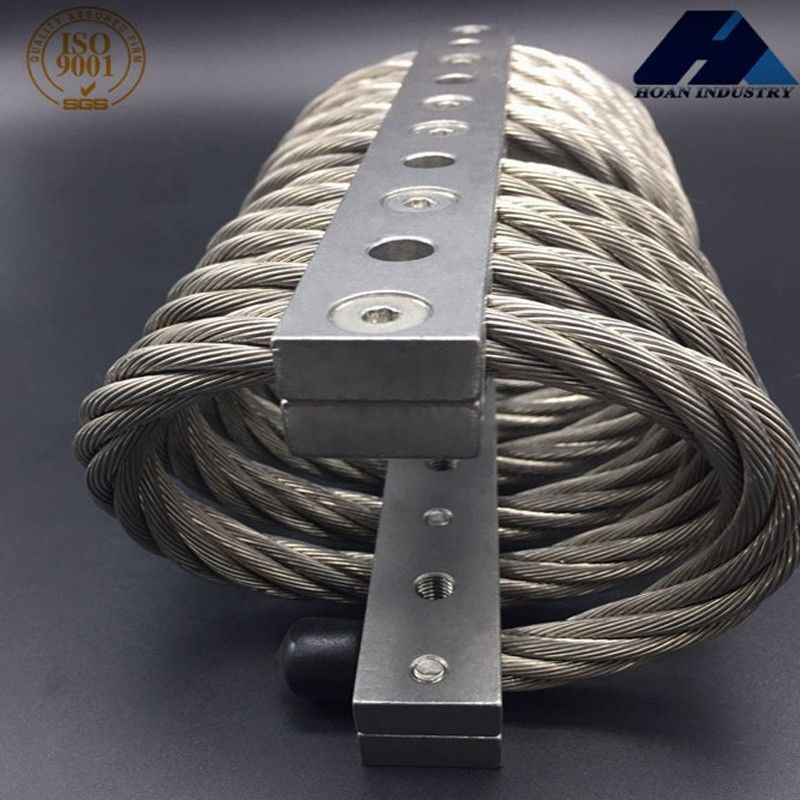

Xi'an Hoan's JGX-1278 series is the new designed 8 loops 12.7mm diameter model with great max static load from 122kg to 370kg, which offers flexibility for integration into existing products.

The JGX-1278 series wire dampers are now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

• Model Number Code Ordering of JGX-1278 Series:
• Structural Diagram of JGX-1278 Series:
• Dimension of JGX-1278 Series:
• Mounting Options of JGX-1278 Series:
• Compression of JGX-1278 Series:
• 45° Compression of JGX-1278 Series:
• Shear/Roll of JGX-1278 Series:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Dampers *

* Applications Show *

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of, defense, commercial and heavy industry.

Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.

Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.

Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
