Brand Name:
HOAN
Certification:
ISO9001:2015
Machine Navy Shipborne Marine Vehicles Container Shock Vibration Control JGX-1278D-122B Aluminum Wire Rope Mount
Wire rope mounts are comprised of stainless steel stranded cable threaded through stainless steel or aluminum retaining bars that are mounted for effective shock and vibration isolation.
With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope mounts are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.
The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

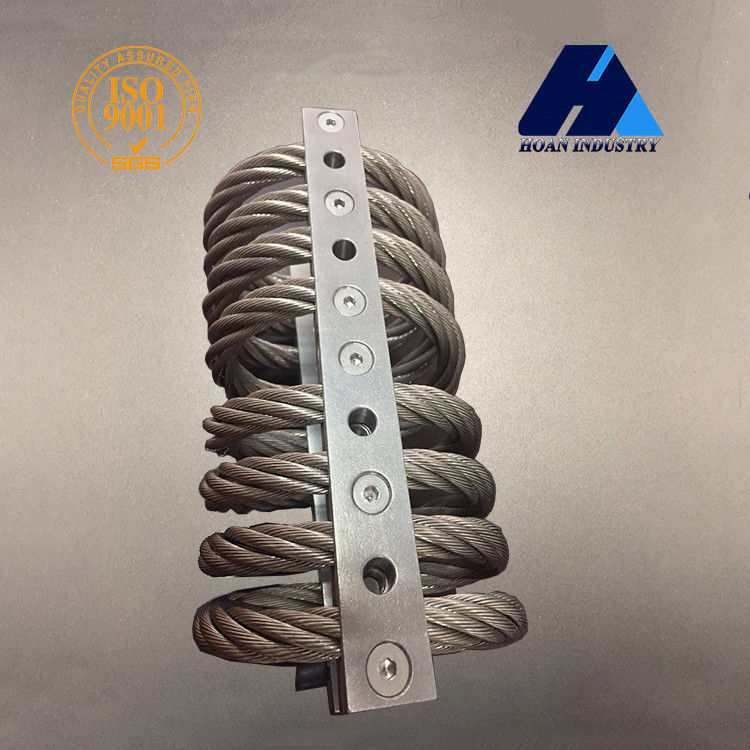

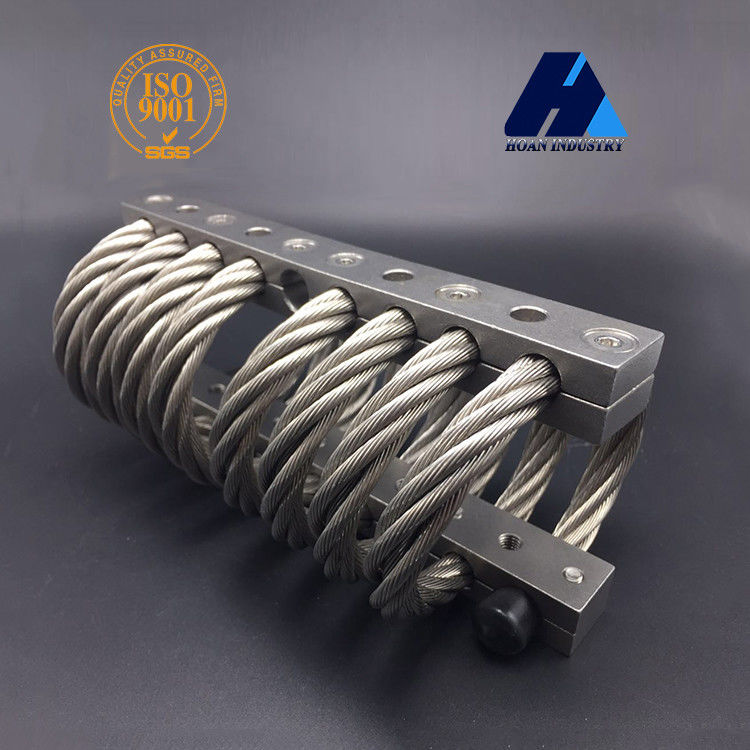

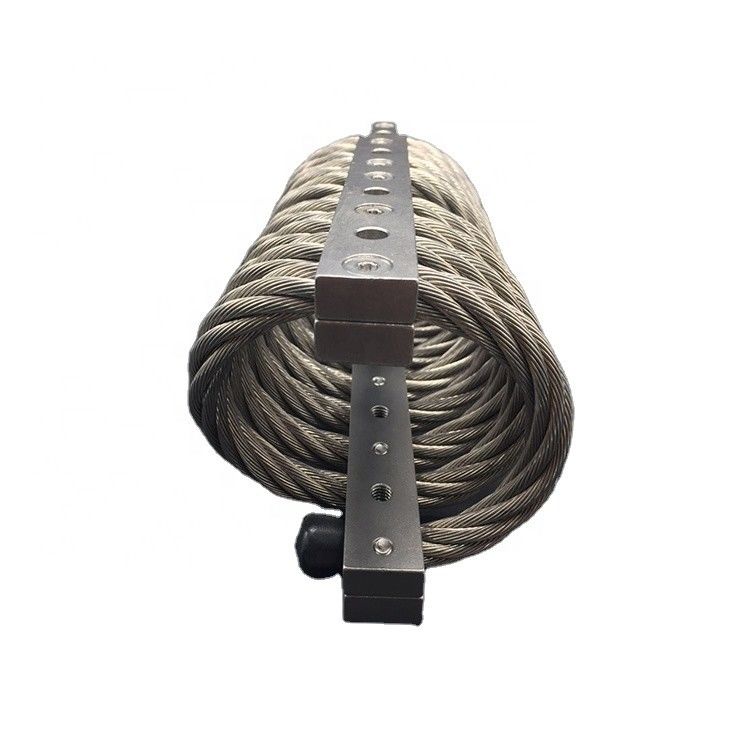

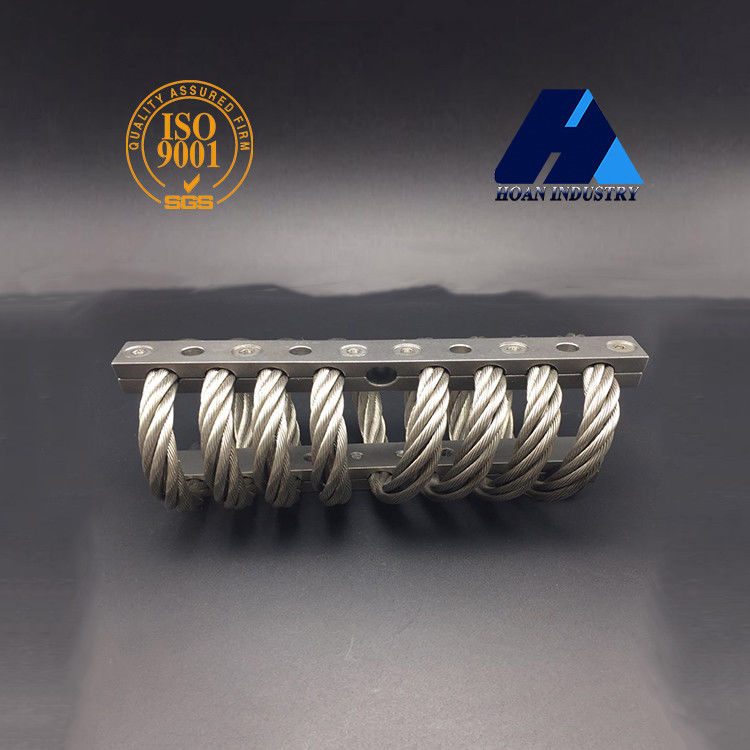

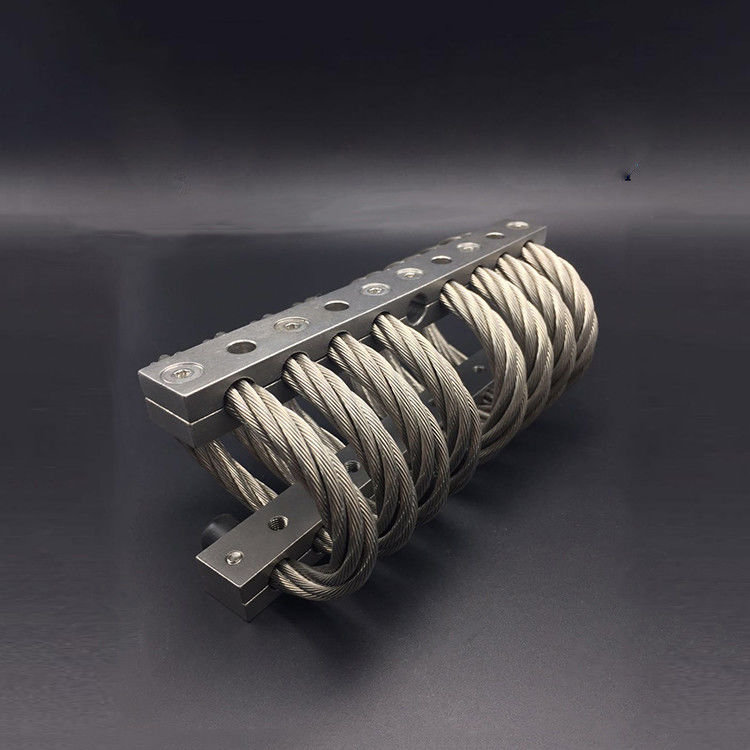

JGX-1278D-122B is the new designed 8 loops 12.7mm diameter marine model with max static load of 120kg, especially used in any navy shipborne or marine systems for mechanical noise attenuation. With stainless steel or alloy material bar, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.
The JGX-1278D-122B model is now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected
* Surface Treatment Selection of Aluminum Mounting Bars *
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* Applications of Wire Rope Isolators *
Applications |
Typical Equipment |
Protection From |
Operational Advantages |
Shipboard |
Electronics, Computers, |
Explosive blast, |
Long life, Maintenance-free, |
Rough Terrain Vehicles |
Instrumentation, Generators, |
Rough terrain, |
Long life, Maintenance-free, |
Aircraft |
Electronics, Computers |
High-G maneuvering, |
Temperature and altitude extremes, Lightweight |
Shipping Containers |
Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
Ordnance Equipment |
Missile launchers, Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit |
Maintenance-free, Temperature extremes, Nearby blast |
Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock |
Maintenance-free, No out gassing, Can be sterilized |
Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
* Applications Show *
Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of defense, commercial and heavy industry.
Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.
Now, we are the best seller for more than 31 provinces in China and almost 15 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.
Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
