Building Material Shops Vibration Shock Absorption Isolator with JGX-1276 Model

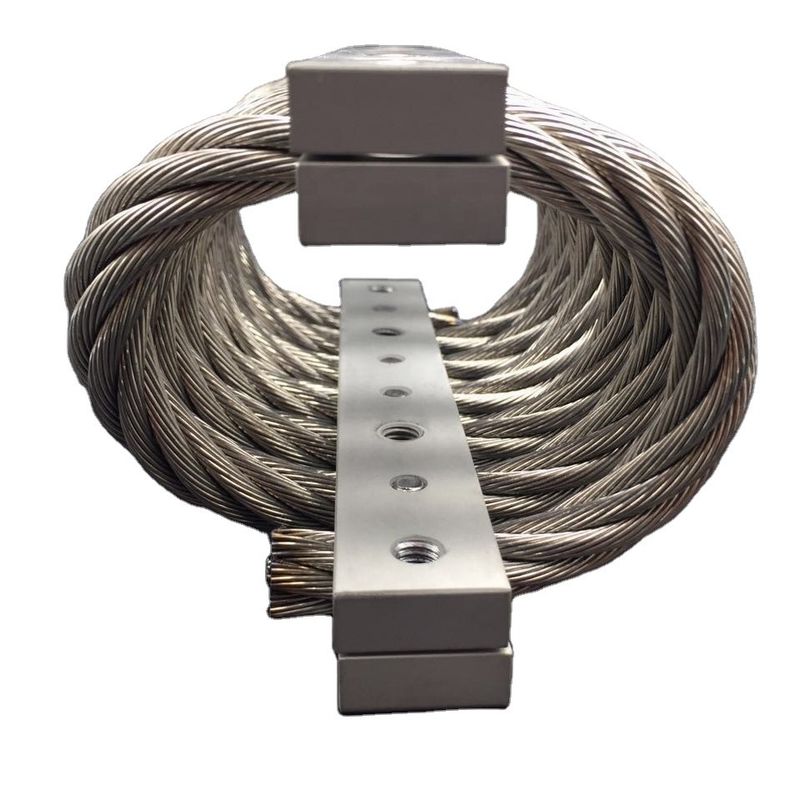

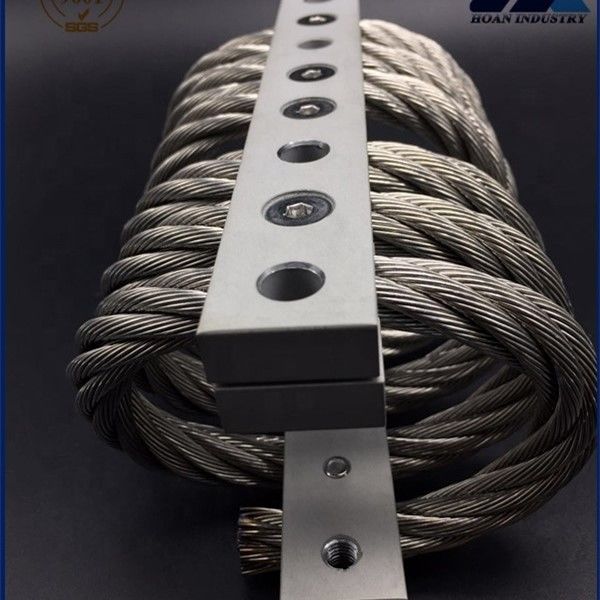

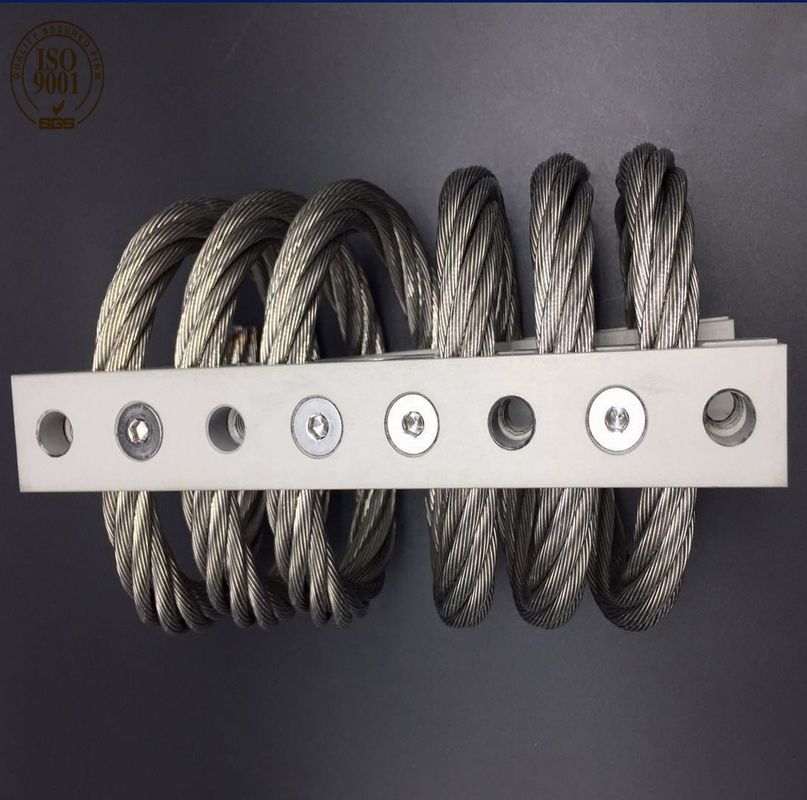

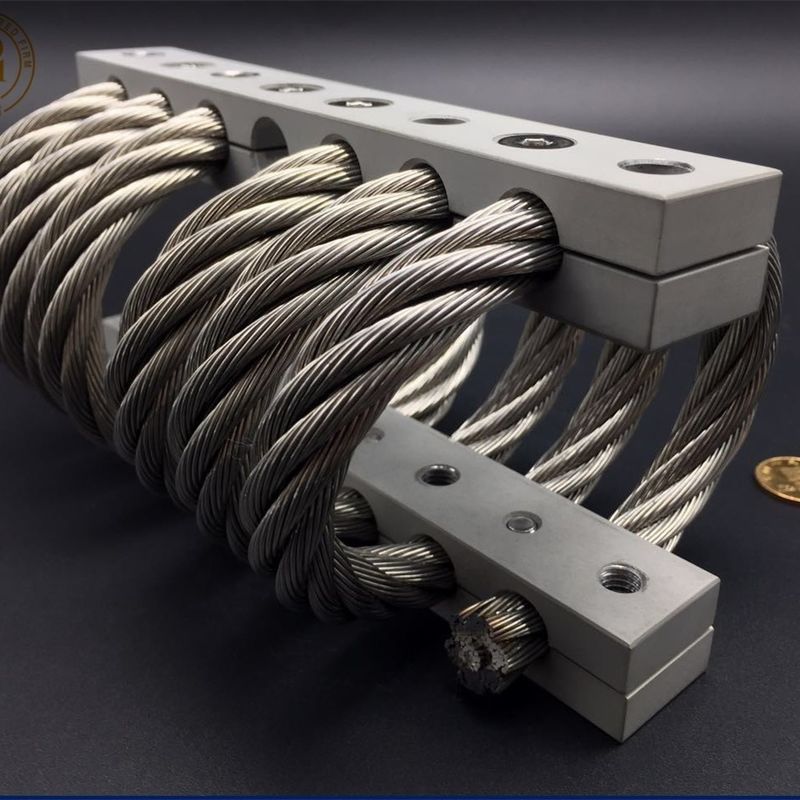

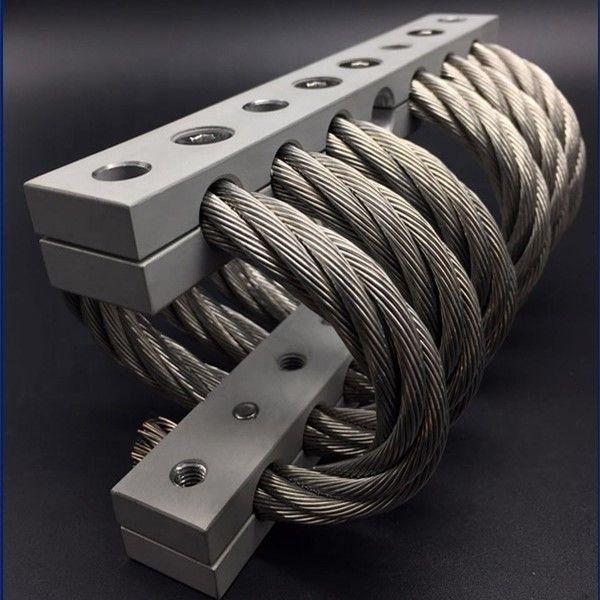

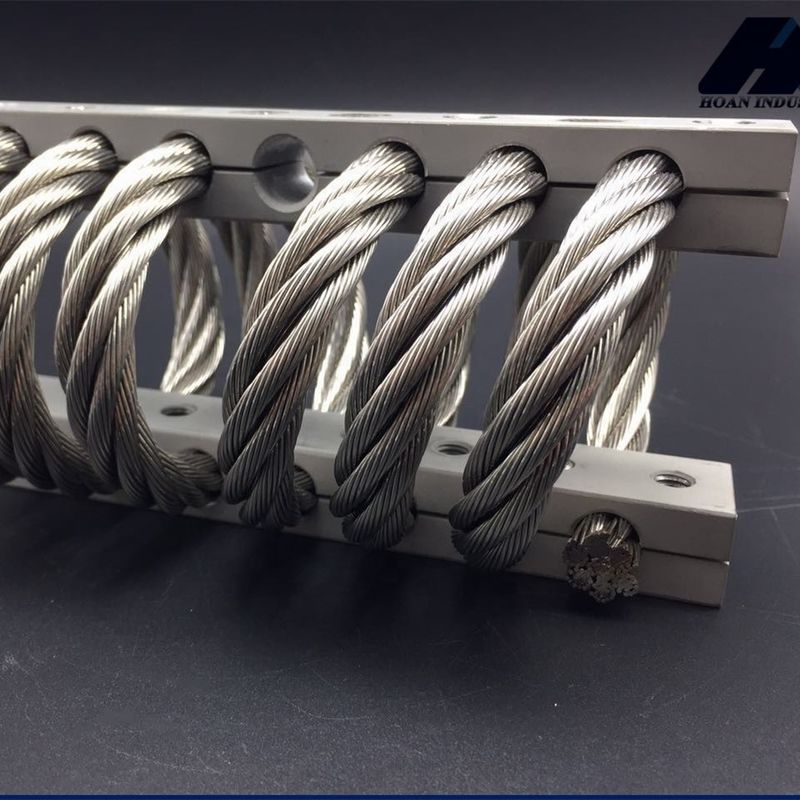

Wire vibration isolators are composed by the stainless steel cable and aluminum retaining bars or stainless retaining bars, which provide excellent effect of isolation. They are smaller than the traditional ones and adopt their advantages. With their mounting point, crimping patterns and size vibration, they could meet all requirements of industry, defense and others.

The JGX-1276 series shock absorbers are the new designed isolators with great max static load from 92kg to 280kg, which are quite suitable for the large heavy equipments and systems.

With stainless steel material, the JGX-1276 series has perfect performance of water-proof, anticorrosion as well as durability.

Now the JGX-1276 series wire rope mounts are used widely in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

• Model Number Code Ordering of JGX-1276 Series:
• Structural Diagram of JGX-1276 Series:
• Dimension of JGX-1276 Series:
• Mounting Options of JGX-1276 Series:
• Compression of JGX-1276 Series:
• 45° Compression of JGX-1276 Series:
• Shear/Roll of JGX-1276 Series:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Shock Absorbers *

* Applications Show *

\
