Product Description

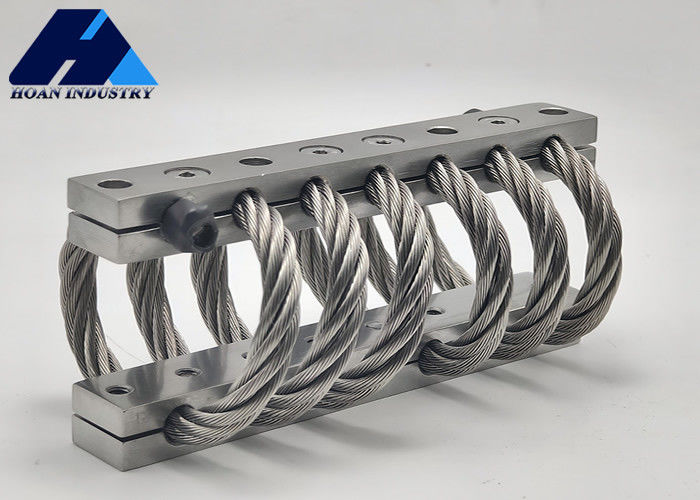

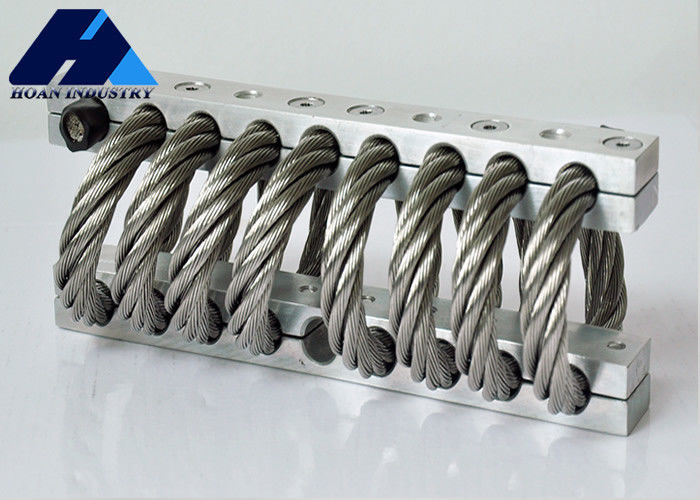

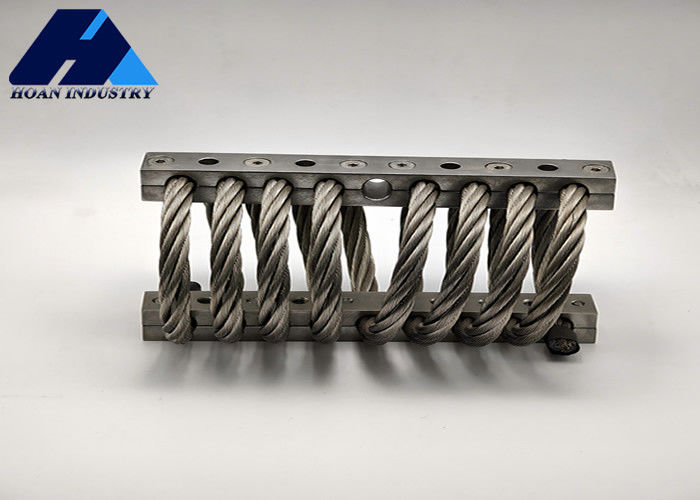

Wire isolation mounts are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.
With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable,high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.
The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.
JGX-1278D-199B is the new designed 8 loops 12.7mm diameter model with max static load of 199kg, especially used in any instruments or systems for mechanical noise attenuation. With stainless steel or alloy material, this model has perfect performance of water-proof, anticorrosion as well as durability.
The JGX-1278D-199B is now widely used in the field of launcher, highway transportation, marine,shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
Specification
* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected
* Surface Treatment Selection of Aluminum Mounting Bars *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
