Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-1278D-176B
Wire isolation mounts are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.
With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.
The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

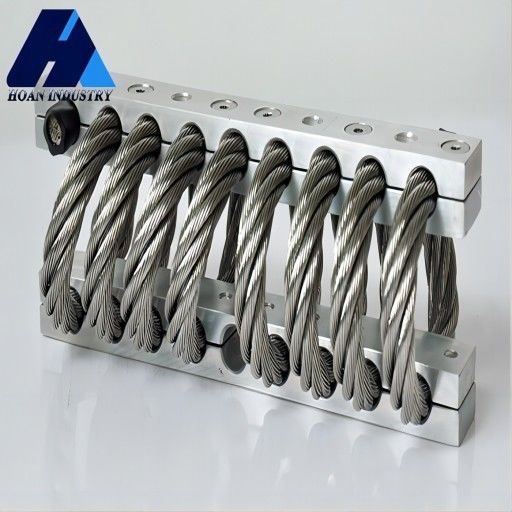

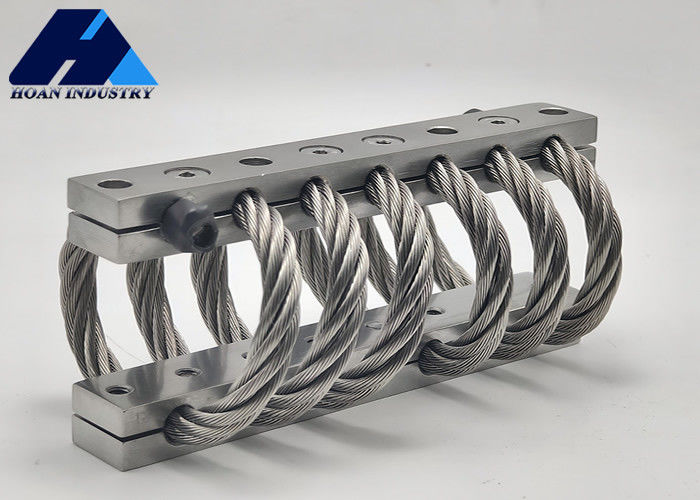

JGX-1278D-176B is the new designed 8 loops 12.7mm diameter model with max static load of 176kg, especially used in any instruments or systems for mechanical noise attenuation. With stainless steel or alloy material, this model has perfect performance of water-proof, anticorrosion as well as durability.
The JGX-1278D-176B is now widely used in the field of launcher, highway transportation, marine,shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
Product Applications
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Ship board |
Electronics, Computers, |
Explosive blast, Storms |
Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection |
| Rough Terrain Vehicls | Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment | Tank artillery, Computer controls, Electronics | Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
Company Profile
Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of defense, commercial and heavy industry.
Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.
Now, we are the best seller for more than 31 provinces in China and almost 15 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios,theaters, vehicles, vessels, and machines.
Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
Customer Photos
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days
Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available
