Name: GR Series Wire Rope Vibration Isolator 7Hz-15Hz 20g Shock Resistance
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0400D-17.5A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

GR Series Wire Rope Vibration Isolator 7Hz-15Hz 20g Shock Resistance

Shock Wire Rope Vibration Isolator

JGX-0400-17.5A Wire Rope Vibration Isolator

Environmentally Stable Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0400D-17.5A

Request A Quote

Product Details

Features:

Anchoring Holes; Oil Resis

Model:

GR SERIERS

Damping Ratio:

0.5

Max Static Load:

20-47N(2kg-4.8Kg)

Corrosion Resistance:

Yes

Applicable Industries:

Building Material Shops, Energy & Mining

Natural Frequency:

7Hz-15Hz

Condition:

New

Relative Product:

Backdraft Damper

Packing:

Standard Packing

Application:

Industrial Equipment

Shock Rsistance:

20g/11ms

Structure:

Helical

Shock Absorption:

Yes

Port:

Xi'an

Highlight:

Shock Wire Rope Vibration Isolator

JGX-0400-17.5A Wire Rope Vibration Isolator

Environmentally Stable Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

JGX-2228D-960B Wire Rope Vibration Isolator 960kg Load Industrial

Get Best Price

Stainless Steel Wire Rope Vibration Isolator JGX-0320 Series

Get Best Price

Video

GR Series Wire Rope Vibration Isolator 7Hz-15Hz 20g Shock Resistance

Get Best Price

Video

Stainless Steel Wire Rope Vibration Damper for Defense Energy

Get Best Price

86-29-88292913

Contact Now

Product Description

Environmentally Stable Wire Rope Vibration Isolator For Shock And Vibration Isolation JGX-0400-17.5A

Product Specifications

Attribute	Value
Model	GR SERIERS
Damping Ratio	0.5
Max Static Load	20-47N(2kg-4.8Kg)
Corrosion Resistance	Yes
Features	Anchoring Holes; Oil Resis
Applicable Industries	Building Material Shops, Energy & Mining
Natural Frequency	7Hz-15Hz
Condition	New
Relative Product	Backdraft Damper
Packing	Standard Packing
Application	Industrial Equipment
Shock Rsistance	20g/11ms
Structure	Helical
Shock Absorption	Yes
Port	Xi'an

Product Description

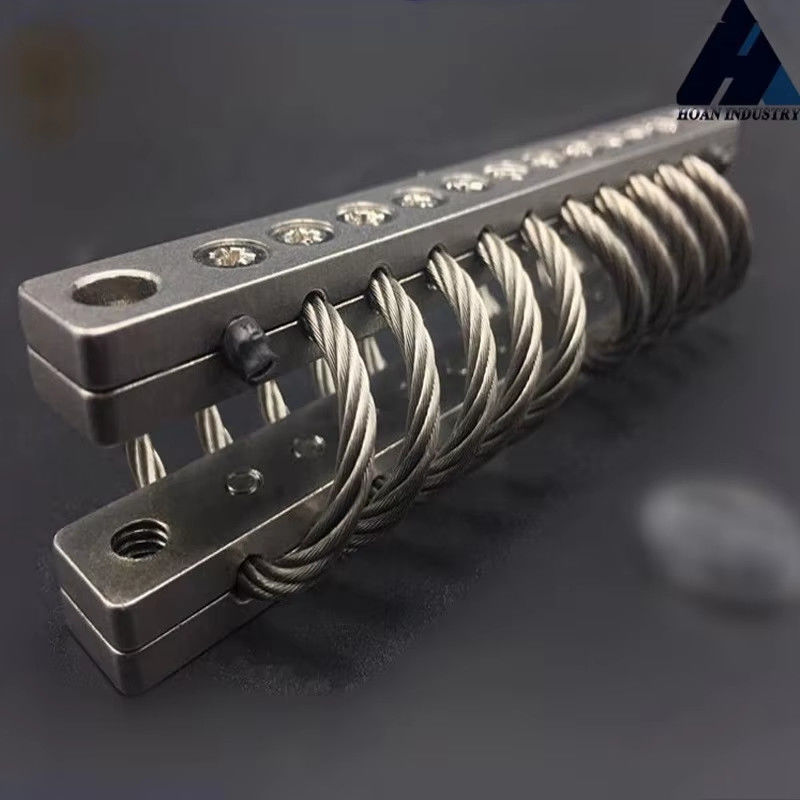

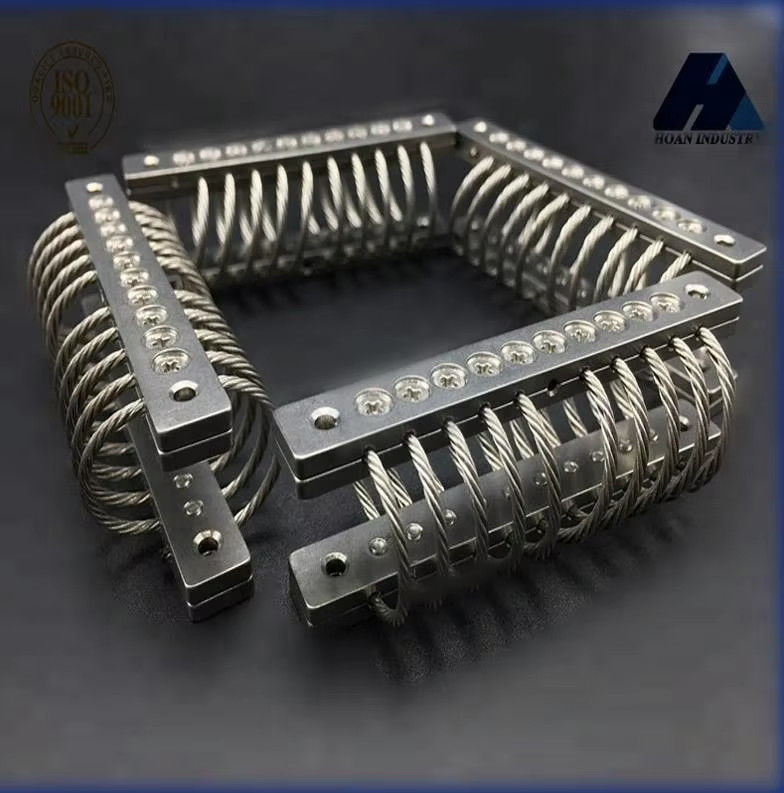

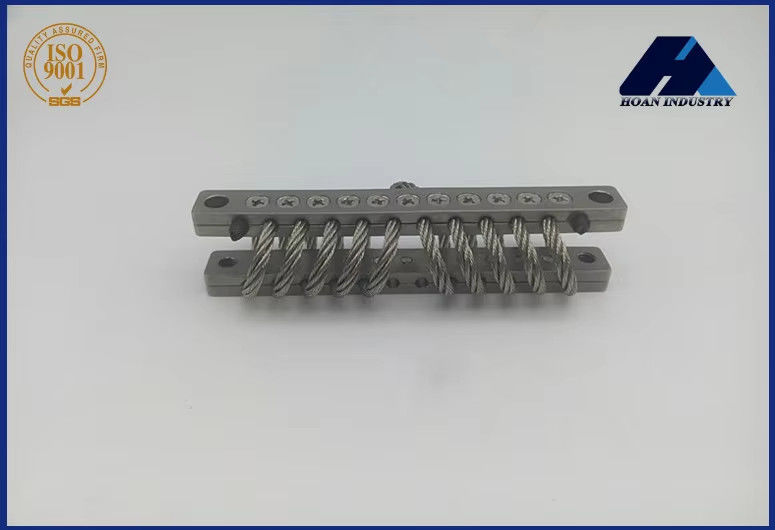

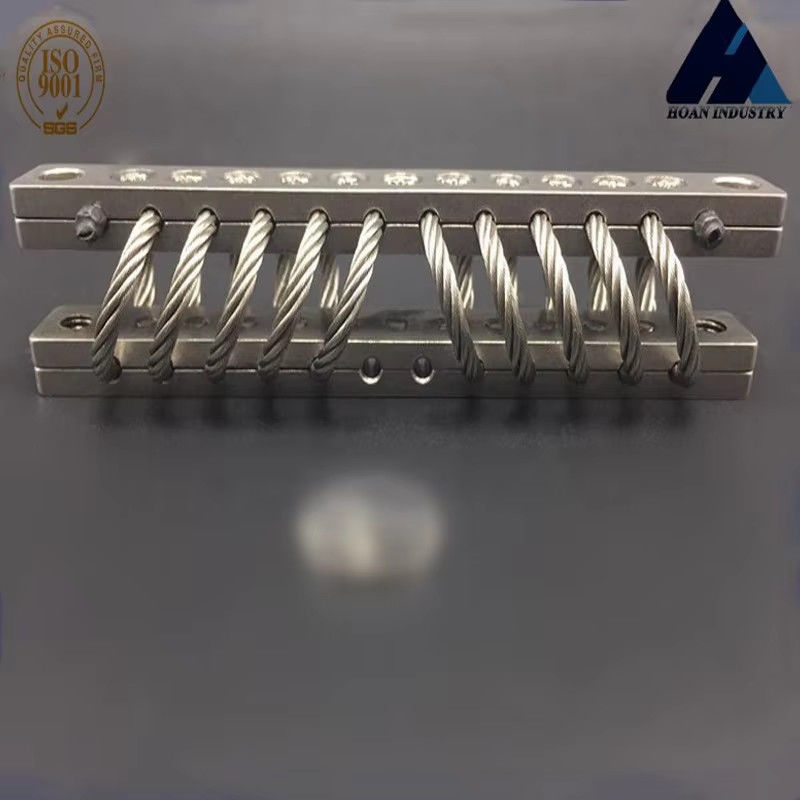

JGX-0400-17.6A wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi'an Hoan's wire rope isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

JGX-0400D-17.5A is the new designed 10 loops 4mm diameter model with max static load of 17.5kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this model has perfect performance of water-proof, anticorrosion as well as durability.

The wire rope isolators are now widely used in the field of vehicles, armored cars, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Specification

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Ship board	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicls	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments
