Product Description

summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

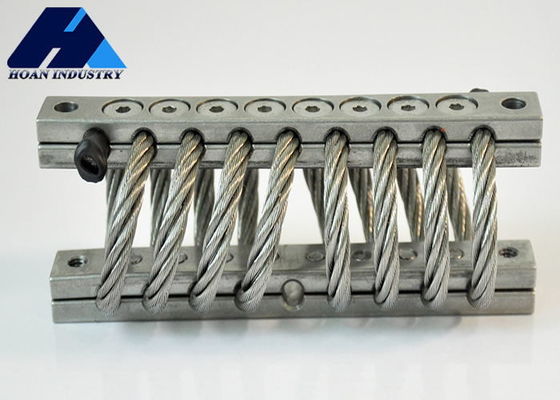

JGX-0648 Compact Wire Rope Isolator for Vibration Shock Control 0

Mounting Options

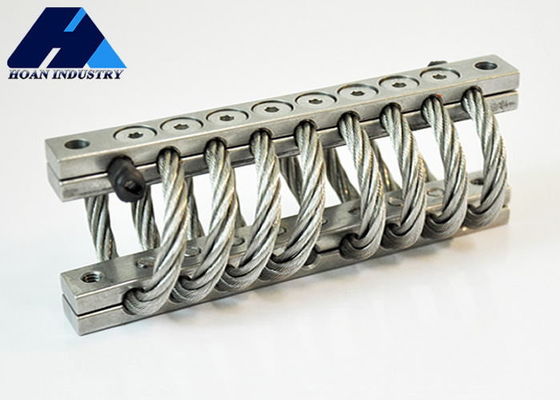

JGX-0648 Compact Wire Rope Isolator for Vibration Shock Control 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)

JGX-0648D-79A	48	56	0.456	A,B,C,D,E,S	∅6.9±0.13	M6×1.0	90
JGX-0648D-68A	54	64	0.492
JGX-0648D-56A	59	71	0.516
JGX-0648D-45A	64	80	0.564
JGX-0648D-39A	64	89	0.832
JGX-0648D-36A	67	95	0.864
JGX-0648D-33A	67	100	0.684
JGX-0648D-30A	83	108	0.708

Technical Data Sheet:

Vertical load

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness

KN/m)

Impact stiffness(KN/m)

1	JGX-0648D-79A	79	17.8	382	182
2	JGX-0648D-68A	68	23.9	266	116
3	JGX-0648D-56A	56	29.0	196	79
4	JGX-0648D-45A	45	32.0	151	60
5	JGX-0648D-39A	39	32.0	127	51
6	JGX-0648D-36A	36	35.6	109	42
7	JGX-0648D-33A	33	35.6	100	39
8	JGX-0648D-30A	30	50.8	74	25

45 ° directional load:

JGX-0648 Compact Wire Rope Isolator for Vibration Shock Control 3

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness(KN/m)

Impact stiffness(KN/m)

1	JGX-0648D-79A	56.7	25.9	215	89
2	JGX-0648D-68A	47.7	34.0	151	58
3	JGX-0648D-56A	39.8	39.6	109	40
4	JGX-0648D-45A	32.8	45.7	86	30
5	JGX-0648D-39A	27.9	45.7	72	25
6	JGX-0648D-36A	25.3	50.8	61	21
7	JGX-0648D-33A	23.4	50.8	56	19
8	JGX-0648D-30A	21.3	71.6	41	12

Lateral load:

JGX-0648 Compact Wire Rope Isolator for Vibration Shock Control 4

Curve number

Model

Maximum static load(N)

Vibration stiffness(KN/m)

Impact stiffness(KN/m

1	JGX-0648D-79A	43.2	18.8	110	110
2	JGX-0648D-68A	36.3	24.9	72	72
3	JGX-0648D-56A	31.7	30.0	49	49
4	JGX-0648D-45A	25.0	34.0	37	37
5	JGX-0648D-39A	22.7	34.0	32	32
6	JGX-0648D-36A	20.4	38.1	25	25
7	JGX-0648D-33A	18.2	38.1	23	23
8	JGX-0648D-30A	15.9	52.8	16	16

characteristic:
1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
