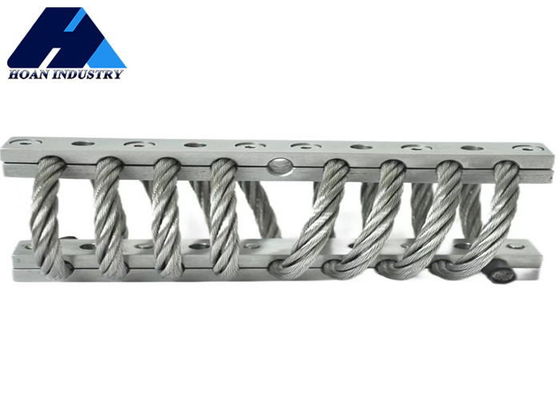

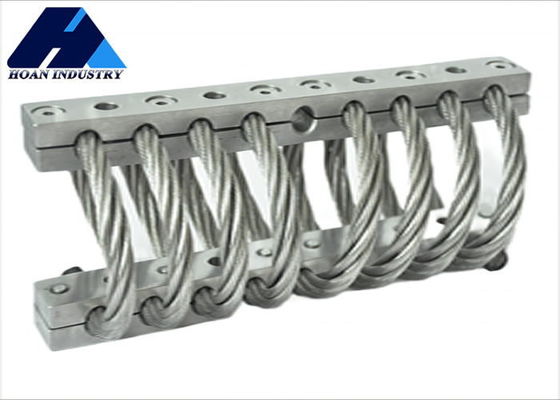

Place of Origin:
china
Model Number:
JGX-0958
Mounting Options
SIZE PARAMETER:
| Model | “H”±3.30 | “W” | Unit weight | Mounting options | Thru hole(mm) | Thread(mm) |
| JGX-0958D-149A | 71 | 84 | 1.65 | A,B,C,D,E,S | ∅9.0+0.13 -0.38 | M8×1.25 | 90 |
| JGX-0958D-138A | 74 | 89 | 1.70 | ||||
| JGX-0958D-108A | 76 | 105 | 1.80 | ||||
| JGX-0958D-99A | 83 | 108 | 1.89 | ||||
| JGX-0958D-95A | 89 | 108 | 1.95 | ||||
| JGX-0958D-54A | 105 | 121 | 2.15 | ||||
| JGX-0958D-43A | 108 | 140 | 2.35 |
Technical Data Sheet:
Vertical load
| Curve number | Model | Maximum static load(N) | Maximum deformation(mm) |
Vibration stiffness KN/m) |
Impact stiffness(KN/m) |
| 1 | JGX-0958D-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958D-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958D-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958D-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958D-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958D-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958D-43A | 43 | 68.1 | 67 | 26 |
45 ° directional load:
|
Curve number |
Model | Maximum static load(N) | Maximum deformation(mm) | Vibration stiffness(KN/m) | Impact stiffness(KN/m) |
| 1 | JGX-0958D-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958D-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958D-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958D-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958D-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958D-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958D-43A | 38 | 95 | 47 | 16 |
Lateral load:
| Curve number | Model | Maximum static load(N) | Maximum static load(N) | Vibration stiffness(KN/m) | Impact stiffness(KN/m |
| 曲线序号 | 型号 | 最大静载荷(kg) | 最大变形(mm) | 振动刚度(KN/m) | 冲击刚度(KN/m) |
| 1 | JGX-0958D-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958D-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958D-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958D-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958D-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958D-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958D-43A | 20.4 | 71.7 | 19 | 19 |
