JGX-1278 Compact Wire Rope Isolator Vibration And Shock Control Solution

JGX-1278 Compact Wire Rope Isolator Vibration And Shock Control Solution

JGX-1278 Wire Rope Isolator

Compact Wire Rope Isolator

Shock Control Wire Rope Isolator

Place of Origin:

china

Model Number:

JGX-1278

Contact Us
Request A Quote
Product Details
Highlight:

JGX-1278 Wire Rope Isolator

,

Compact Wire Rope Isolator

,

Shock Control Wire Rope Isolator

Payment & Shipping Terms
Minimum Order Quantity
10
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description
summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

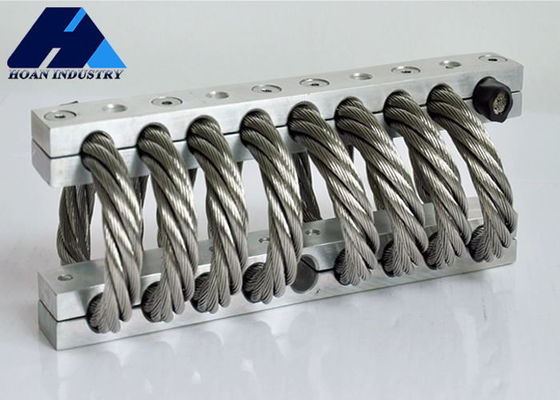

JGX-1278 Compact Wire Rope Isolator Vibration And Shock Control Solution 0



Mounting Options

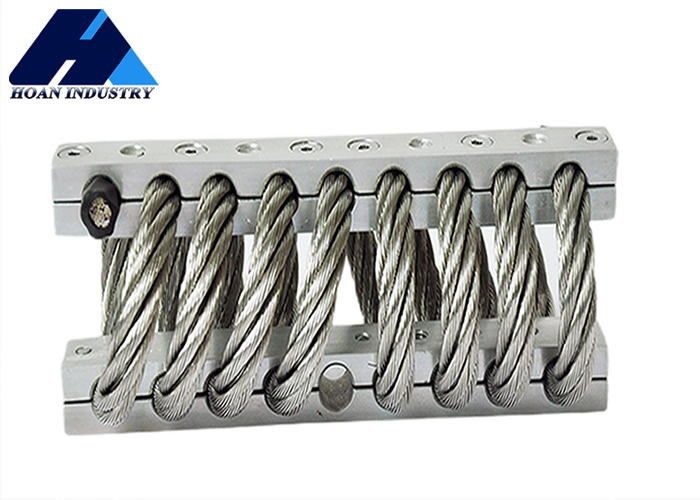

JGX-1278 Compact Wire Rope Isolator Vibration And Shock Control Solution 1





SIZE PARAMETER:



Model “H”±3.30 “W” Unit weight Mounting options Thru hole(mm) Thread(mm) C'sink
JGX-1278D-370B 76 92 1.81 A,B,C,D,E,S ∅9.0+0.13 -0.38 M8×1.25 90
JGX-1278D-310B 83 102 1.91
JGX-1278D-292B 89 105 2.00
JGX-1278D-235B 95 121 2.22
JGX-1278D-199B 108 133 2.40
JGX-1278D-176B 124 144 2.70
JGX-1278D-154B 137 156 2.90
JGX-1278D-122B 155 180 3.09





Vertical load

JGX-1278 Compact Wire Rope Isolator Vibration And Shock Control Solution 2


Curve number Model Maximum static load(N) Maximum deformation(mm)

Vibration stiffness

KN/m)

Impact stiffness(KN/m)
1 JGX-1278D-370B 370 32.0 954 471
2 JGX-1278D-310B 310 38.1 708 333
3 JGX-1278D-292B 292 43.2 613 278
4 JGX-1278D-235B 235 48.8 457 196
5 JGX-1278D-199B 199 59.9 340 137
6 JGX-1278D-176B 176 74.7 261 96
7 JGX-1278D-154B 154 85.9 207 74
8 JGX-1278D-122B 122 102.6 148 49



45 ° directional load:



JGX-1278 Compact Wire Rope Isolator Vibration And Shock Control Solution 3



Curve number

Model Maximum static load(N) Maximum deformation(mm) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 JGX-1278D-370B 263.2 44.7 539 236
2 JGX-1278D-310B 220.1 52.8 398 168
3 JGX-1278D-292B 208.8 61.0 349 138
4 JGX-1278D-235B 165.7 68.6 259 98
5 JGX-1278D-199B 143.0 84.8 193 68
6 JGX-1278D-176B 124.8 105.7 147 49
7 JGX-1278D-154B 109.0 121.9 117 37
8 JGX-1278D-122B 84.0 144.8 83 25

Lateral load:

JGX-1278 Compact Wire Rope Isolator Vibration And Shock Control Solution 4



Curve number Model Maximum static load(N) Maximum static load(N) Vibration stiffness(KN/m) Impact stiffness(KN/m
1 JGX-1278D-370B 299.6 33.0 294 294
2 JGX-1278D-310B 174.8 40.1 207 207
3 JGX-1278D-292B 158.9 45.2 173 173
4 JGX-1278D-235B 122.6 50.8 121 121
5 JGX-1278D-199B 81.7 56.9 81 81
6 JGX-1278D-176B 61.3 77.7 60 60
7 JGX-1278D-154B 45.4 90.9 46 46
8 JGX-1278D-122B 29.5 107.7 30 30



1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
