JGX-1598 Compact Wire Rope Isolator The Ultimate Vibration Shock Control Solution

JGX-1598 Wire Rope Isolator

Shock Control Compact Wire Rope Isolator

Place of Origin:

china

Model Number:

JGX-1598

Request A Quote

Product Details

Highlight:

JGX-1598 Wire Rope Isolator

Shock Control Compact Wire Rope Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

JGX-1598 Vibration Mounts Versatile Mounting Options and Size Variation for Any Field JGX-1598D-657B

Get Best Price

Video

JGX-2228A-1250A Wire Rope Vibration Isolator The Future of Industrial Machinery Vibration Isolation

Get Best Price

JGX-2228A-380A Intelligent Collaboration and Green Manufacturing with Wire Rope Vibration Isolator

Get Best Price

JGX-2228A-550A The Ultimate Solution for Vibration Control in Cutting-Edge National Defense and Industrial Manufacturing

Get Best Price

86-29-88292913

Contact Now

Product Description

summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

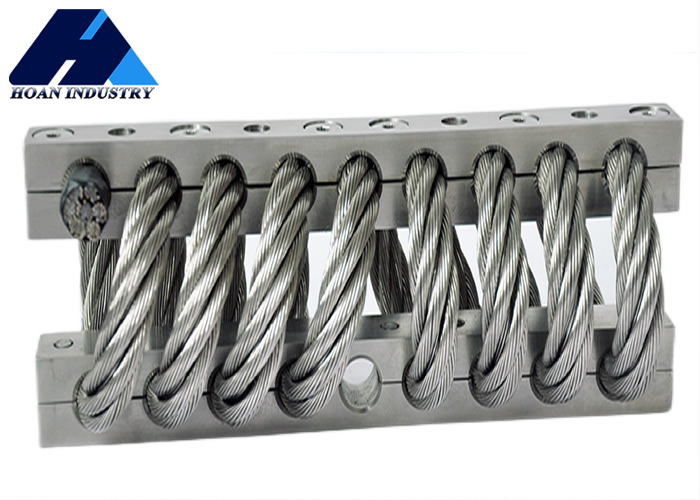

JGX-1598 Compact Wire Rope Isolator The Ultimate Vibration Shock Control Solution 0

Mounting Options

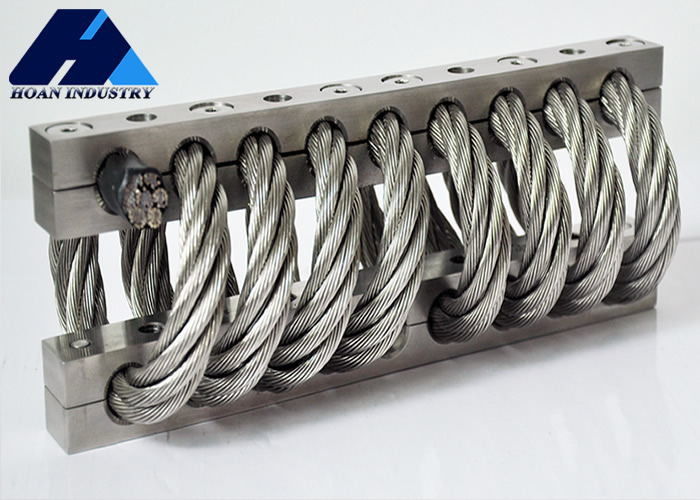

JGX-1598 Compact Wire Rope Isolator The Ultimate Vibration Shock Control Solution 1

SIZE PARAMETER:

Model

“H”±3.30

“W”

Unit weight

Mounting options

Thru hole(mm)

Thread(mm)

C'sink

JGX-1598D-657B	89	102	3	C,D	∅11+0.13 -0.38	M10×1.5	90
JGX-1598D-557B	99	112	3.2	A,B,C,D,E,S
JGX-1598D-515B	102	121	3.4
JGX-1598D-428B	109	135	3.7
JGX-1598D-358B	119	152	4
JGX-1598D-324B	127	165	4.31
JGX-1598D-285B	135	178	4.63

Vertical load

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness

KN/m)

Impact stiffness(KN/m)

1	JGX-1598D-657B	657	31.8	1676	849
2	JGX-1598D-557B	557	38.1	1259	609
3	JGX-1598D-515B	515	41.9	1105	504
4	JGX-1598D-428B	428	49.5	821	356
5	JGX-1598D-358B	358	58.4	616	252
6	JGX-1598D-324B	324	67.3	511	196
7	JGX-1598D-285B	285	73.7	427	159

45 ° directional load:

JGX-1598 Compact Wire Rope Isolator The Ultimate Vibration Shock Control Solution 3

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness(KN/m)

Impact stiffness(KN/m)

1	JGX-1598D-657B	463.0	45.7	951	419
2	JGX-1598D-557B	406.2	54.6	741	305
3	JGX-1598D-515B	365.4	59.7	627	250
4	JGX-1598D-428B	304.1	71.1	468	177
5	JGX-1598D-358B	254.2	83.8	350	124
6	JGX-1598D-324B	229.2	94.0	285	98
7	JGX-1598D-285B	201.9	101.6	238	81

Lateral load:

JGX-1598 Compact Wire Rope Isolator The Ultimate Vibration Shock Control Solution 4

Curve number

Model

Maximum static load(N)

Vibration stiffness(KN/m)

Impact stiffness(KN/m

1	JGX-1598D-657B	358.6	34.3	524	524
2	JGX-1598D-557B	308.7	40.6	375	375
3	JGX-1598D-515B	267.8	43.2	308	308
4	JGX-1598D-428B	217.9	52.1	215	215
5	JGX-1598D-358B	154.3	61.0	152	152
6	JGX-1598D-324B	124.8	69.9	123	123
7	JGX-1598D-285B	99.9	76.2	98	98

1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
