Vibration Shock Control JGX-2228 Compact Wire Rope Isolator

Name: Vibration Shock Control JGX-2228 Compact Wire Rope Isolator
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-2228
Availability: InStock

Model Number:	JGX-2228
MOQ:	10
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Highlight:

JGX-2228 Compact Wire Rope Isolator

Vibration Shock Control Wire Rope Isolator

Product Description

summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

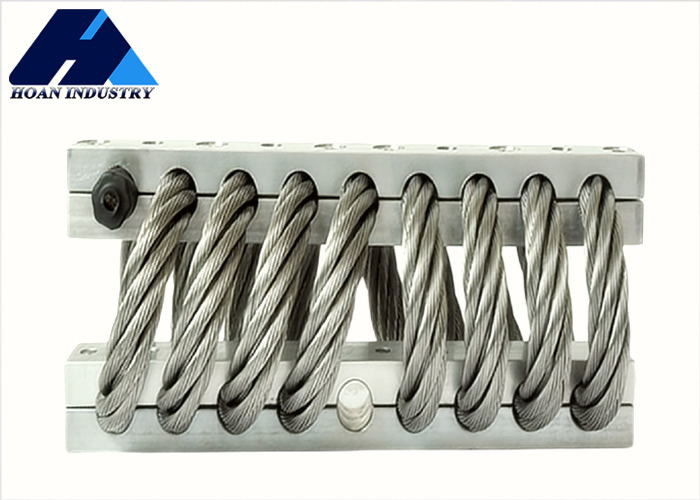

Vibration Shock Control JGX-2228 Compact Wire Rope Isolator 0

Mounting Options

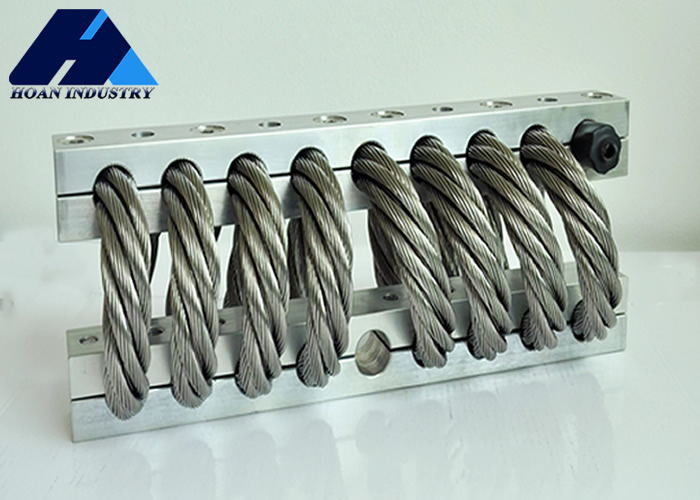

Vibration Shock Control JGX-2228 Compact Wire Rope Isolator 1

SIZE PARAMETER:

Model

“H”±3.30

“W”

Unit weight

Mounting options

Thru hole(mm)

Thread(mm)

C'sink

JGX-2228D-1250B	133	140	8.4	C,D	∅13.5+0.13 -0.38	M12×1.75	90
JGX-2228D-960B	152	165	9.53	A,B,C,E,S
JGX-2228D-860B	159	178	9.9
JGX-2228D-665B	191	210	11.5
JGX-2228D-550B	216	235	12.7
JGX-2228D-380B	216	286	13.9

Vertical load

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness

KN/m)

Impact stiffness(KN/m)

1	JGX-2228D-1250B	1250	50.8	2362	1010
2	JGX-2228D-960B	960	67.3	1513	585
3	JGX-2228D-860B	860	74.9	1270	469
4	JGX-2228D-665B	665	102.9	800	263
5	JGX-2228D-550B	550	125.7	585	180
6	JGX-2228D-380B	380	125.7	377	138

45 ° directional load:

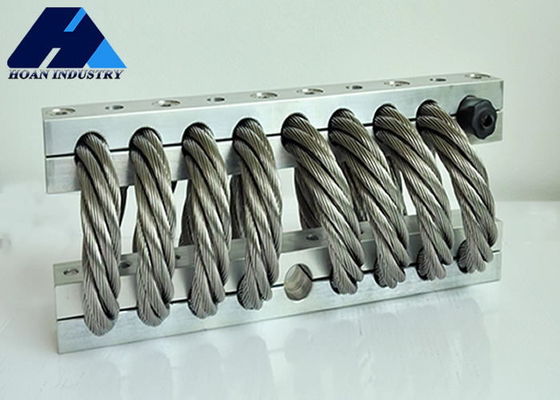

Vibration Shock Control JGX-2228 Compact Wire Rope Isolator 3

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness(KN/m)

Impact stiffness(KN/m)

1	JGX-2228D-1250B	889.8	72.4	1348	503
2	JGX-2228D-960B	680.6	96.5	860	289
3	JGX-2228D-860B	613.3	105.4	718	235
4	JGX-2228D-665B	454.1	144.8	448	131
5	JGX-2228D-550B	331.6	177.8	327	89
6	JGX-2228D-380B	215.3	177.8	212	70

Lateral load:

Vibration Shock Control JGX-2228 Compact Wire Rope Isolator 4

1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
