Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0160D-3.6A
JGX-0160 series

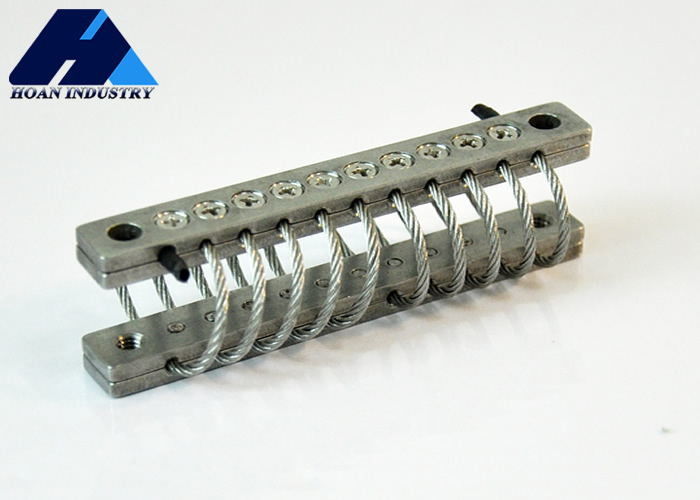

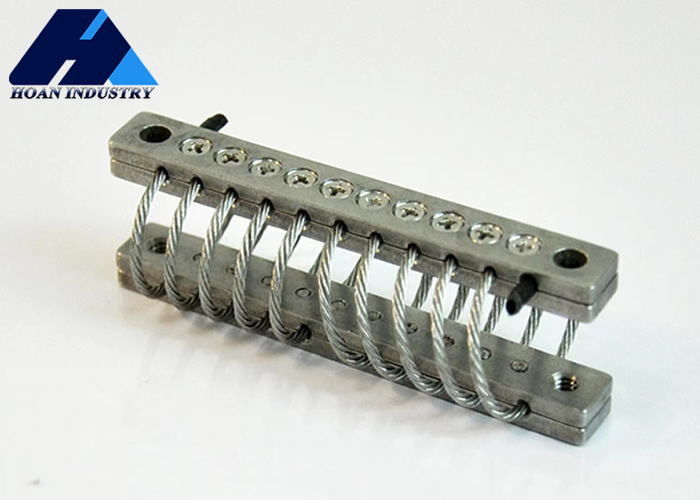

Wire rope shock isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.
With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope shock isolators are environmentally stable,high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.
The JGX-0160D-3.6A wire rope shock isolators is the kind type isolators from the family JGX-0160 series. The stainless steel cables and retaining bars of the JGX-0160D-3.6A provides amazing vibration isolation any time in use.
JGX-0160D-3.6A is the new designed 10 loops 1.6mm diameter wire rope shock isolators with max static load of 3.6kg, especially used in the precise instruments for the noise attenuation for both military and industry. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.
Nowadays, the JGX-0160 series isolators are used widely in the field of highway transportation, marine, shipborne, navy,photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
Specification
Product Applications
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Ship board |
Electronics, Computers, |
Explosive blast, Storms |
Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection |
| Rough Terrain Vehicls | Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment | Tank artillery, Computer controls, Electronics | Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
Company Profile
Xi'an Hoan Microwave Co., Ltd. was established in 2005. The company is located in the High-tech Zone of Xi'an. The company covers an area of 800 square meters, including 500 square meters of production area and 300 square meters of office area. It is a professional enterprise specializing in the development, production, sales and technical services of civilian electronic components, cable assemblies, high-precision electrical connectors, vibration isolators, microwave antennas, waterproof breathable valves and other products.Our products are widely used in electronic equipment, aviation communications, postal and telecommunications, civilian electrical appliances, instrumentation and other technical fields. The products are sold all over the country. At present, there are more than 100 civilian customers.
Hoan has obtained ISO9001:2005 quality management system certification and GJB equipment quality management system certification.Since its establishment, the company has strictly organized and implemented operations in accordance with the standard requirements of the quality management system. The product quality is stable and reliable. There have been no customer complaints about quality and leakage accidents, and no production safety accidents.
HOAN primarily develops vibration isolators, LC filters, connectors, and microwave communication antennas based on GJB standards. We also design custom products to meet specific customer requirements. Hundreds of high-demand clients have established long-term partnerships with us. In addition to independent product development, HOAN actively fosters collaboration between industry,academia, and research institutions.
