JGX-0160 Series All-Metal Construction Wire Rope Vibration Isolator for Environmental Stability

JGX-0160 Series All-Metal Construction Wire Rope Vibration Isolator for Environmental Stability

Environmental Stability Wire Rope Vibration Isolator

JGX-0160 Wire Rope Vibration Isolator

Metal Construction Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0160D-2.2A

Contact Us
Request A Quote
Product Details
Size:
Custom Size
Color:
Black
Load Capacity:
500-5000 Lbs
Marketing Type:
Hot Product 2019
Resonant Frequency:
10-30 Hz
High:
216mm
Damping Ratio:
0.5
Isolation Efficiency:
95%
Function:
Anti Shock
Application:
Industrial, Marine, Aerospace
Corrosion Resistance:
High
Port:
Xi'an
Highlight:

Environmental Stability Wire Rope Vibration Isolator

,

JGX-0160 Wire Rope Vibration Isolator

,

Metal Construction Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Price
$24/pieces 4-199 pieces
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-0160 series

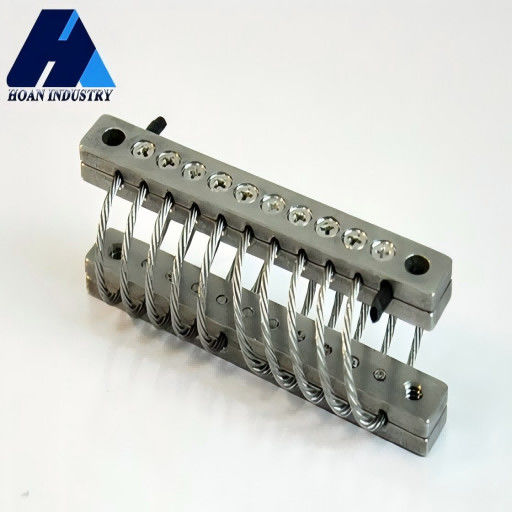

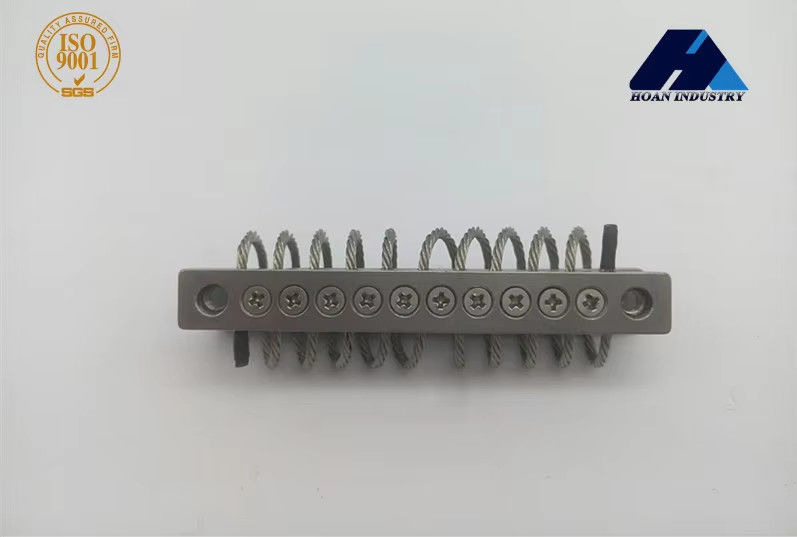

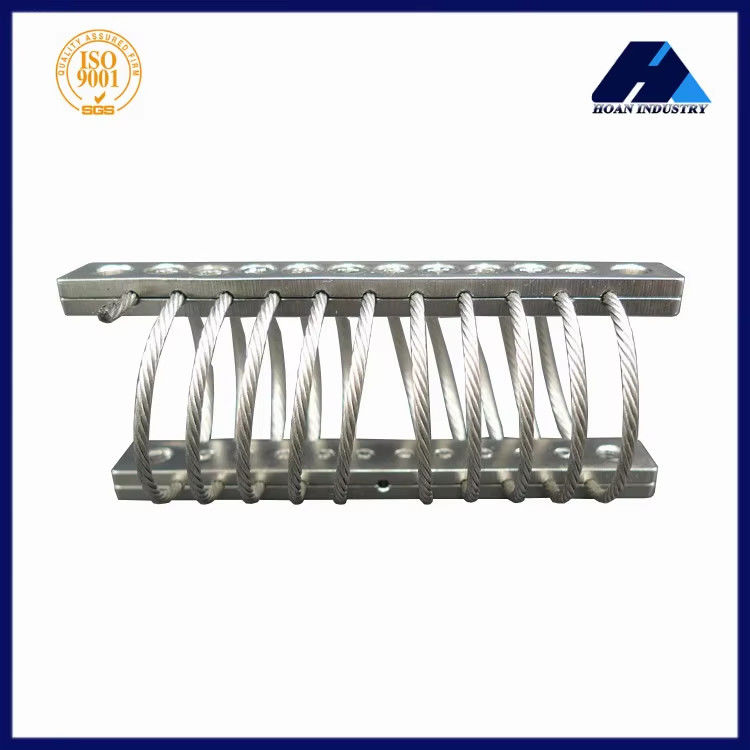

Wire rope shock isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope shock isolators are environmentally stable,
high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

The JGX-0160D-2.2A wire rope shock isolators is the kind type isolators from the family JGX-0160 series. The stainless steel cables and retaining bars of the JGX-0160D-2.2A provides amazing vibration isolation any time in use.

JGX-0160D-2.2A is the new designed 10 loops 1.6mm diameter wire rope shock isolators with max static load of 2.2kg, especially used in the precise instruments for the noise attenuation for both military and industry. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

Nowadays, the JGX-0160 series isolators are used widely in the field of highway transportation, marine, shipborne, navy,
photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Curve No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KNm)

Ks(shock)

(KNm)

1 JGX-0160D-4.8A 3.4 11.7 20 11.4
2 JGX-0160D-3.6A 2.4 14.7 14 7.0
3 JGX-0160D-3.2A 2.4 20.8 11 4.7
4 JGX-0160D-2.7A 1.8 24.9 7.0 3.0
5 JGX-0160D-2.2A 1.8 26.9 6.1 2.6
6 JGX-0160D-2A 1.6 31.0 5.3 1.9

JGX-0160 Series All-Metal Construction Wire Rope Vibration Isolator for Environmental Stability 0

JGX-0160 Series All-Metal Construction Wire Rope Vibration Isolator for Environmental Stability 1JGX-0160 Series All-Metal Construction Wire Rope Vibration Isolator for Environmental Stability 2



Product Applications

Applications Typical Equipment Protection From Operational Advantages
Ship board

Electronics,

Computers,
Machinery

Explosive blast,
Inherent vibration,

Storms

Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicls Instrumentation, Generators,
Electronics
Rough terrain,
Poor road conditions,
Collision
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering,
Hard landings, Turbulent air
Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment

Centrifuge,

Dryers,

Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment Tank artillery, Computer controls, Electronics Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments
