Stainless Steel Material JGX-0160D-2A Durable Wire Rope Vibration Isolator For Photographic Equipment

Name: Stainless Steel Material JGX-0160D-2A Durable Wire Rope Vibration Isolator For Photographic Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0160D-2A
Availability: InStock

Brand Name:	Hoan
Model Number:	JGX-0160D-2A
MOQ:	4 piences
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	4，pience，7

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Relative Product:

Backdraft Damper

Wire Rope Material:

Galvanized Steel

After Warranty Service:

Online Support

Structure:

Helical

Working Temperature:

-55 ~ +120

Natural Frequency:

7Hz-15Hz

Operating Temperature:

-40℃ To 80℃

Installation Type:

Horizontal/Vertical

Color:

Blackish Green And Silver Pai

Width:

210mm

Model:

JGX-0488S-20A

Size:

To Machine

Port:

Xi'an Or Specified

Application:

Industrial/Commercial

Supply Ability:

4，pience，7

Highlight:

Photographic Equipment Wire Rope Vibration Isolator

Durable Wire Rope Vibration Isolator

Stainless Steel Wire Rope Vibration Isolator

Product Description

JGX-0160-2A

Wire rope shock isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope shock isolators are environmentally stable,
high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

The JGX-0160D-2A wire rope shock isolators is the kind type isolators from the family JGX-0160 series. The stainless steel cables and retaining bars of the JGX-0160D-2A provides amazing vibration isolation any time in use.

JGX-0160D-2A is the new designed 10 loops 1.6mm diameter wire rope shock isolators with max static load of 2kg, especially used in the precise instruments for the noise attenuation for both and industry. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

Nowadays, the JGX-0160 series isolators are used widely in the field of highway transportation, marine, shipborne, navy,

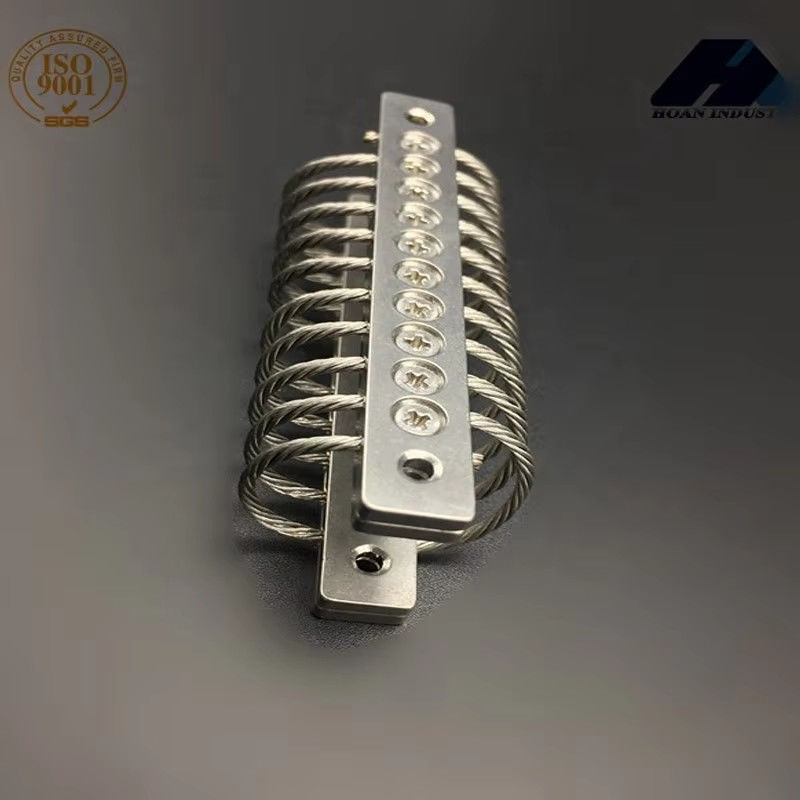

photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions. Stainless Steel Material JGX-0160D-2A Durable Wire Rope Vibration Isolator For Photographic Equipment 0

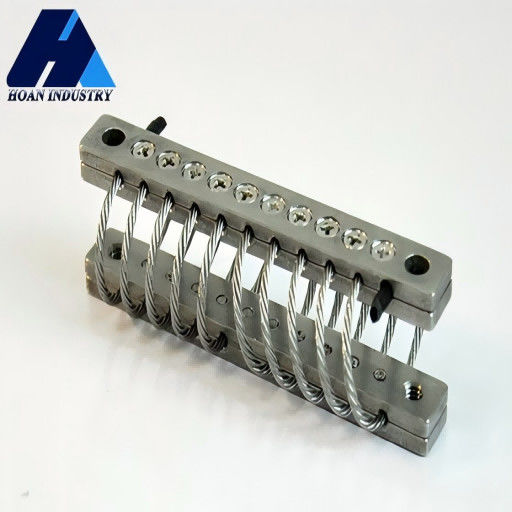

Stainless Steel Material JGX-0160D-2A Durable Wire Rope Vibration Isolator For Photographic Equipment 1

Curve No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv (vibration) (KNm)	Ks(shock) (KNM)
1	JGX-0160D-4.8A	4.8	8.6	36	22
2	JGX-0160D-3.6A	3.6	9.7	25	16
3	JGX-0160D-3.2A	3.2	14.7	17	8.8
4	JGX-0160D-2.7A	2.7	17.8	12	6.1
5	JGX-0160D-2.2A	2.2	18.8	11	5.3
6	JGX-0160D-2A	2.0	21.8	7.9	3.9

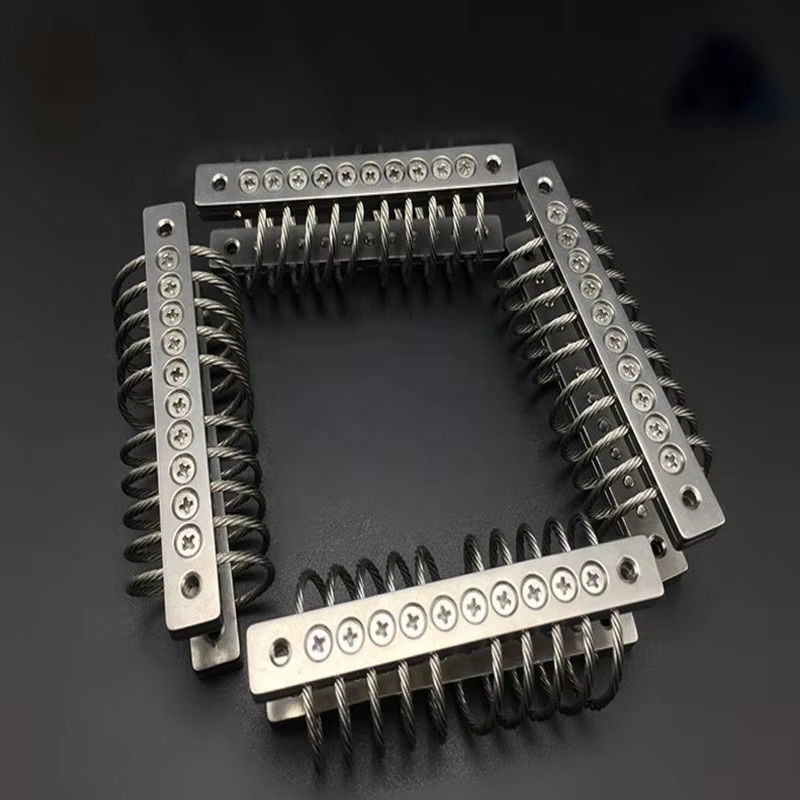

Stainless Steel Material JGX-0160D-2A Durable Wire Rope Vibration Isolator For Photographic Equipment 2

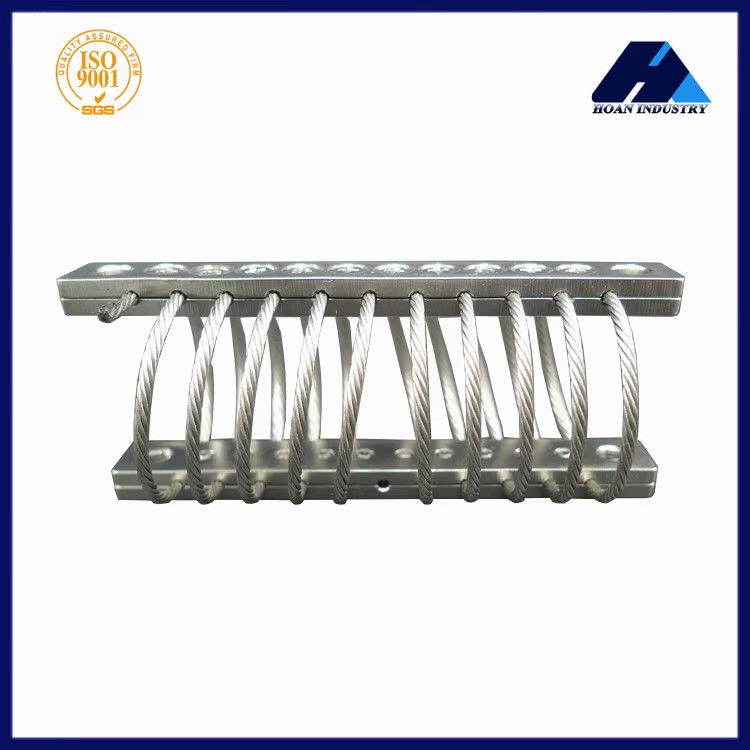

Stainless Steel Material JGX-0160D-2A Durable Wire Rope Vibration Isolator For Photographic Equipment 3

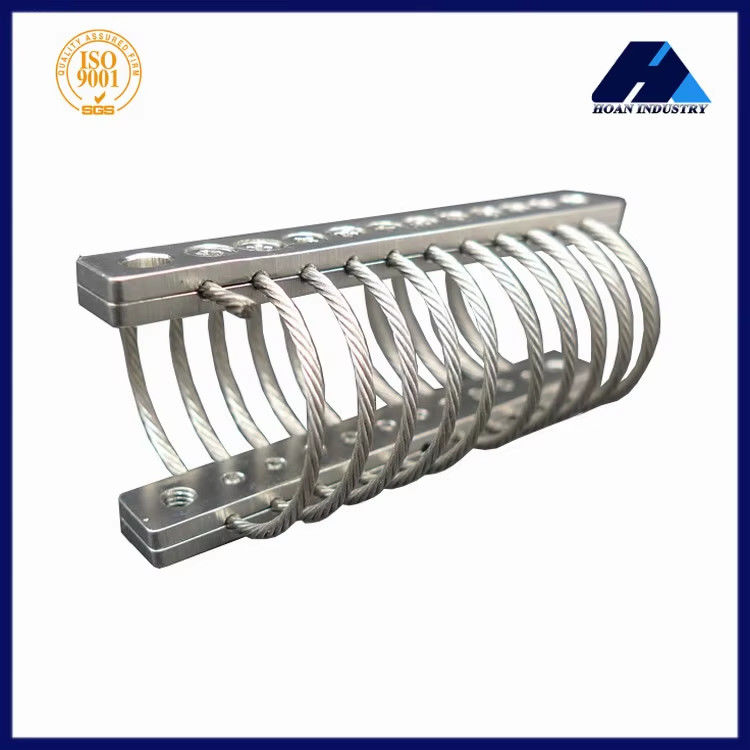

Stainless Steel Material JGX-0160D-2A Durable Wire Rope Vibration Isolator For Photographic Equipment 4

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Ship board	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicls	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays.
