Wire Rope Vibration Isolator JGX-0320D-22A High-Performance Shock And Vibration Isolation For Precise Instruments Xi An

Wire Rope Vibration Isolator JGX-0320D-22A High-Performance Shock And Vibration Isolation For Precise Instruments Xi An

Shock Wire Rope Vibration Isolator

High Performance Wire Rope Vibration Isolator

Precise Instruments Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0320D-22A

Contact Us
Request A Quote
Product Details
Type:
Metal And Mesh Isolator
Usage:
Industrial Machinery
Corrosion Resistance:
Yes
Natural Frequency:
7Hz-15Hz
Color:
Black
Packing:
Standard Packing
Showroom Location:
None
Model:
JGX-0480D-50A
Mounting Holes:
M8
Overall Width:
50mm
After Warranty Service:
Online Support
Characteristic:
Wide Working Frequency, Long Li
Highlight:

Shock Wire Rope Vibration Isolator

,

High Performance Wire Rope Vibration Isolator

,

Precise Instruments Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Price
$37/pieces 4-199 pieces
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-0320 series

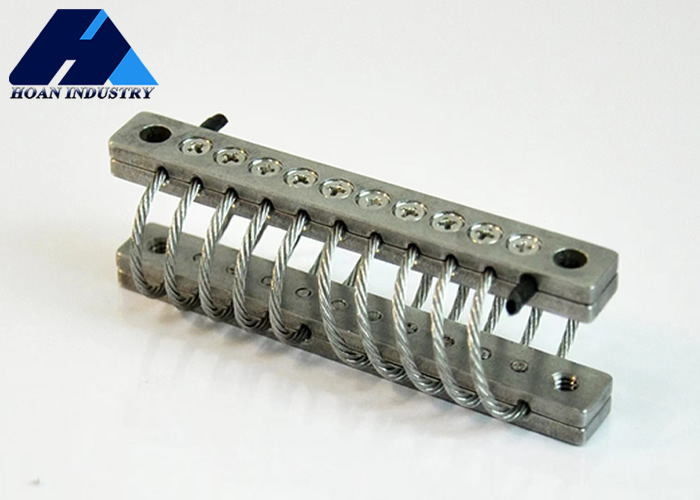

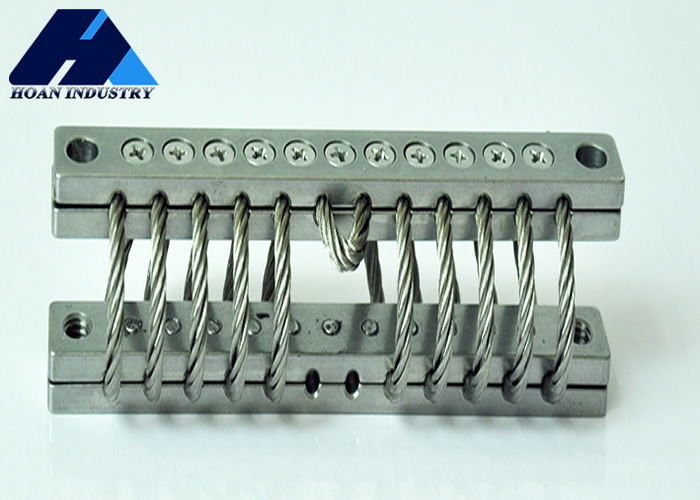

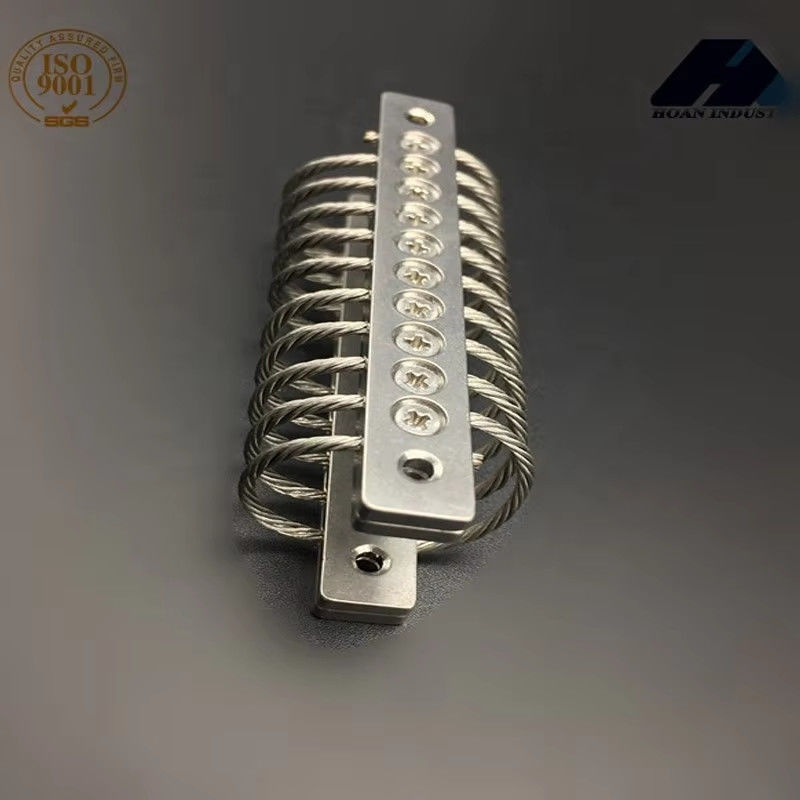

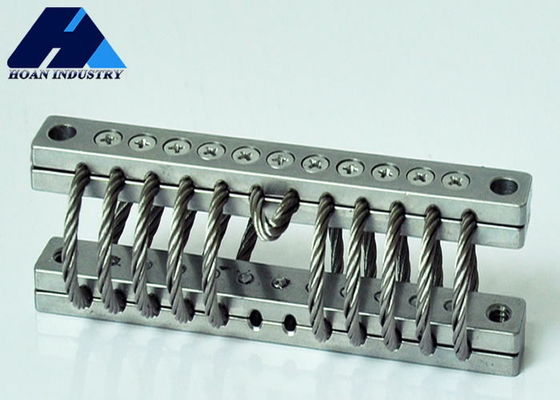

Wire isolation mounts are also named of wire rope isolators, which are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable,high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

JGX-0320D-22A is the new designed 10 loops 3.2mm diameter model with max static load of 22kg, especially used in the precise instruments for the noise attenuation.

With stainless steel material, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.

The wire isolation mounts are now widely used in the field of military vehicles, armored cars,launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.



Wire Rope Vibration Isolator JGX-0320D-22A High-Performance Shock And Vibration Isolation For Precise Instruments Xi An 0Wire Rope Vibration Isolator JGX-0320D-22A High-Performance Shock And Vibration Isolation For Precise Instruments Xi An 1

No. Model

Max Static Load

(kg)

Max Defelction

(mm)

Kv(vibration)

(KNm)

Ks(Shock)

(KNm)

1 JGX-0320D-22A 22 9.7 154 91
2 JGX-0320D-20A 20 11.7 124 68
3 JGX-0320D-17A 17 13.7 95 51
4 JGX-0320D-16A 16 16.8 78 39
5 JGX-0320D-14.5A 14.5 18.8 67 32
6 JGX-0320D-13.5A 13.5 21.8 57 25
7 JGX-0320D-12A 12 23.9 46             21



Wire Rope Vibration Isolator JGX-0320D-22A High-Performance Shock And Vibration Isolation For Precise Instruments Xi An 2Wire Rope Vibration Isolator JGX-0320D-22A High-Performance Shock And Vibration Isolation For Precise Instruments Xi An 3Wire Rope Vibration Isolator JGX-0320D-22A High-Performance Shock And Vibration Isolation For Precise Instruments Xi An 4







Applications Typical Equipment Protection From Operational Advantages
Ship board

Electronics,

Computers,
Machinery

Explosive blast,
Inherent vibration,

Storms

Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicls Instrumentation, Generators,
Electronics
Rough terrain,
Poor road conditions,
Collision
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering,
Hard landings, Turbulent air
Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment

Centrifuge,

Dryers,

Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment Tank artillery, Computer controls, Electronics Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



*The material of the mounting splint *

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
