Corrosion Resistant JGX-0320 Series Wire Rope Vibration Isolator For Extreme Conditions
Product Specifications
| Attribute | Value |
| Warranty | 1 Year |
| Mounting Orientation | Vertical |
| Core Components | Engine, Gear |
| Working Temperature | -55 ~ +120 |
| Shape | Cylindrical |
| Packing | Standard Packing |
| Application | Industrial, Aerospace, Marine, Automotive |
| Model | GR SERIERS |
| Isolation Efficiency | Up to 90% |
| Material | Stainless Steel |
| Color | Blackish Green and Silver Pai |
| Machinery Test Report | Not Available |
| Damping Ratio | 0.5 |
| Design Style | Industrial |
Product Description

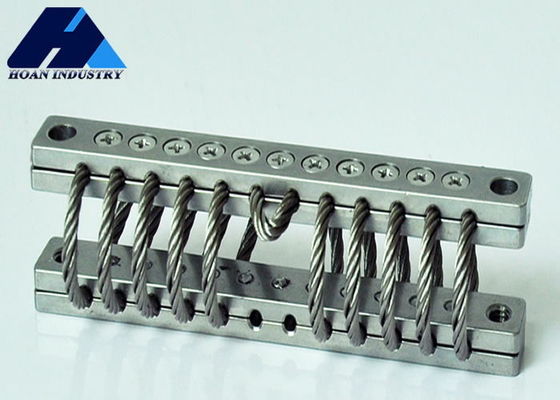

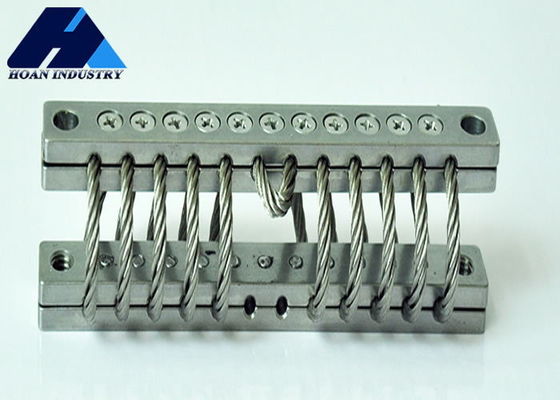

JGX-0320 series wire isolation mounts, also known as wire rope isolators, feature stainless steel stranded cable threaded through aluminum alloy retaining bars for effective shock and vibration isolation.
With corrosion-resistant, all-metal construction, these environmentally stable isolators deliver high-performance shock and vibration isolation unaffected by temperature extremes, chemicals, oils, ozone, and abrasives.

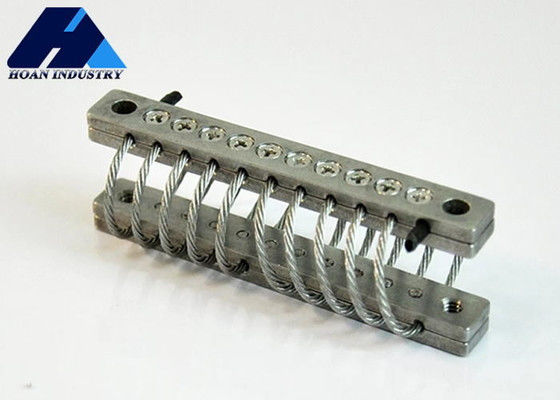

JGX-0320D-17A is a newly designed model with 10 loops and 3.2mm diameter, offering a maximum static load of 17kg, ideal for precise instruments requiring noise attenuation.
The stainless steel construction provides excellent waterproof, anti-corrosion, and durability performance.
These wire rope isolators are widely used in military vehicles, armored cars, launchers, highway transportation, marine applications, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, and other demanding working conditions.
Technical Specifications
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | Kv(vibration) (KNm) | Ks(Shock) (KNm) |
| 1 | JGX-0320D-22A | 22 | 9.7 | 154 | 91 |
| 2 | JGX-0320D-20A | 20 | 11.7 | 124 | 68 |
| 3 | JGX-0320D-17A | 17 | 13.7 | 95 | 51 |
| 4 | JGX-0320D-16A | 16 | 16.8 | 78 | 39 |
| 5 | JGX-0320D-14.5A | 14.5 | 18.8 | 67 | 32 |
| 6 | JGX-0320D-13.5A | 13.5 | 21.8 | 57 | 25 |
| 7 | JGX-0320D-12A | 12 | 23.9 | 46 | 21 |
Applications and Operational Advantages
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Ship board | Electronics, Computers, Machinery | Explosive blast, Inherent vibration, Storms | Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles | Instrumentation, Generators, Electronics | Rough terrain, Poor road conditions, Collision | Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air | Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics | Transit, Handling drop, Loading/Unloading | Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment | Centrifuge, Dryers, Pumps | Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness | Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment | Tank artillery, Computer controls, Electronics | Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment | Mechanical equipment necessary for patient care | Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys | Chimneys, Scrubbers, Measuring devices | Wind causing resonant frequencies, Stack gas causing turbulence near scrubber | Maintenance-free, Temperature extremes, Corrosive environments |
Material Options
The mounting splint material can be selected as Stainless Steel or Aluminum.
Surface Treatment Options for Aluminum Alloy Plywood
- White Anodizing: Hardens the aluminum surface while maintaining its natural color. This is the standard surface treatment for aluminum mounting bars.
- Hard Anodizing: Provides significantly greater hardness than white anodizing, resulting in a darker surface finish. Recommended for complex or demanding working conditions.
