JGX-0320D-16A Wire Isolator Ideal For Highway Transportation And Aerial Equipment

JGX-0320D-16A Wire Isolator Ideal For Highway Transportation And Aerial Equipment

Highway Transportation Wire Isolator

Aerial Equipment Wire Isolator

JGX-0320D-16A Wire Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0320D-16A

Contact Us
Request A Quote
Product Details
Isolation Frequency:
5Hz
Corrosion Resistance:
High
Mounting Orientation:
Vertical
Material:
Stainless Steel
Shock Rsistance:
30g/11ms
Condition:
New
Showroom Location:
None
Machinery Test Report:
Provided
Design Style:
Industrial
Load Capacity:
10-1000kg
Shock Absorption:
Yes
Function:
Damping
Vibration Frequency:
10-100Hz
Packing:
Standard Packing
After Warranty Service:
Online Support
Highlight:

Highway Transportation Wire Isolator

,

Aerial Equipment Wire Isolator

,

JGX-0320D-16A Wire Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Price
$34/pieces 4-199 pieces
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-0320 series

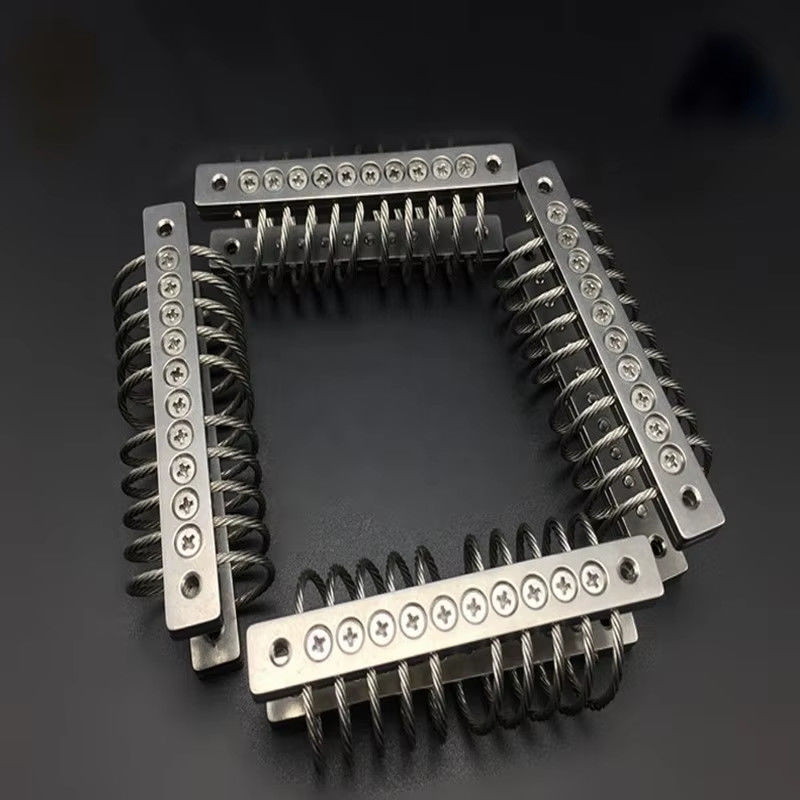

Wire isolation mounts are also named of wire rope isolators, which are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable,high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

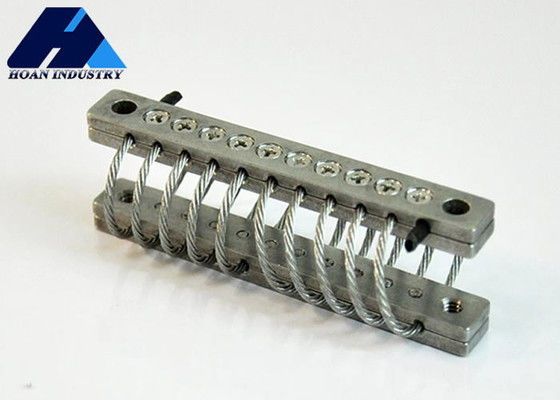

JGX-0320D-16A is the new designed 10 loops 3.2mm diameter model with max static load of 16kg, especially used in the precise instruments for the noise attenuation.

With stainless steel material, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.

The wire isolation mounts are now widely used in the field of military vehicles, armored cars,launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

JGX-0320D-16A Wire Isolator Ideal For Highway Transportation And Aerial Equipment 0

JGX-0320D-16A Wire Isolator Ideal For Highway Transportation And Aerial Equipment 1

No. Model

Max Static Load

(kg)

Max Defelction

(mm)

Kv(vibration)

(KNm)

Ks(Shock)

(KNm)

1 JGX-0320D-22A 22 9.7 154 91
2 JGX-0320D-20A 20 11.7 124 68
3 JGX-0320D-17A 17 13.7 95 51
4 JGX-0320D-16A 16 16.8 78 39
5 JGX-0320D-14.5A 14.5 18.8 67 32
6 JGX-0320D-13.5A 13.5 21.8 57 25
7 JGX-0320D-12A 12 23.9 46             21

JGX-0320D-16A Wire Isolator Ideal For Highway Transportation And Aerial Equipment 2

JGX-0320D-16A Wire Isolator Ideal For Highway Transportation And Aerial Equipment 3

JGX-0320D-16A Wire Isolator Ideal For Highway Transportation And Aerial Equipment 4

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays



*The material of the mounting splint *

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.



FAQ

1.Q:Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

2.Q:Can you customize products for us?
A:Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

3.Q:What is the lead time?
A:Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our factory has stock.

4.Q:Can I get some samples before place order and how long for a sample?
A:Yes, sample order is accepted

5.Q:How is your shipping?
A:1)worldwide shipping service available
2)please contact before order as shipping cost varies time to time.

6.Q:Do you offer discounts for bulk orders?
A:Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
