JGX-0320D-13.5A Wire Rope Vibration Isolator With Max Static Load Of 13.5kg For Precise Instruments

JGX-0320D-13.5A Wire Rope Vibration Isolator With Max Static Load Of 13.5kg For Precise Instruments

JGX-0320D-13.5A Wire Rope Vibration Isolator

13.5A Wire Rope Vibration Isolator

Precise Instruments Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0320D-13.5A

Contact Us
Request A Quote
Product Details
Features:
Anchoring Holes; Oil Resistant
Shock Resistance:
20g/11ms
Applications:
Marine And Industrial Engine Mounts
Working Temperatu:
: -55 ~ +120
Max Static Load:
20-47N(2kg-4.8Kg)
Material:
Stainless Steel
Weight:
0.2kg
Wire Rope Material:
Galvanized Steel
Compression Ratio:
1:2
Shock Rsistance:
20g/11ms
Application:
Widely Be Used On The Small Devices
Machinery Test Report:
Not Available
High:
191mm
Feature:
Durable
Relative Product:
Backdraft Damper
Highlight:

JGX-0320D-13.5A Wire Rope Vibration Isolator

,

13.5A Wire Rope Vibration Isolator

,

Precise Instruments Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Price
$32/pieces 4-199 pieces
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-0320 series

Wire isolation mounts are also named of wire rope isolators, which are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable,high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

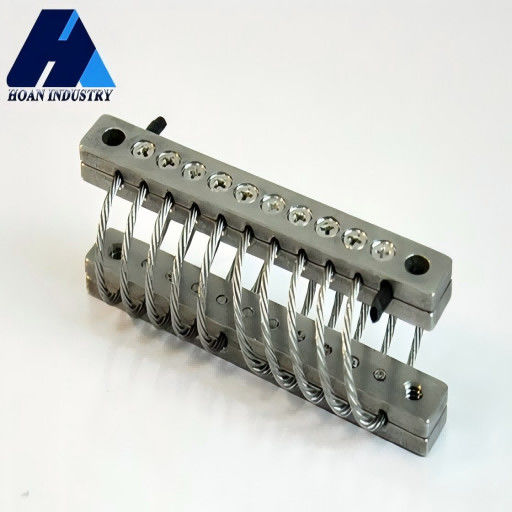

JGX-0320D-13.5A is the new designed 10 loops 3.2mm diameter model with max static load of 13.5kg, especially used in the precise instruments for the noise attenuation.

With stainless steel material, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.

The wire isolation mounts are now widely used in the field of military vehicles, armored cars,launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

JGX-0320D-13.5A Wire Rope Vibration Isolator With Max Static Load Of 13.5kg For Precise Instruments 0

JGX-0320D-13.5A Wire Rope Vibration Isolator With Max Static Load Of 13.5kg For Precise Instruments 1

No. Model

Max Static Load

(kg)

Max Defelction

(mm)

Kv(vibration)

(KNm)

Ks(Shock)

(KNm)

1 JGX-0320D-22A 22 9.7 154 91
2 JGX-0320D-20A 20 11.7 124 68
3 JGX-0320D-17A 17 13.7 95 51
4 JGX-0320D-16A 16 16.8 78 39
5 JGX-0320D-14.5A 14.5 18.8 67 32
6 JGX-0320D-13.5A 13.5 21.8 57 25
7 JGX-0320D-12A 12 23.9 46 21

JGX-0320D-13.5A Wire Rope Vibration Isolator With Max Static Load Of 13.5kg For Precise Instruments 2

JGX-0320D-13.5A Wire Rope Vibration Isolator With Max Static Load Of 13.5kg For Precise Instruments 3

JGX-0320D-13.5A Wire Rope Vibration Isolator With Max Static Load Of 13.5kg For Precise Instruments 4

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays



*The material of the mounting splint *

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
