JGX-0320 series
Wire isolation mounts are also named of wire rope isolators, which are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.
With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable,high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

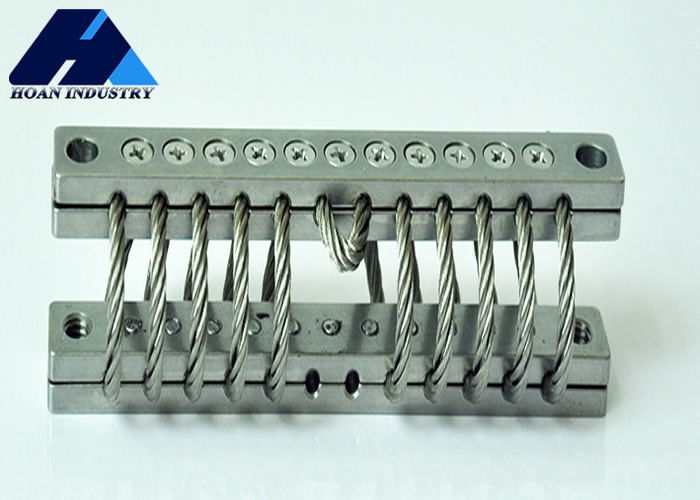

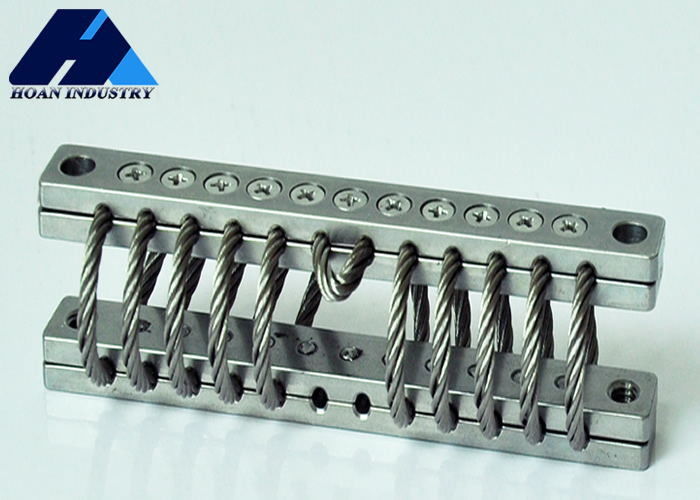

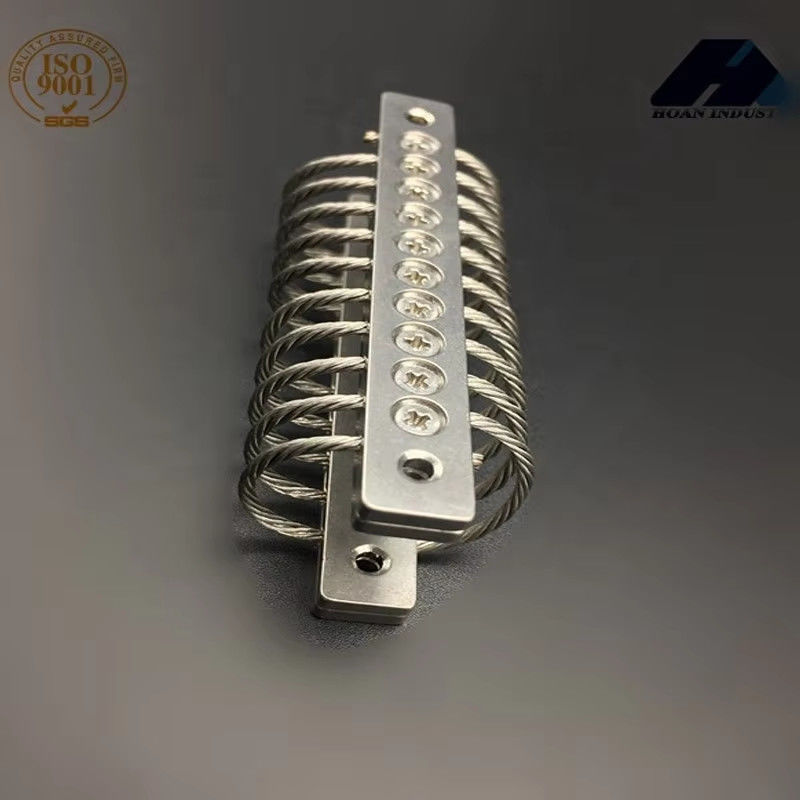

JGX-0320D-12A is the new designed 10 loops 3.2mm diameter model with max static load of 12kg, especially used in the precise instruments for the noise attenuation.
With stainless steel material, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.
The wire isolation mounts are now widely used in the field of military vehicles, armored cars,launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
| No. | Model |
Max Static Load (kg) |
Max Defelction (mm) |
Kv(vibration) (KNm) |
Ks(Shock) (KNm) |
| 1 | JGX-0320D-22A | 22 | 9.7 | 154 | 91 |
| 2 | JGX-0320D-20A | 20 | 11.7 | 124 | 68 |
| 3 | JGX-0320D-17A | 17 | 13.7 | 95 | 51 |
| 4 | JGX-0320D-16A | 16 | 16.8 | 78 | 39 |
| 5 | JGX-0320D-14.5A | 14.5 | 18.8 | 67 | 32 |
| 6 | JGX-0320D-13.5A | 13.5 | 21.8 | 57 | 25 |
| 7 | JGX-0320D-12A | 12 | 23.9 | 46 | 21 |
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Ship board |
Electronics, Computers, |
Explosive blast, Storms |
Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection |
| Rough Terrain Vehicls | Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment | Tank artillery, Computer controls, Electronics | Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
*The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
