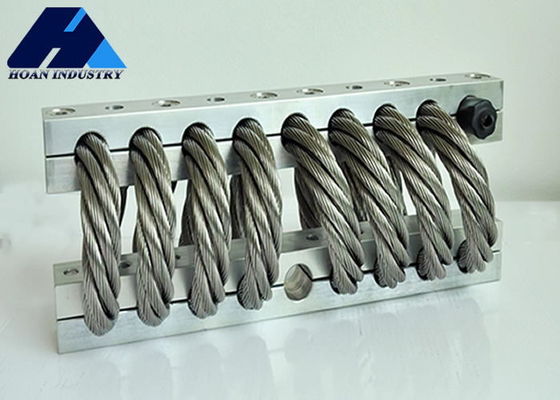

JGX-2228D-550B Durable Wire Rope Vibration Isolator For Aerial And Photographic Equipment

JGX-2228D-550B Durable Wire Rope Vibration Isolator For Aerial And Photographic Equipment

Photographic Equipment Wire Rope Vibration Isolator

Durable Wire Rope Vibration Isolator

Aerial Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-2228D-550B

Contact Us
Request A Quote
Product Details
Natural Frequency:
7Hz-15Hz
Shape:
Cylindrical
Usage:
Air Conditioning Terminal
Isolation Efficiency:
95%
Installation Type:
Vertical
Shock Resistance:
30g/11ms
Model:
JGX-0488S-20A
High:
235mm
Wire Rope Material:
Galvanized Steel
Marketing Type:
New Product 2020
Certifications:
ISO 9001, RoHS
Length:
100mm
Applicable Industries:
Energy & Mining
Installation:
Wall Mounted
Highlight:

Photographic Equipment Wire Rope Vibration Isolator

,

Durable Wire Rope Vibration Isolator

,

Aerial Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-2228 series

Xi’an Hoan’s extensive range of vibration isolators and elastomeric shock mounts, most equipment can be suspended successfully.Examples of common applications are electronic boxes, computers, monitors, radar units and similar. To use the correct equipment for the particular stress of your case, Hoan’s engineers performs the correct shock calculations.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

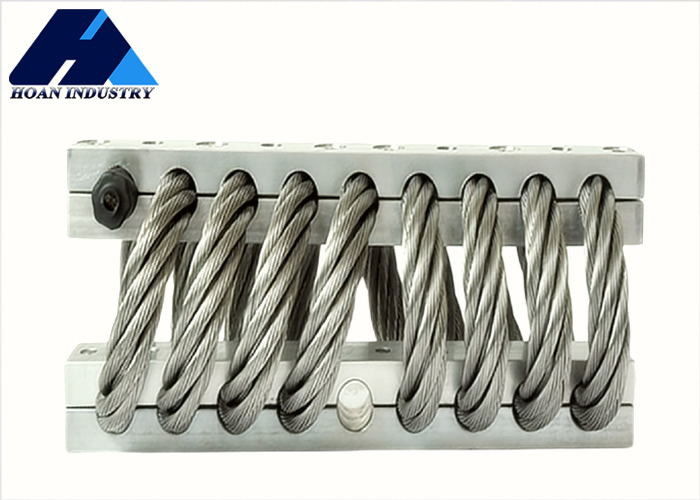

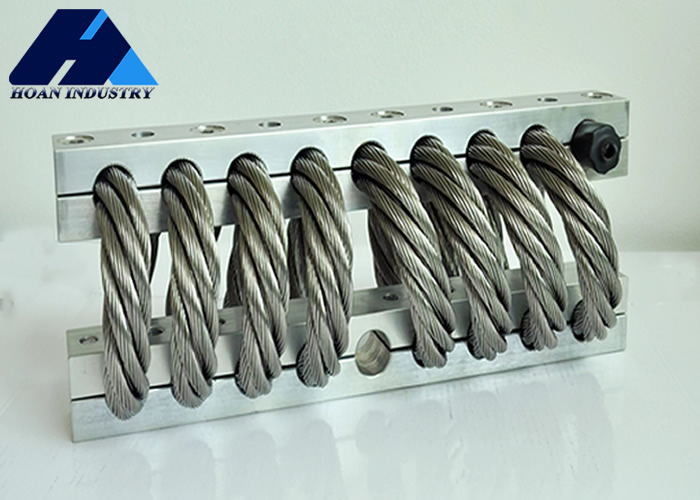

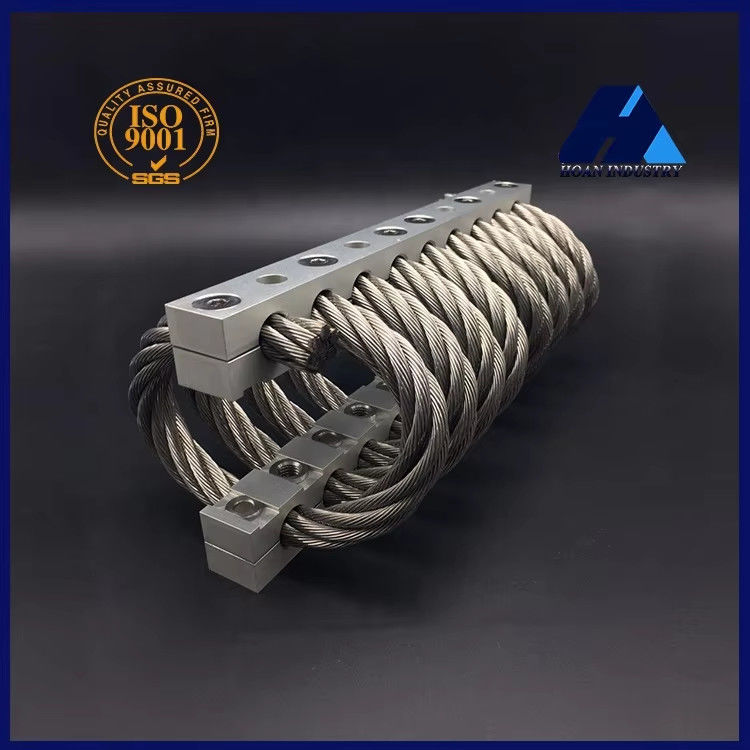

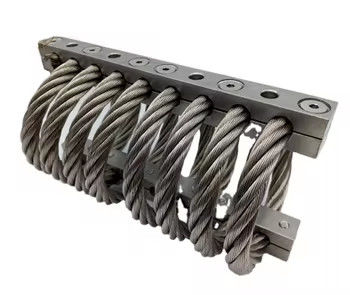

The JGX-2228D-550B wire rope isolator is the kind type isolators from the family JGX-2228 series. The stainless steel cables and retaining bars provides amazing vibration isolation any time in use.

JGX-2228D-1250B is the new designed 8 loops 22.2mm diameter wire rope isolators with max static load of 550kg, especially used in any instruments or systems for mechanical noise attenuation.

The JGX-2228D-550B model is now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation,marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices,mobile electronic devices, cameras or any other needed working conditions.

JGX-2228D-550B Durable Wire Rope Vibration Isolator For Aerial And Photographic Equipment 0

JGX-2228D-550B Durable Wire Rope Vibration Isolator For Aerial And Photographic Equipment 1

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(vibration)

(KNm)

Ks(shock)

(KNm)

1 JGX-2228D-1250B 626.5 53.3 618 618
2 JGX-2228D-960B 361.5 71.1 356 356
3 JGX-2228D-860B 294.9 77.5 291 291
4 JGX-2228D-665B 165.3 108.0 163 163
5 JGX-2228D-550B 113.2 132.1 112 112
6 JGX-2228D-380B 77.6 132.1 77 77

JGX-2228D-550B Durable Wire Rope Vibration Isolator For Aerial And Photographic Equipment 2

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(vibration)

(KNm)

Ks(shock)

(KNm)

1 JGX-2228D-1250B 889.8 72.4 1348 503
2 JGX-2228D-960B 680.6 96.5 860 289
3 JGX-2228D-860B 613.3 105.4 718 235
4 JGX-2228D-665B 454.1 144.8 448 131
5 JGX-2228D-550B 331.6 177.8 327 89
6 JGX-2228D-380B 215.3 177.8 212 70

JGX-2228D-550B Durable Wire Rope Vibration Isolator For Aerial And Photographic Equipment 3

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(vibration)

(KNm)

Ks(shock)

(KNm)

1 JGX-2228D-1250B 1250 50.8 2362 1010
2 JGX-2228D-960B 960 67.3 1513 585
3 JGX-2228D-860B 860 74.9 1270 469
4 JGX-2228D-665B 665 102.9 800 263
5 JGX-2228D-550B 550 125.7 585 180
6 JGX-2228D-380B 380 125.7 377 138



FAQ

Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.


Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days

Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.

Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available

Q: What do you need to know for fast quotation?
A:I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device

Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company.We are located in Xi'an, Shaanxi, China
