Name: JGX-2228D-960B Wire Rope Vibration Isolator 960kg Load Industrial
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-2228D-960B
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-2228D-960B Wire Rope Vibration Isolator 960kg Load Industrial

High-Stress Wire Rope Vibration Isolator

Top-Performing Wire Rope Vibration Isolator

JGX-2228D-960B Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-2228D-960B

Request A Quote

Product Details

Load Range:

3.5-2000KG

Model:

GR SERIERS

Resonant Frequency:

5-10HZ

Structure:

Helical

Usage:

Industrial Machinery

After Warranty Service:

Online Support

Shock Rsistance:

30g/11ms

Natural Frequency:

10-100 Hz

Axial Stiffness:

50N/mm

Wire Rope Material:

Galvanized Steel

Relative Product:

Backdraft Damper

Damping Ratio:

0.5

Design Style:

Industrial

Operating Temperature:

-40 To 200 Degrees Fahrenheit

Feature:

Durable

Highlight:

High-Stress Wire Rope Vibration Isolator

Top-Performing Wire Rope Vibration Isolator

JGX-2228D-960B Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

JGX-2228D-960B Wire Rope Vibration Isolator 960kg Load Industrial

Get Best Price

Stainless Steel Wire Rope Vibration Isolator JGX-0320 Series

Get Best Price

Video

GR Series Wire Rope Vibration Isolator 7Hz-15Hz 20g Shock Resistance

Get Best Price

Video

Stainless Steel Wire Rope Vibration Damper for Defense Energy

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-2228D-960B Top-Performing Wire Rope Vibration Isolator for High-Stress Applications

Product Specifications

Attribute	Value
Load Range	3.5-2000KG
Model	GR SERIES
Resonant Frequency	5-10HZ
Structure	Helical
Usage	Industrial Machinery
Shock Resistance	30g/11ms
Natural Frequency	10-100 Hz
Axial Stiffness	50N/mm
Wire Rope Material	Galvanized Steel
Damping Ratio	0.5
Operating Temperature	-40 to 200 degrees Fahrenheit

Product Description

JGX-2228 Series

Xi'an Hoan's extensive range of vibration isolators and elastomeric shock mounts can successfully suspend most equipment. Common applications include electronic boxes, computers, monitors, radar units, and similar equipment. Our engineers perform precise shock calculations to ensure the correct equipment is selected for your specific stress requirements.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function results from the relative friction between the cable's individual wires and strands. The stainless steel cables offer superb waterproofing, corrosion resistance, and steady performance.

The JGX-2228D-960B wire rope isolator is part of the JGX-2228 series. Its stainless steel cables and retaining bars provide exceptional vibration isolation in all applications.

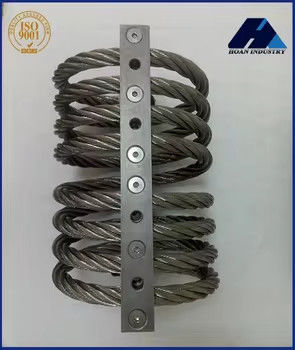

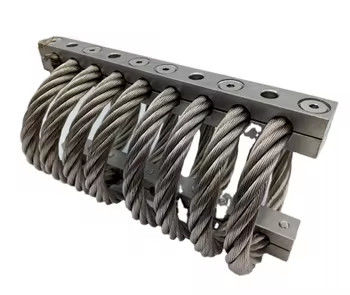

The JGX-2228D-960B features a new design with 8 loops and 22.2mm diameter wire rope, offering a maximum static load of 960kg. It is specially designed for mechanical noise attenuation in various instruments and systems.

This model is widely used in vehicles, armored cars, missiles, launchers, highway transportation, marine applications, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, and other demanding working conditions.

Technical Specifications

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(vibration) (KNm)	Ks(shock) (KNm)
1	JGX-2228D-1250B	626.5	53.3	618	618
2	JGX-2228D-960B	361.5	71.1	356	356
3	JGX-2228D-860B	294.9	77.5	291	291
4	JGX-2228D-665B	165.3	108.0	163	163
5	JGX-2228D-550B	113.2	132.1	112	112
6	JGX-2228D-380B	77.6	132.1	77	77

Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Ship board	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber	Maintenance-free, Temperature extremes, Corrosive environments
