JGX-2228 series
Xi’an Hoan’s extensive range of vibration isolators and elastomeric shock mounts, most equipment can be suspended successfully.Examples of common applications are electronic boxes, computers, monitors, radar units and similar. To use the correct equipment for the particular stress of your case, Hoan’s engineers performs the correct shock calculations.
The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

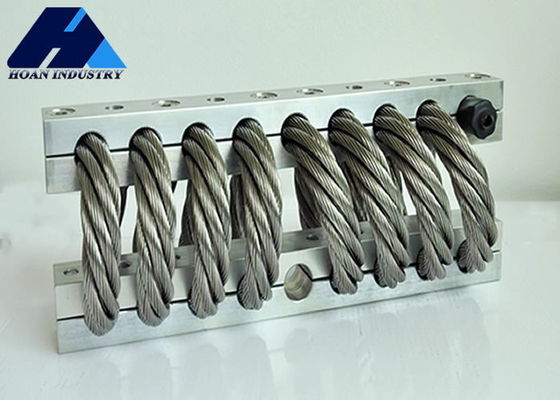

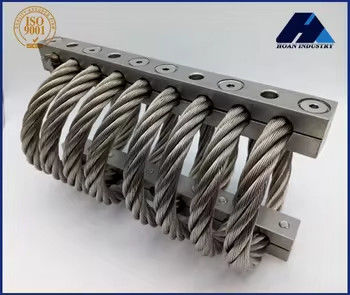

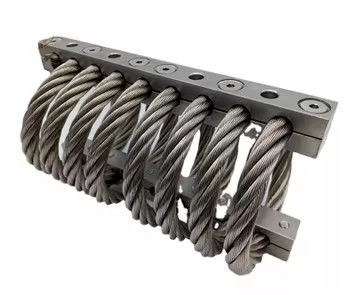

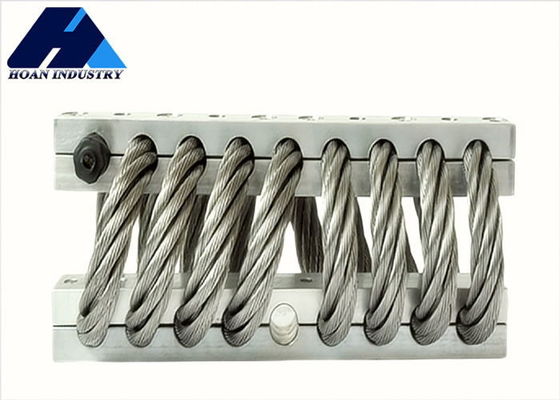

The JGX-2228D-1250B wire rope isolator is the kind type isolators from the family JGX-2228 series. The stainless steel cables and retaining bars provides amazing vibration isolation any time in use.
JGX-2228D-1250B is the new designed 8 loops 22.2mm diameter wire rope isolators with max static load of 1250kg, especially used in any instruments or systems for mechanical noise attenuation.
The JGX-2228D-1250B model is now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation,marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices,mobile electronic devices, cameras or any other needed working conditions.
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-2228D-1250B | 626.5 | 53.3 | 618 | 618 |
| 2 | JGX-2228D-960B | 361.5 | 71.1 | 356 | 356 |
| 3 | JGX-2228D-860B | 294.9 | 77.5 | 291 | 291 |
| 4 | JGX-2228D-665B | 165.3 | 108.0 | 163 | 163 |
| 5 | JGX-2228D-550B | 113.2 | 132.1 | 112 | 112 |
| 6 | JGX-2228D-380B | 77.6 | 132.1 | 77 | 77 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-2228D-1250B | 889.8 | 72.4 | 1348 | 503 |
| 2 | JGX-2228D-960B | 680.6 | 96.5 | 860 | 289 |
| 3 | JGX-2228D-860B | 613.3 | 105.4 | 718 | 235 |
| 4 | JGX-2228D-665B | 454.1 | 144.8 | 448 | 131 |
| 5 | JGX-2228D-550B | 331.6 | 177.8 | 327 | 89 |
| 6 | JGX-2228D-380B | 215.3 | 177.8 | 212 | 70 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-2228D-1250B | 1250 | 50.8 | 2362 | 1010 |
| 2 | JGX-2228D-960B | 960 | 67.3 | 1513 | 585 |
| 3 | JGX-2228D-860B | 860 | 74.9 | 1270 | 469 |
| 4 | JGX-2228D-665B | 665 | 102.9 | 800 | 263 |
| 5 | JGX-2228D-550B | 550 | 125.7 | 585 | 180 |
| 6 | JGX-2228D-380B | 380 | 125.7 | 377 | 138 |
* The material of the wire rope splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
