JGX-0956 Series Vibration Mounts for Defense Precision Guided Missiles and Fuze Systems

JGX-0956 Series Vibration Mounts for Defense Precision Guided Missiles and Fuze Systems

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0956D-110A

Contact Us
Request A Quote
Product Details
Features:
Anchoring Holes; Oil Resis
Installation:
Wall Mounted
Drawing Format:
DWG And PDF
Applicable Industries:
Energy & Mining
Type:
SHOCK ABSORBER
Warranty:
1 Year
Mounting Orientation:
Vertical
Feature:
Durable
Certifications:
ISO 9001, RoHS
After Warranty Service:
Online Support
Model:
JGX-0648
Showroom Location:
None
Material:
Stainless Steel
Wire Rope Material:
Galvanized Steel
Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-0956 series

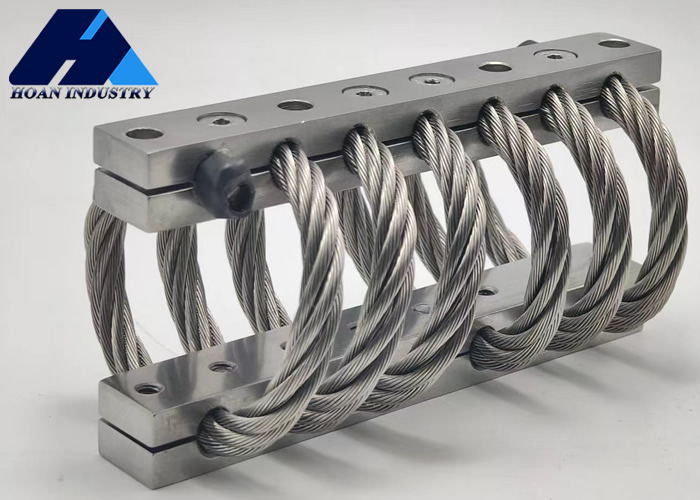

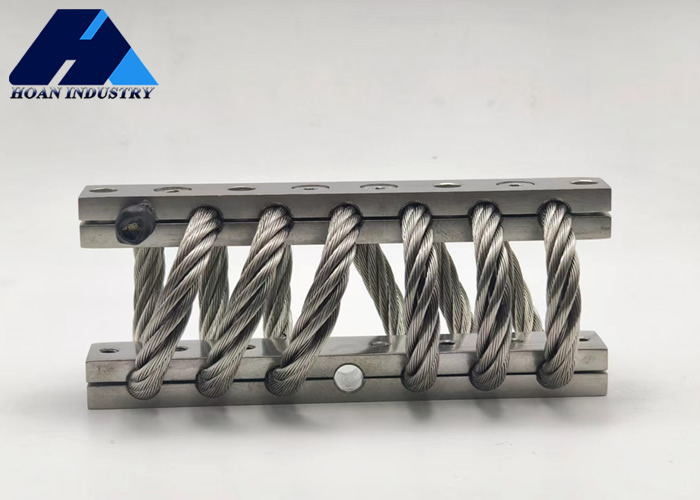

Vibration mounts are comprised of stainless steel stranded cable threaded through alloy or stainless steel retaining bars that are mounted for effective shock and vibration isolation. With versatile mounting options, crimping patterns, and size variation, the vibration mounts can help your systems meet all requirements for industrial, defense, and commercial uses.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

The max static load of the JGX-0956 series is from 32kg to 110kg, with 6 loops 9.5mm diameter wire winded in the mounting bars.

Nowadays, the JGX-0956 sires vibration mouts are widely used in any required field, like defense like land system, air defense systems, precision guided missiles/munitions, ballistic protection system, Fuze system, motor drivers, highway transportation,marine, shipbuilding, navy, energy, electronic sensing devices, mobile electronic devices, etc.

JGX-0956 Series Vibration Mounts for Defense Precision Guided Missiles and Fuze Systems 0



No. Model

Max Static Load

(Kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)
1 JGX-0956D-110A 90.8 47.8 177 77
2 JGX-0956D-104A 84.0 51.8 156 67
3 JGX-0956D-80A 68.1 55.9 120 49
4 JGX-0956D-75A 63.6 63.0 103 40
5 JGX-0956D-72A 61.3 71.1 92 35
6 JGX-0956D-40A 34.8 91.9 44 16
7 JGX-0956D-32A 28.6 95.0 36 12

JGX-0956 Series Vibration Mounts for Defense Precision Guided Missiles and Fuze Systems 1

No. Model

Max Static Load

(Kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)
1 JGX-0956D-110A 70.3 36.1 98 98
2 JGX-0956D-104A 65.8 39.1 84 84
3 JGX-0956D-80A 49.9 42.2 58 58
4 JGX-0956D-75A 47.7 47.2 49 49
5 JGX-0956D-72A 45.4 52.8 44 44
6 JGX-0956D-40A 20.4 68.1 20 20
7 JGX-0956D-32A 15.9 71.1 15 15

JGX-0956 Series Vibration Mounts for Defense Precision Guided Missiles and Fuze Systems 2

No. Model

Max Static Load

(Kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)
1 JGX-0956D-110A 110 34.0 275 135
2 JGX-0956D-104A 104 37.1 240 114
3 JGX-0956D-80A 80 40.1 180 84
4 JGX-0956D-75A 75 44.7 154 68
5 JGX-0956D-72A 72 49.8 137 60
6 JGX-0956D-40A 40 66.0 65 25
7 JGX-0956D-32A 32 68.1 51 19
