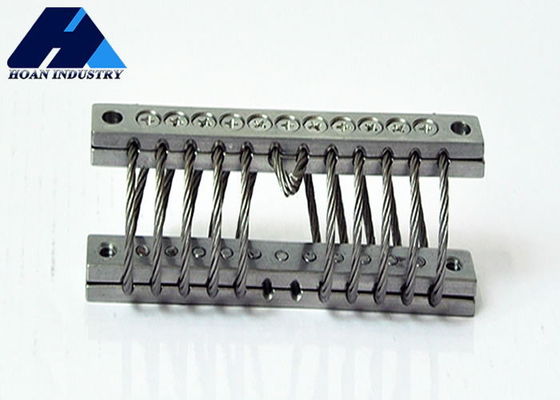

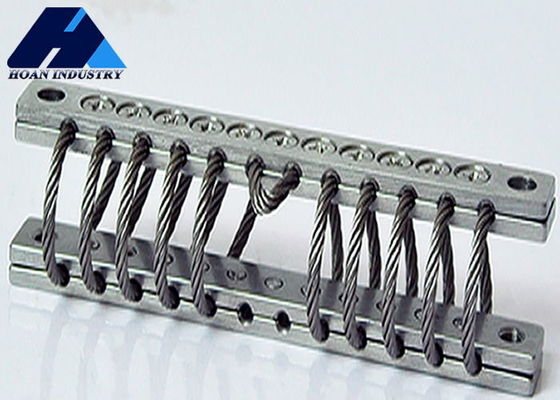

Name: Stainless Steel Wire Rope Vibration Isolator JGX-0240D-8.6A 100kg Load
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0240D-8.6A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

Stainless Steel Wire Rope Vibration Isolator JGX-0240D-8.6A 100kg Load

JGX-0240D-8.6A Wire Rope Vibration Isolator

Corrosion Resistance Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0240D-8.6A

Request A Quote

Product Details

Temperature Range:

-40°F To 200°F

Width:

210mm

Port:

Xi'an Or Specified

Isolation Efficiency:

Up To 90%

Model:

GR SERIERS

High:

191mm

Maximum Load Capacity:

100kg

Color:

Blackish Green And Silver Pai

Installation:

Wall Mounted

Mounting Orientation:

Vertical

Feature:

Durable

Strand Construction:

7 X 19

Max Static Load:

20-47N(2kg-4.8Kg)

Installation Method:

Horizontal Or Vertical

Highlight:

JGX-0240D-8.6A Wire Rope Vibration Isolator

Corrosion Resistance Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

JGX-2228D-960B Wire Rope Vibration Isolator 960kg Load Industrial

Get Best Price

Stainless Steel Wire Rope Vibration Isolator JGX-0320 Series

Get Best Price

Video

GR Series Wire Rope Vibration Isolator 7Hz-15Hz 20g Shock Resistance

Get Best Price

Video

Stainless Steel Wire Rope Vibration Damper for Defense Energy

Get Best Price

86-29-88292913

Contact Now

Product Description

Excellent Corrosion Resistance Wire Rope Vibration Isolator JGX-0240D-8.6A

Product Specifications

Attribute	Value
Temperature Range	-40°F to 200°F
Width	210mm
Port	Xi'an or Specified
Isolation Efficiency	Up to 90%
Model	GR SERIES
Height	191mm
Maximum Load Capacity	100kg
Color	Blackish Green and Silver
Installation	Wall Mounted
Mounting Orientation	Vertical
Feature	Durable
Strand Construction	7 x 19
Max Static Load	20-47N (2kg-4.8Kg)
Installation Method	Horizontal or Vertical

Product Description

JGX-0240 Series
The vibration isolator is designed for precision instruments, featuring a core structure of stainless steel stranded cables precisely calculated and processed to form a high-elasticity, durable spring system. This design enables the isolator to withstand heavy loads while providing excellent vibration isolation, effectively reducing interference and damage from external environmental factors like vibration and shock.

The housing is constructed from high-strength stainless steel or aluminum alloy, providing exceptional mechanical strength, stiffness, and corrosion resistance. This allows for stable long-term operation in harsh environments. The stainless steel material also offers excellent waterproof properties, making it ideal for use in wet or marine environments.

The JGX-0240 series vibration isolators deliver reliable performance across various industries including transportation, marine, shipbuilding, navy, energy, photography equipment, aviation, communication equipment, electronic sensing, and mobile electronic devices. They ensure stable equipment operation and extended service life.

Technical Specifications

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv (vibration) (Kn/m)	Ks (shock) (Knm)
1	JGX-0240D-8.6A	8.6	8.6	65	40
2	JGX-0240D-7.7A	7.7	10.7	51	30
3	JGX-0240D-6.3A	6.3	13.7	37	19
4	JGX-0240D-4.5A	4.5	17.8	23	11
5	JGX-0240D-4A	4.0	20.8	18	7.9
6	JGX-0240D-3.6	3.6	22.9	16	7.0

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv (vibration) (Kn/m)	Ks (shock) (Knm)
1	JGX-0240D-8.6A	6.3	12.7	38	20
2	JGX-0240D-7.7A	5.4	15.7	28	14
3	JGX-0240D-6.3A	4.5	18.8	21	9.6
4	JGX-0240D-4.5A	3.7	25.9	13	5.6
5	JGX-0240D-4A	3.2	27.9	11	4.4
6	JGX-0240D-3.6	2.8	32.0	9.6	3.5

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv (vibration) (Kn/m)	Ks (shock) (Knm)
1	JGX-0240D-8.6A	4.5	9.7	24	24
2	JGX-0240D-7.7A	4.1	11.7	18	18
3	JGX-0240D-6.3A	3.2	13.7	12	12
4	JGX-0240D-4.5A	2.8	18.8	7.0	7.0
5	JGX-0240D-4A	2.2	21.8	5.3	5.3
6	JGX-0240D-3.6	1.8	23.9	4.4	4.4
