JGX-0240 Series Wire Rope Vibration Isolator For Mobile Electronic Devices JGX-0240D-6.3A

JGX-0240 Series Wire Rope Vibration Isolator For Mobile Electronic Devices JGX-0240D-6.3A

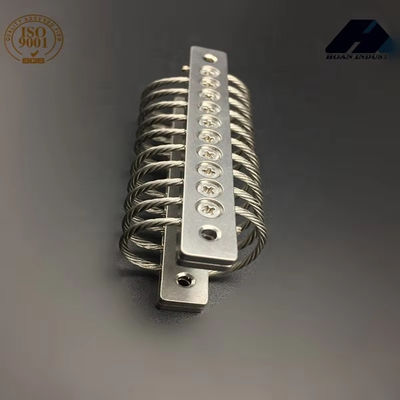

JGX-0240D-6.3A Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0240D-6.3A

Contact Us
Request A Quote
Product Details
Mounting Orientation:
Vertical
Vibration Frequency:
5Hz To 100Hz
Working Temperature:
-55~120
Application:
Industrial Machinery
Marketing Type:
Hot Product 2024
Feature:
Vibration Isolation
Relative Product:
Backdraft Damper
Natural Frequency:
10 Hz
Mounting Type:
Threaded
Installation:
Wall Mounted
Function:
Return Air
Shock Absorption:
Yes
Accessories:
Net
Corrosion Resistance:
High
Highlight:

JGX-0240D-6.3A Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Price
$34/pieces 4-199 pieces
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-0240 Series

Wire rope isolators are comprised of stainless steel stranded cable threaded through stainless steel or aluminum retaining bars that are mounted for effective shock and vibration isolation.

JGX-0240D-6.3A is the new designed 10 loops 2.4mm diameter helical isolators with max static load of 6.3kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

Nowadays, the JGX-0240 series isolators are used widely in the field of vehicles, armored cars, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

JGX-0240 Series Wire Rope Vibration Isolator For Mobile Electronic Devices JGX-0240D-6.3A 0

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Kn/m)

Ks(shock)

(Knm)

1 JGX-0240D-8.6A 8.6 8.6 65 40
2 JGX-0240D-7.7A 7.7 10.7 51 30
3 JGX-0240D-6.3A 6.3 13.7 37 19
4 JGX-0240D-4.5A 4.5 17.8 23 11
5 JGX-0240D-4A 4.0 20.8 18 7.9
6 JGX-0240D-3.6 3.6 22.9 16 7.0

JGX-0240 Series Wire Rope Vibration Isolator For Mobile Electronic Devices JGX-0240D-6.3A 1

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Kn/m)

Ks(shock)

(Knm)

1 JGX-0240D-8.6A 6.3 12.7 38 20
2 JGX-0240D-7.7A 5.4 15.7 28 14
3 JGX-0240D-6.3A 4.5 18.8 21 9.6
4 JGX-0240D-4.5A 3.7 25.9 13 5.6
5 JGX-0240D-4A 3.2 27.9 11 4.4
6 JGX-0240D-3.6 2.8 32.0 9.6 3.5

JGX-0240 Series Wire Rope Vibration Isolator For Mobile Electronic Devices JGX-0240D-6.3A 2



No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Kn/m)

Ks(shock)

(Knm)

1 JGX-0240D-8.6A 4.5 9.7 24 24
2 JGX-0240D-7.7A 4.1 11.7 18 18
3 JGX-0240D-6.3A 3.2 13.7 12 12
4 JGX-0240D-4.5A 2.8 18.8 7.0 7.0
5 JGX-0240D-4A 2.2 21.8 5.3 5.3
6 JGX-0240D-3.6 1.8 23.9 4.4 4.4



* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
