JGX-0240 Series Stainless Steel Wire Rope Vibration Isolator For Precision Instruments

JGX-0240 Series

Wire rope vibration isolator is a highly efficient vibration damping equipment that is widely used in various industrial fields. It is mainly composed of stainless steel stranded cables and is supported by stainless steel or aluminum holding rods for effective vibration isolation and damping.

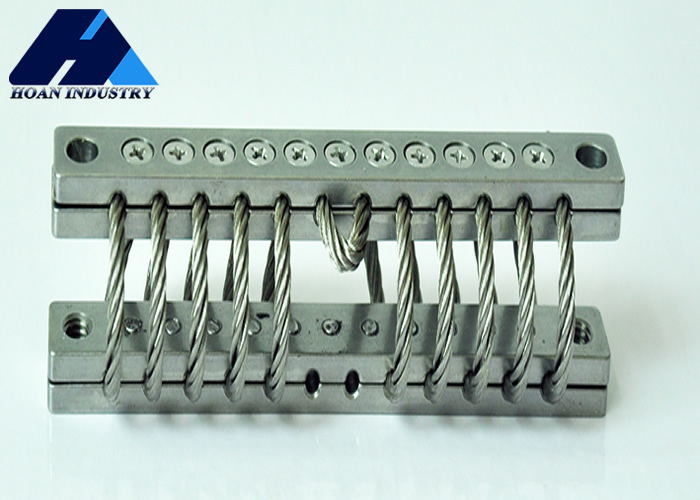

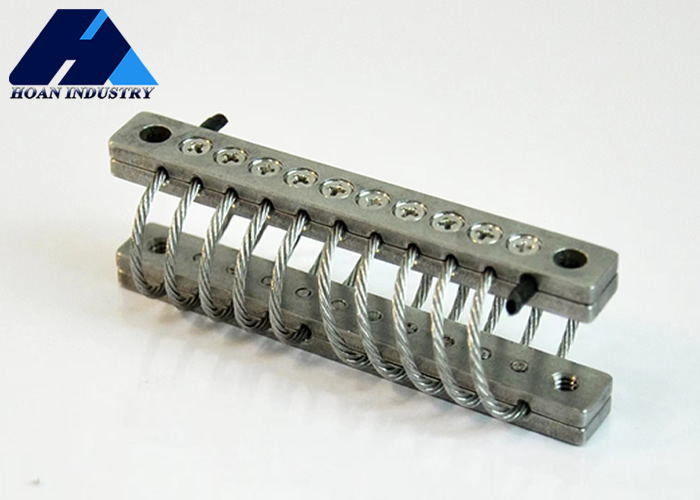

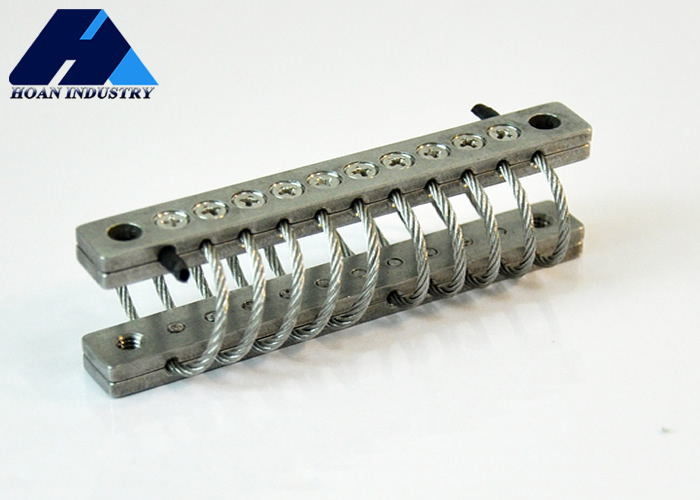

JGX-0240D-4A is a new design 10-turn 2.4mm diameter spiral isolator. It is manufactured with high-quality stainless steel materials for excellent waterproofing, corrosion resistance, and durability. The choice of this material ensures that the isolator maintains stable performance in a variety of harsh environments.

The JGX-0240D-4A has a maximum static load of 4 kg, which means it is able to withstand large weights while maintaining good vibration isolation. This characteristic is particularly suitable for use in precision instruments such as measuring equipment, optical instruments, medical equipment, etc., which are often very sensitive to vibration and shock.

* The material of the mounting splint *

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
