JGX-1598 Vibration Mounts Versatile Mounting Options and Size Variation for Any Field JGX-1598D-657B

JGX-1598 Vibration Mounts Versatile Mounting Options and Size Variation for Any Field JGX-1598D-657B

JGX-1598D-657B Vibration Mounts

Versatile Mounting Options Vibration Mounts

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-1598D-657B

Contact Us
Request A Quote
Product Details
Applications:
Marine And Industrial Engine Mounts
Characteristic:
Wide Working Frequency, Long Li
Shock Resistance:
40g/11ms
Vibration Isolation:
Up To 90%
Damping Ratio:
0.5
Isolation Frequency:
5Hz
Overall Width:
50mm
Drawing Format:
DWG And PDF
Working Temperature:
-55 ~ +120
Load Range:
5,6KG
Mounting Holes:
M10
Diameter:
1/4 Inch
After Warranty Service:
Online Support
Accessories:
Net
Certifications:
ISO 9001, RoHS
Highlight:

JGX-1598D-657B Vibration Mounts

,

Versatile Mounting Options Vibration Mounts

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Price
$179/pieces 4-199 pieces
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-1598 Series

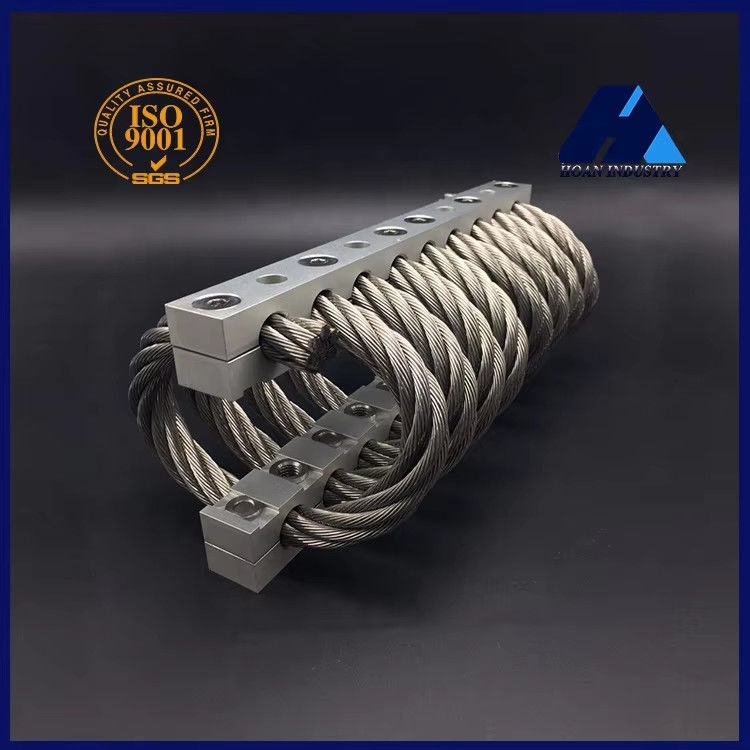

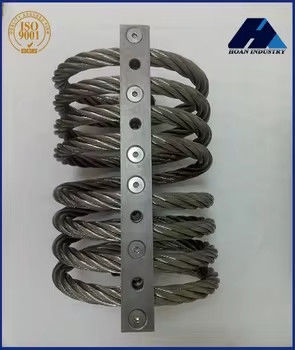

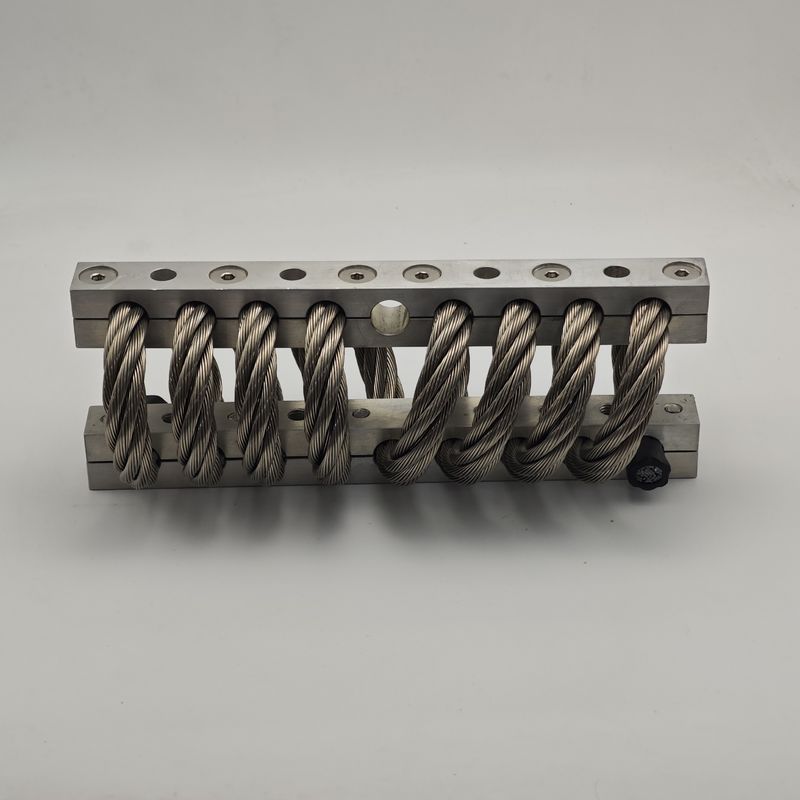

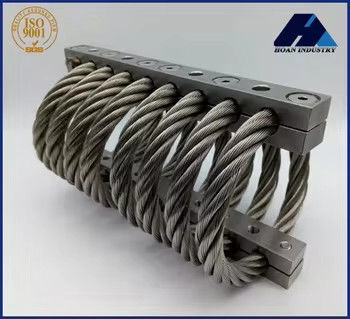

Vibration mounts are comprised of stainless steel stranded cable threaded through alloy or stainless steel retaining bars that are mounted for effective shock and vibration isolation. With versatile mounting options, crimping patterns, and size variation, the vibration mounts can help your systems meet all requirements for industrial, defense, and commercial uses.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.


The max static load of the JGX-1598 series is from 285kg to 657kg, with 8 loops 15.9 diameter wire winded in the mounting bars.

Nowadays, the JGX-1598 sires vibration mouts are widely used in any required field, like defense like land system, air defense systems, precision guided missiles/munitions, ballistic protection system, Fuze system, motor drivers, highway transportation, marine, shipbuilding, navy, energy, electronic sensing devices, mobile electronic devices, etc.

JGX-1598 Vibration Mounts Versatile Mounting Options and Size Variation for Any Field JGX-1598D-657B 0



No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)

1 JGX-1598D-657B 657 31.8 1676 849
2 JGX-1598D-557B 557 38.1 1259 609
3 JGX-1598D-515B 515 41.9 1105 504
4 JGX-1598D-428B 428 49.5 821 356
5 JGX-1598D-358B 358 58.4 616 252
6 JGX-1598D-324B 324 67.3 511 196
7 JGX-1598D-285B 285 73.7 427 159





JGX-1598 Vibration Mounts Versatile Mounting Options and Size Variation for Any Field JGX-1598D-657B 1



No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)

1 JGX-1598D-657B 463.0 45.7 951 419
2 JGX-1598D-557B 406.2 54.6 741 305
3 JGX-1598D-515B 365.4 59.7 627 250
4 JGX-1598D-428B 304.1 71.1 468 177
5 JGX-1598D-358B 254.2 83.8 350 124
6 JGX-1598D-324B 229.2 94.0 285 98
7 JGX-1598D-285B 201.9 101.6 238 81





JGX-1598 Vibration Mounts Versatile Mounting Options and Size Variation for Any Field JGX-1598D-657B 2



No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)

1 JGX-1598D-657B 358.6 34.3 524 524
2 JGX-1598D-557B 308.7 40.6 375 375
3 JGX-1598D-515B 267.8 43.2 308 308
4 JGX-1598D-428B 217.9 52.1 215 215
5 JGX-1598D-358B 154.3 61.0 152 152
6 JGX-1598D-324B 124.8 69.9 123 123
7 JGX-1598D-285B 99.9 76.2 98 98
