JGX-1598 Stainless Steel Vibration Mounts For Marine Shipbuilding And Navy Equipment JGX-1598D-557B

Name: JGX-1598 Stainless Steel Vibration Mounts For Marine Shipbuilding And Navy Equipment JGX-1598D-557B
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1598D-557B
Availability: InStock

Brand Name:	Hoan
Model Number:	JGX-1598D-557B
MOQ:	4 piences
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	4，pience，7

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Shock Absorption:

Yes

After Warranty Service:

Online Support

Characteristic:

Wide Working Frequency, Long Life Span

Type:

HVAC Systems

High:

76/83/89/95/108/124/137/155mm

Natural Frequency:

7Hz-15Hz

Axial Stiffness:

50N/mm

Model:

JGX-0648

Load Capacity:

100-5000 Lbs

Mounting Thread Size:

Packing:

Standard Packing

Isolation Frequency:

10Hz

Resonant Frequency:

10-30 Hz

Applications:

Marine And Industrial Engine Mounts

Maximum Deflection:

10mm

Supply Ability:

4，pience，7

Highlight:

Stainless Steel Vibration Mounts

Marine Shipbuilding Vibration Mounts

Navy Equipment Vibration Mounts

Product Description

JGX-1598 Series

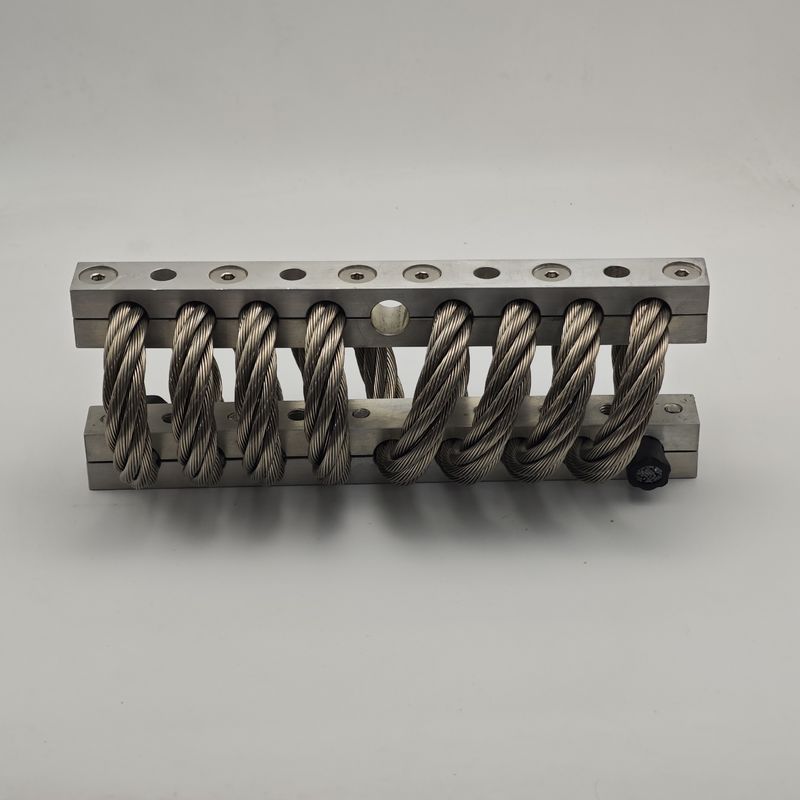

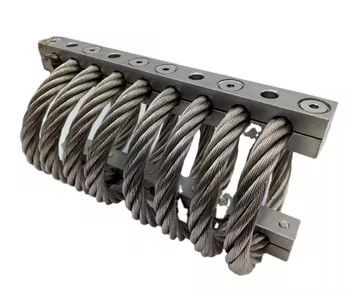

Vibration mounts are comprised of stainless steel stranded cable threaded through alloy or stainless steel retaining bars that are mounted for effective shock and vibration isolation. With versatile mounting options, crimping patterns, and size variation, the vibration mounts can help your systems meet all requirements for industrial, defense, and commercial uses.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

The max static load of the JGX-1598 series is from 285kg to 657kg, with 8 loops 15.9 diameter wire winded in the mounting bars.

Nowadays, the JGX-1598 sires vibration mouts are widely used in any required field, like defense like land system, air defense systems, precision guided missiles/munitions, ballistic protection system, Fuze system, motor drivers, highway transportation, marine, shipbuilding, navy, energy, electronic sensing devices, mobile electronic devices, etc.

JGX-1598 Stainless Steel Vibration Mounts For Marine Shipbuilding And Navy Equipment JGX-1598D-557B 0

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (Kn/m)
1	JGX-1598D-657B	657	31.8	1676	849
2	JGX-1598D-557B	557	38.1	1259	609
3	JGX-1598D-515B	515	41.9	1105	504
4	JGX-1598D-428B	428	49.5	821	356
5	JGX-1598D-358B	358	58.4	616	252
6	JGX-1598D-324B	324	67.3	511	196
7	JGX-1598D-285B	285	73.7	427	159

JGX-1598 Stainless Steel Vibration Mounts For Marine Shipbuilding And Navy Equipment JGX-1598D-557B 1

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (Kn/m)
1	JGX-1598D-657B	463.0	45.7	951	419
2	JGX-1598D-557B	406.2	54.6	741	305
3	JGX-1598D-515B	365.4	59.7	627	250
4	JGX-1598D-428B	304.1	71.1	468	177
5	JGX-1598D-358B	254.2	83.8	350	124
6	JGX-1598D-324B	229.2	94.0	285	98
7	JGX-1598D-285B	201.9	101.6	238	81

JGX-1598 Stainless Steel Vibration Mounts For Marine Shipbuilding And Navy Equipment JGX-1598D-557B 2

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (Kn/m)
1	JGX-1598D-657B	358.6	34.3	524	524
2	JGX-1598D-557B	308.7	40.6	375	375
3	JGX-1598D-515B	267.8	43.2	308	308
4	JGX-1598D-428B	217.9	52.1	215	215
5	JGX-1598D-358B	154.3	61.0	152	152
6	JGX-1598D-324B	124.8	69.9	123	123
7	JGX-1598D-285B	99.9	76.2	98	98
