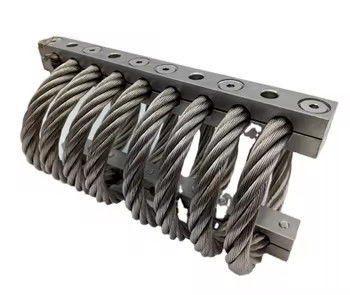

Name: JGX-1598D-515B High Deflection Wire Rope Vibration Isolator for Harsh Environments
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1598D-515B
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-1598D-515B High Deflection Wire Rope Vibration Isolator for Harsh Environments

JGX-1598D-515B Wire Rope Vibration Isolator

Harsh Environments Wire Rope Vibration Isolator

High Deflection Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-1598D-515B

Request A Quote

Product Details

Vibration Frequency:

10Hz To 50Hz

Shock Resistance:

20g/11ms

Working Temperature:

-55 ~ +120

Size:

Custom Size

Maximum Load Capacity:

100kg

Axial Stiffness:

50N/mm

Length:

50mm

Marketing Type:

Hot Product 2024

Isolation Frequency:

5Hz

Manufacturer:

XYZ Company

Usage:

Air Conditioning Terminal

Showroom Location:

None

Warranty:

1 Year

Corrosion Resistance:

High

Overall Width:

50mm

Highlight:

JGX-1598D-515B Wire Rope Vibration Isolator

Harsh Environments Wire Rope Vibration Isolator

High Deflection Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

Stable and Durable Wire Rope Vibration Isolator for Aerial Photography with GR3-11D-A Precision Spring Shock Absorber

Get Best Price

Video

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock

Get Best Price

Video

Stainless Steel Wire Rope Vibration Isolator For Aerial And Communication Water-Proof And Durability JGX-0400-31.5A

Get Best Price

JGX-0648D-56A Meticulously Designed Wire Rope Vibration Isolator for Optimal Performance in Various Devices

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1598 Series

The JGX-1598 series spring shock absorber is a high-performance vibration damping solution for a wide range of industrial, defense, and commercial applications. This product uses advanced materials science and precision manufacturing processes to ensure superior vibration damping and long-term stability.

The JGX-1598 series shock absorbers are designed with a wide range of application scenarios in mind, so they are extremely adaptable. Whether it is in the environment of high temperature, low temperature, humidity or corrosive media, the JGX-1598 series shock absorber can maintain stable performance and provide reliable vibration reduction support for customers' systems.

The JGX-1598 series shock absorber has a simple structure and no complex mechanical parts, which is easy to maintain and replace. Regular inspection and cleaning can ensure the long-term stability and reliability of the shock absorber.

JGX-1598D-515B High Deflection Wire Rope Vibration Isolator for Harsh Environments 0

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (Kn/m)
1	JGX-1598D-657B	657	31.8	1676	849
2	JGX-1598D-557B	557	38.1	1259	609
3	JGX-1598D-515B	515	41.9	1105	504
4	JGX-1598D-428B	428	49.5	821	356
5	JGX-1598D-358B	358	58.4	616	252
6	JGX-1598D-324B	324	67.3	511	196
7	JGX-1598D-285B	285	73.7	427	159

JGX-1598D-515B High Deflection Wire Rope Vibration Isolator for Harsh Environments 1

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (Kn/m)
1	JGX-1598D-657B	463.0	45.7	951	419
2	JGX-1598D-557B	406.2	54.6	741	305
3	JGX-1598D-515B	365.4	59.7	627	250
4	JGX-1598D-428B	304.1	71.1	468	177
5	JGX-1598D-358B	254.2	83.8	350	124
6	JGX-1598D-324B	229.2	94.0	285	98
7	JGX-1598D-285B	201.9	101.6	238	81

JGX-1598D-515B High Deflection Wire Rope Vibration Isolator for Harsh Environments 2

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (Kn/m)
1	JGX-1598D-657B	358.6	34.3	524	524
2	JGX-1598D-557B	308.7	40.6	375	375
3	JGX-1598D-515B	267.8	43.2	308	308
4	JGX-1598D-428B	217.9	52.1	215	215
5	JGX-1598D-358B	154.3	61.0	152	152
6	JGX-1598D-324B	124.8	69.9	123	123
7	JGX-1598D-285B	99.9	76.2	98	98

FAQ

1.Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

2. Can you customize products for us?
Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

3.What is the lead time?

Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our factory has stock.

4. Can I get some samples before place order and how long for a sample?
Yes, sample order is accepted

5. How is your shipping?
1)worldwide shipping service available
2)please contact before order as shipping cost varies time to time.

6. Do you offer discounts for bulk orders?
Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
