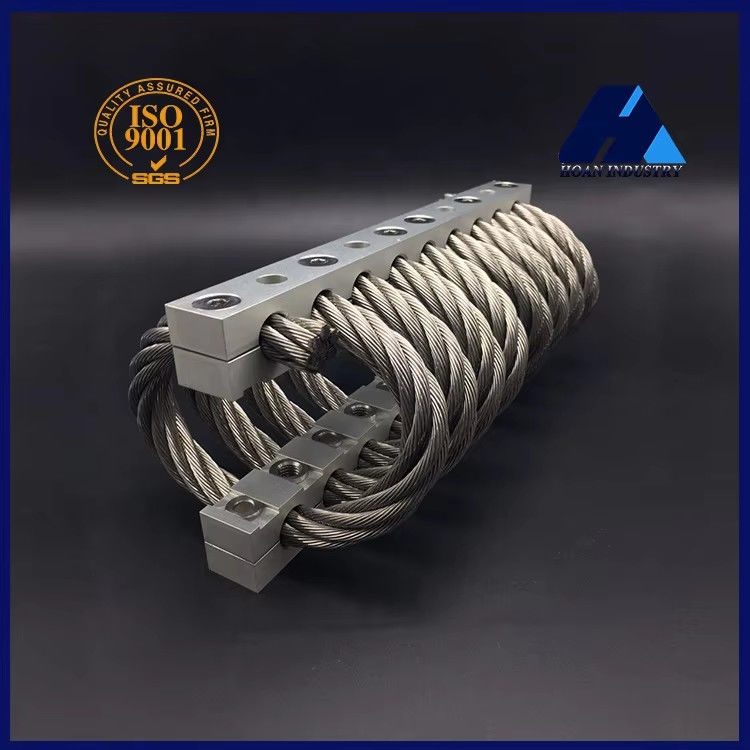

JGX-1598 Series Wire Rope Vibration Isolator Vibration Control For Industrial Applications JGX-1598D-285

JGX-1598 Series Wire Rope Vibration Isolator Vibration Control For Industrial Applications JGX-1598D-285

Wire Rope Vibration Isolator Vibration Control

Industrial Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-1598D-285B

Contact Us
Request A Quote
Product Details
Marketing Type:
New Product 2024
Vibration Frequency:
10-100Hz
Core Components:
Wire Rope
Compression Ratio:
1:2
Wire Rope Material:
Galvanized Steel
Condition:
New
Manufacturer:
XYZ Company
Type:
SHOCK ABSORBER
Design Style:
Industrial
Shock Resistance:
40g/11ms
Color:
Black
Product Keywords:
Wire Vibration Damper
Isolation Efficiency:
90%
Accessories:
Net
Highlight:

Wire Rope Vibration Isolator Vibration Control

,

Industrial Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-1598 Series

JGX-1598 series shock absorbers, with their unique design and excellent performance, have become an indispensable key component in the industrial, defense and commercial fields. As a high-performance vibration control solution, it achieves effective protection of all kinds of machinery and structures through advanced materials science and precision engineering, and greatly improves the stability and reliability of the system.



The core advantage of JGX-1598 series shock absorbers is their excellent seismic isolation performance. It consists of high-quality stainless steel stranded cables that are precision machined to form a strong spring structure. The design of this structure allows the shock absorber to respond quickly to shocks and vibrations, effectively absorbing and dispersing energy, thus protecting the connected mechanical parts from damage. The choice of stainless steel material not only ensures the corrosion resistance and durability of the shock absorber, but also gives it excellent waterproof performance, allowing it to work stably in various harsh environments.



JGX-1598 series shock absorbers have become the leading products in the market due to their excellent performance, wide range of applications and strict quality control. We believe that with the continuous advancement of technology and the continuous expansion of the market, JGX-1598 series shock absorbers will continue to play an important role in creating a safer and more comfortable living environment for human beings. We will continue to devote ourselves to R&D and innovation, continuously improve product performance, provide customers with better services, promote the development of shock absorption technology, and contribute to the progress of society.

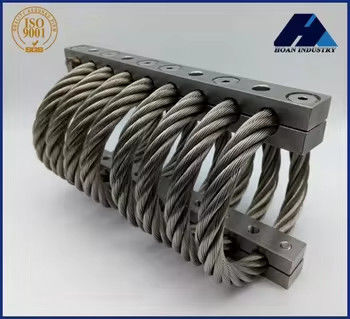

JGX-1598 Series Wire Rope Vibration Isolator Vibration Control For Industrial Applications JGX-1598D-285 0



No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)

1 JGX-1598D-657B 657 31.8 1676 849
2 JGX-1598D-557B 557 38.1 1259 609
3 JGX-1598D-515B 515 41.9 1105 504
4 JGX-1598D-428B 428 49.5 821 356
5 JGX-1598D-358B 358 58.4 616 252
6 JGX-1598D-324B 324 67.3 511 196
7 JGX-1598D-285B 285 73.7 427 159

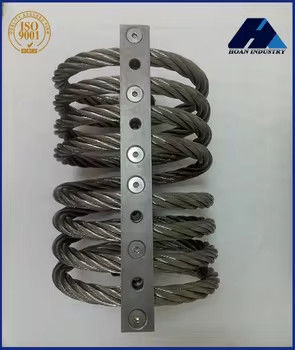

JGX-1598 Series Wire Rope Vibration Isolator Vibration Control For Industrial Applications JGX-1598D-285 1

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)

1 JGX-1598D-657B 463.0 45.7 951 419
2 JGX-1598D-557B 406.2 54.6 741 305
3 JGX-1598D-515B 365.4 59.7 627 250
4 JGX-1598D-428B 304.1 71.1 468 177
5 JGX-1598D-358B 254.2 83.8 350 124
6 JGX-1598D-324B 229.2 94.0 285 98
7 JGX-1598D-285B 201.9 101.6 238 81

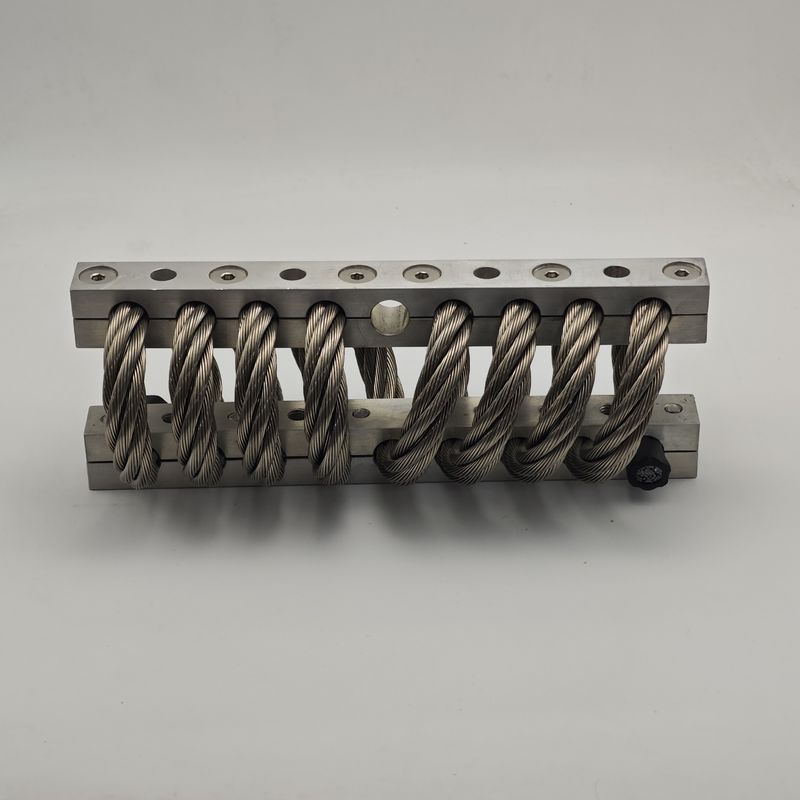

JGX-1598 Series Wire Rope Vibration Isolator Vibration Control For Industrial Applications JGX-1598D-285 2



No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)

1 JGX-1598D-657B 358.6 34.3 524 524
2 JGX-1598D-557B 308.7 40.6 375 375
3 JGX-1598D-515B 267.8 43.2 308 308
4 JGX-1598D-428B 217.9 52.1 215 215
5 JGX-1598D-358B 154.3 61.0 152 152
6 JGX-1598D-324B 124.8 69.9 123 123
7 JGX-1598D-285B 99.9 76.2 98 98





FAQ

1.Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

2. Can you customize products for us?
Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.


3.What is the lead time?

Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our factory has stock.

4. Can I get some samples before place order and how long for a sample?
Yes, sample order is accepted

5. How is your shipping?
1)worldwide shipping service available
2)please contact before order as shipping cost varies time to time.

6. Do you offer discounts for bulk orders?
Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
