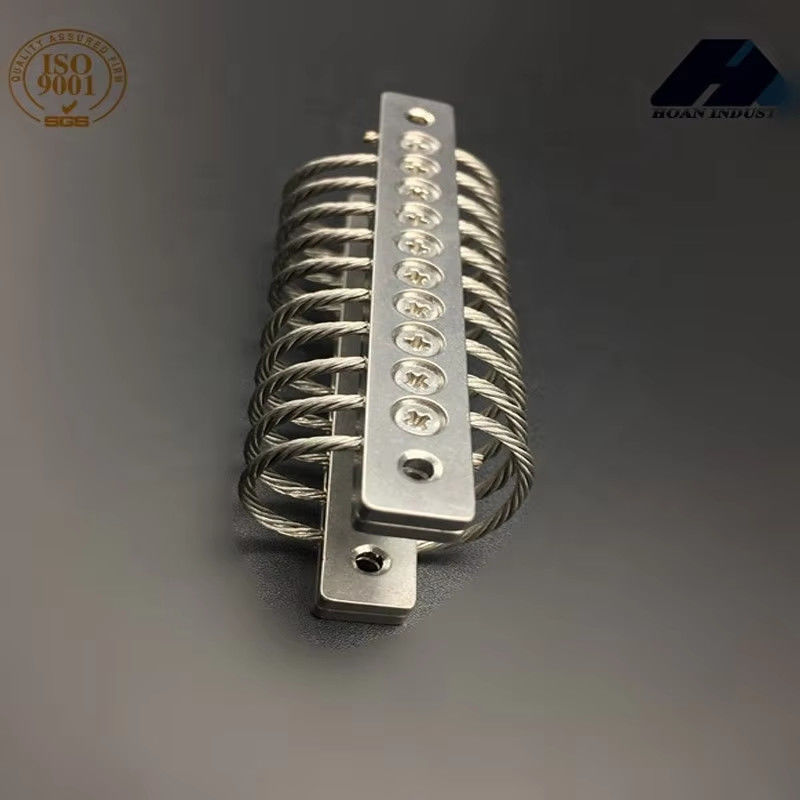

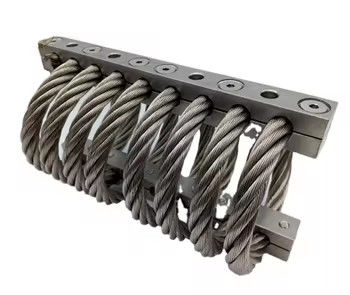

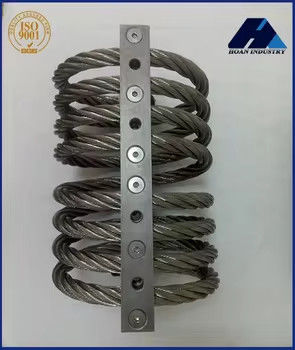

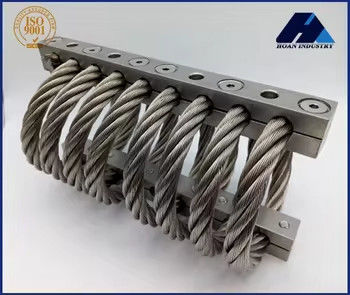

Endless Possibilities With JGX-0480 Series Wire Rope Vibration Isolator JGX-0480-52A

Endless Possibilities With JGX-0480 Series Wire Rope Vibration Isolator JGX-0480-52A

Endless Possibilities Wire Rope Vibration Isolator

JGX-0480-52A Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0480D-52A

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
Shock Rsistance:
30g/11ms
Relative Product:
Backdraft Damper
Width:
140mm
Maximum Load Capacity:
100kg
Diameter:
3mm
Damping Ratio:
0.5
Mounting Orientation:
Vertical
Vibration Frequency:
10-100Hz
Axial Stiffness:
50N/mm
Drawing Format:
DWG And PDF
Product Keywords:
Wire Vibration Damper
Color:
Blackish Green And Silver Pain
Length:
50mm
Showroom Location:
None
Highlight:

Endless Possibilities Wire Rope Vibration Isolator

,

JGX-0480-52A Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Price
$44/pieces 4-199 pieces
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-0480 Series

The JGX-0480 series has a wide range of applications. Its application in military vehicles, armored vehicles, launchers and other military fields is particularly prominent. In these areas, the stability and reliability of vibration isolators are of paramount importance. The JGX-0480 series ensures the stable operation of military equipment and increases combat effectiveness through its excellent shock absorption and corrosion resistance



The successful application of JGX-0480 series is due to our strict control of quality. We follow the international quality management system standards, from the selection of raw materials to every link of the production process, strict quality control. Our team of engineers has the experience and expertise to continuously optimize production processes and improve the performance and reliability of our products. In addition, we provide comprehensive technical support and consulting services to help customers choose the most suitable product for their needs and provide personalized solutions.



The future of JGX-0480 series wire rope isolators is full of endless possibilities. With the advancement of science and technology and changes in the market, we will continue to invest in research and development and constantly explore new materials and technologies to meet the changing market demand. We believe that through continuous innovation and improvement, the JGX-0480 series will exert its excellent performance in more fields and create a safer and more comfortable living environment for human beings.



Endless Possibilities With JGX-0480 Series Wire Rope Vibration Isolator JGX-0480-52A 0

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)

1 JGX-0480D-75A 75 8.6 578 363
2 JGX-0480D-72A 72 11.7 455 252
3 JGX-0480D-61A 61 13.7 347 189
4 JGX-0480D-59A 59 15.7 301 152
5 JGX-0480D-52A 52 18.8 244 117
6 JGX-0480D-50A 50 20.8 212 96
7 JGX-0480D-37A 37 26.9 136 58
8 JGX-0480D-24A 24 29.5 82 33
9 JGX-0480D-18A 18 36.6 54 21
10 JGX-0480D-12A 12 52.8 29 10

Endless Possibilities With JGX-0480 Series Wire Rope Vibration Isolator JGX-0480-52A 1

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)

1 JGX-0480D-75A 54.5 12.7 341 179
2 JGX-0480D-72A 52.2 16.8 258 126
3 JGX-0480D-61A 44.1 19.8 197 93
4 JGX-0480D-59A 41.7 22.9 172 75
5 JGX-0480D-52A 38.1 26.9 141 58
6 JGX-0480D-50A 35.7 29 123 49
7 JGX-0480D-37A 26.5 38.1 77 28
8 JGX-0480D-24A 18.1 41.7 49 18
9 JGX-0480D-18A 13.9 51.3 33 11
10 JGX-0480D-12A 9.3 74.7 18 5.3

Endless Possibilities With JGX-0480 Series Wire Rope Vibration Isolator JGX-0480-52A 2

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)

1 JGX-0480D-75A 36.3 8.6 224 224
2 JGX-0480D-72A 36.3 11.7 156 156
3 JGX-0480D-61A 34.1 14.7 112 112
4 JGX-0480D-59A 31.7 16.8 93 93
5 JGX-0480D-52A 29.5 19.8 70 70
6 JGX-0480D-50A 27.2 21.8 60 60
7 JGX-0480D-37A 20.4 27.9 35 35
8 JGX-0480D-24A 5.9 31.0 11 11
9 JGX-0480D-18A 4.1 39.1 5.3 5.3
10 JGX-0480D-12A 2.2 55.9 2.3 2.3



* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
