JGX-0480 Series Oil And Chemical Resistant Wire Rope Vibration Isolator JGX-0480D-12A

JGX-0480 Series Oil And Chemical Resistant Wire Rope Vibration Isolator JGX-0480D-12A

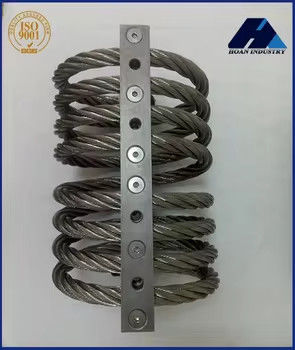

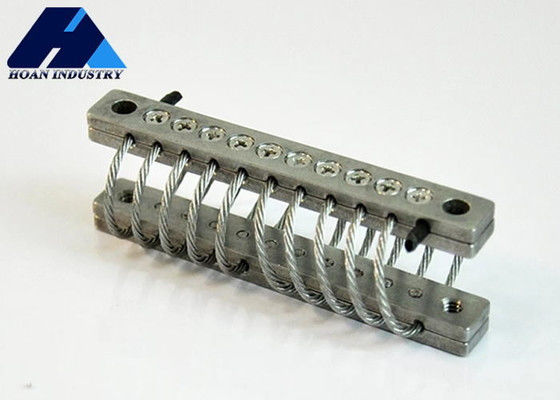

JGX-0480D-12A Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0480D-12A

Contact Us
Request A Quote
Product Details
Resonance Frequency:
15Hz
Max Static Load:
20-47N(2kg-4.8Kg)
Number Of Strands:
7
Accessories:
Net
Structure:
Helical
Load Range:
3.5-2000KG
Mounting Orientation:
Vertical
Wire Rope Material:
Galvanized Steel
Strand Construction:
7 X 19
Isolator Type:
Helical
Wire Rope Construction:
7x19
Wire Rope Diameter:
3mm
Showroom Location:
None
Shock Rsistance:
20g/11ms
Highlight:

JGX-0480D-12A Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Price
$50/pieces 4-199 pieces
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

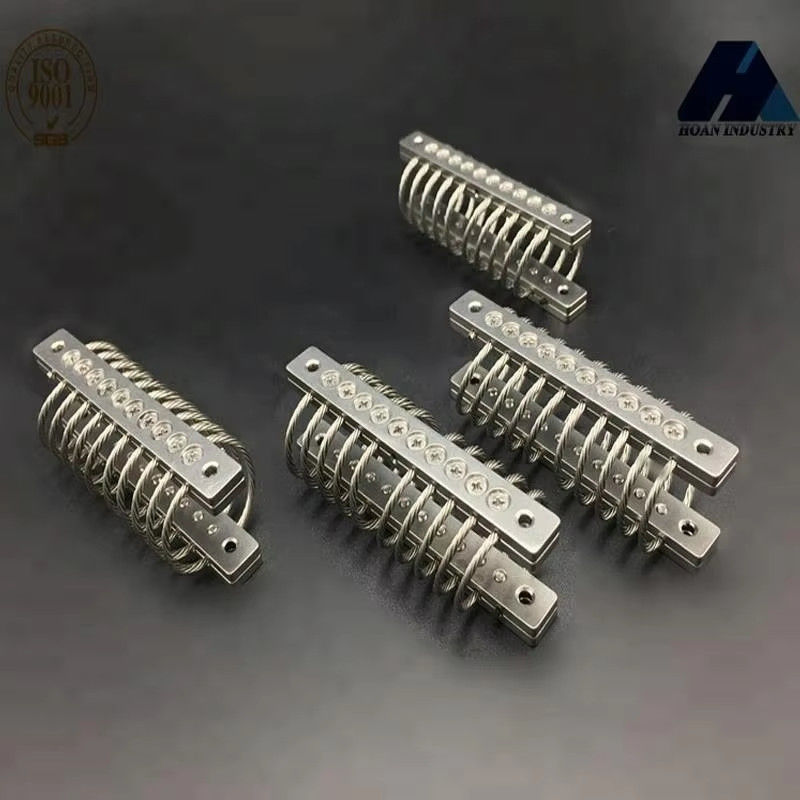

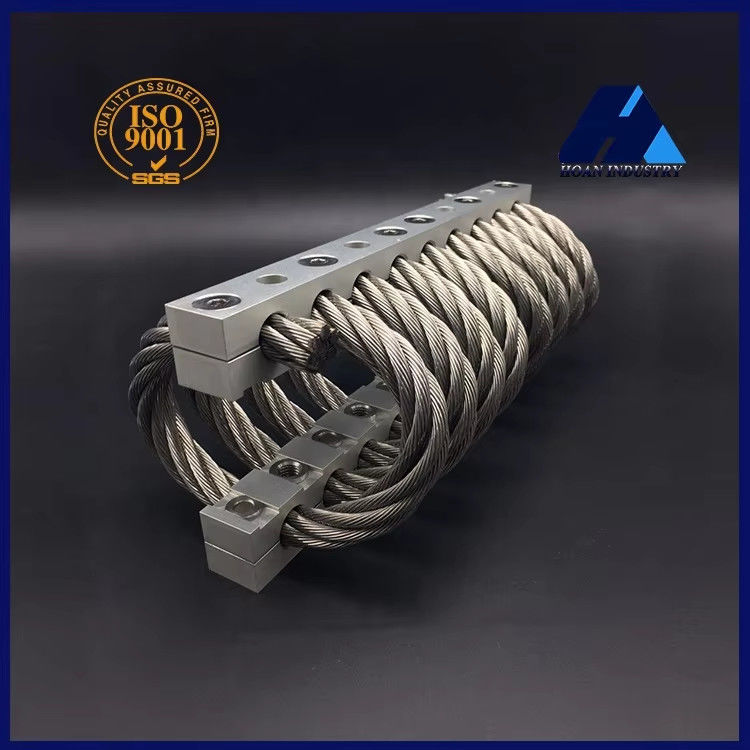

JGX-0480 Series

The JGX-0480 series wire rope isolators are the smaller type isolators with 10 loops 4.8mm diameter wire rope which can absorb shock and vibration in small spaces. The single point mountings of the JGX-0480 series wire rope isolators offer flexibility for integration into existing products. The max static load of the JGX-0480 series wire iolators is from 12kg to 75kg.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope isolators are environmentally stable,
high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

The wire rope isolators are now widely used in the field of military vehicles, armored cars,launcher, highway
transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

What’s more, the JGX-0480 series is also well unaffected by oil, chemicals, abrasives, ozone, and temperature extremes, and they can be used in any needed rough working conditions.



JGX-0480 Series Oil And Chemical Resistant Wire Rope Vibration Isolator JGX-0480D-12A 0

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)

1 JGX-0480D-75A 75 8.6 578 363
2 JGX-0480D-72A 72 11.7 455 252
3 JGX-0480D-61A 61 13.7 347 189
4 JGX-0480D-59A 59 15.7 301 152
5 JGX-0480D-52A 52 18.8 244 117
6 JGX-0480D-50A 50 20.8 212 96
7 JGX-0480D-37A 37 26.9 136 58
8 JGX-0480D-24A 24 29.5 82 33
9 JGX-0480D-18A 18 36.6 54 21
10 JGX-0480D-12A 12 52.8 29 10

JGX-0480 Series Oil And Chemical Resistant Wire Rope Vibration Isolator JGX-0480D-12A 1

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)

1 JGX-0480D-75A 54.5 12.7 341 179
2 JGX-0480D-72A 52.2 16.8 258 126
3 JGX-0480D-61A 44.1 19.8 197 93
4 JGX-0480D-59A 41.7 22.9 172 75
5 JGX-0480D-52A 38.1 26.9 141 58
6 JGX-0480D-50A 35.7 29 123 49
7 JGX-0480D-37A 26.5 38.1 77 28
8 JGX-0480D-24A 18.1 41.7 49 18
9 JGX-0480D-18A 13.9 51.3 33 11
10 JGX-0480D-12A 9.3 74.7 18 5.3

JGX-0480 Series Oil And Chemical Resistant Wire Rope Vibration Isolator JGX-0480D-12A 2

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(Knm)

Ks(shock)

(Knm)

1 JGX-0480D-75A 36.3 8.6 224 224
2 JGX-0480D-72A 36.3 11.7 156 156
3 JGX-0480D-61A 34.1 14.7 112 112
4 JGX-0480D-59A 31.7 16.8 93 93
5 JGX-0480D-52A 29.5 19.8 70 70
6 JGX-0480D-50A 27.2 21.8 60 60
7 JGX-0480D-37A 20.4 27.9 35 35
8 JGX-0480D-24A 5.9 31.0 11 11
9 JGX-0480D-18A 4.1 39.1 5.3 5.3
10 JGX-0480D-12A 2.2 55.9 2.3 2.3



* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
