Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0648D-79A
JGX-0648 Series

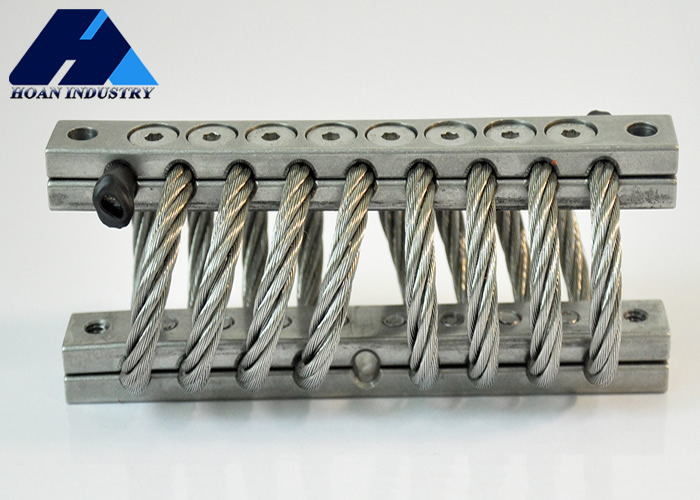

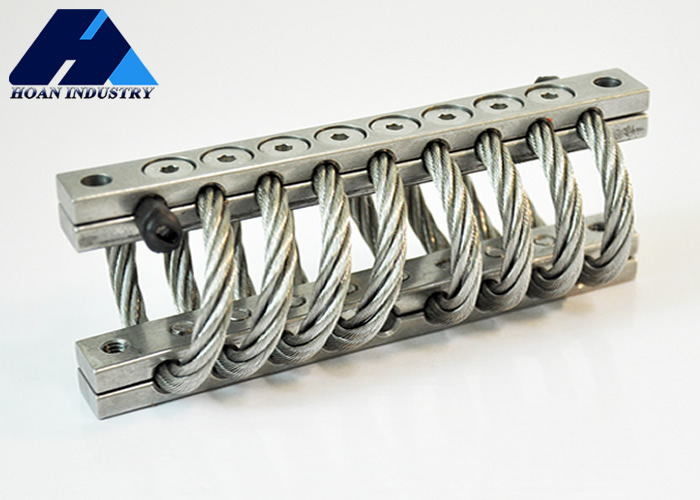

In today's era of rapid development of science and technology, all kinds of advanced machinery and equipment have penetrated into every corner of our lives. While these devices bring us convenience, they also bring some challenges, the most prominent of which is how to ensure the stable operation and longevity of the equipment. And JGX-0648D-79A wire rope seismic isolator was born to solve this problem.
As a member of the JGX-064 series shock isolator family, JGX-0648D-79A steel wire rope shock isolator inherits the excellent genes of the family, and innovates and improves on this basis. It is made of high-quality wire rope material, which has undergone precise process processing and strict quality inspection to ensure the reliability and durability of the product.
The unique design of this type of isolator lies in its internal structure. It uses advanced spring technology, which allows the isolator to react quickly to shocks, effectively absorbing and reducing vibration energy. At the same time, the elastic properties of the wire rope also allow the isolator to maintain good performance under heavy loads without breaking or deformation.
JGX-0648D-79A wire rope shock isolator also has great development potential. With the continuous progress of science and technology and the continuous improvement of people's requirements for equipment performance, the technology of future shock isolators will be more advanced and the functions will be more perfect. For example, by introducing intelligent control technology, the isolator can automatically adjust and optimize performance, further improving the stability and service life of the equipment. At the same time, with the increasing awareness of environmental protection, the environmental performance of seismic isolators will also become one of the important directions for future development.
JGX-0648D-79A Wire Rope Isolator is a product that combines innovative technology with excellent performance. With its unique design, excellent performance and wide application prospects, it has become a dazzling star in the field of machinery and equipment. It is believed that in the future development, it will continue to give full play to its advantages, provide high-quality solutions for more fields and scenarios, and promote the progress and development of the entire industry.
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 79 | 17.8 | 382 | 182 |
| 2 | JGX-0648D-68A | 68 | 23.9 | 266 | 116 |
| 3 | JGX-0648D-56A | 56 | 29.0 | 196 | 79 |
| 4 | JGX-0648D-45A | 45 | 32.0 | 151 | 60 |
| 5 | JGX-0648D-39A | 39 | 32.0 | 127 | 51 |
| 6 | JGX-0648D-36A | 36 | 35.6 | 109 | 42 |
| 7 | JGX-0648D-33A | 33 | 35.6 | 100 | 39 |
| 8 | JGX-0648D-30A | 30 | 50.8 | 74 | 25 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 56.7 | 25.9 | 215 | 89 |
| 2 | JGX-0648D-68A | 47.7 | 34.0 | 151 | 58 |
| 3 | JGX-0648D-56A | 39.8 | 39.6 | 109 | 40 |
| 4 | JGX-0648D-45A | 32.8 | 45.7 | 86 | 30 |
| 5 | JGX-0648D-39A | 27.9 | 45.7 | 72 | 25 |
| 6 | JGX-0648D-36A | 25.3 | 50.8 | 61 | 21 |
| 7 | JGX-0648D-33A | 23.4 | 50.8 | 56 | 19 |
| 8 | JGX-0648D-30A | 21.3 | 71.6 | 41 | 12 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 43.2 | 18.8 | 110 | 110 |
| 2 | JGX-0648D-68A | 36.3 | 24.9 | 72 | 72 |
| 3 | JGX-0648D-56A | 31.7 | 30.0 | 49 | 49 |
| 4 | JGX-0648D-45A | 25.0 | 34.0 | 37 | 37 |
| 5 | JGX-0648D-39A | 22.7 | 34.0 | 32 | 32 |
| 6 | JGX-0648D-36A | 20.4 | 38.1 | 25 | 25 |
| 7 | JGX-0648D-33A | 18.2 | 38.1 | 23 | 23 |
| 8 | JGX-0648D-30A | 15.9 | 52.8 | 16 | 16 |
