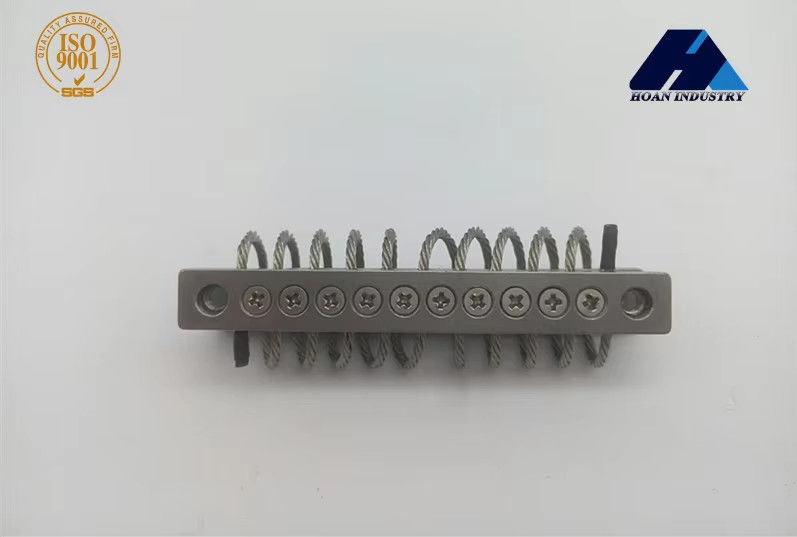

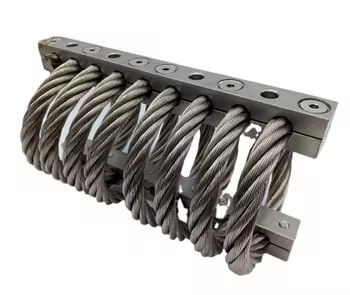

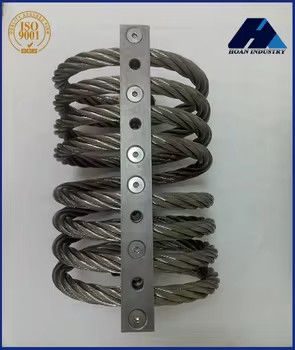

JGX-0648D-45A Versatile Wire Rope Vibration Isolator for Various Mechanical Equipment

JGX-0648D-45A Versatile Wire Rope Vibration Isolator for Various Mechanical Equipment

Versatile Wire Rope Vibration Isolator

JGX-0648D-45A Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0648D-45A

Contact Us
Request A Quote
Product Details
Corrosion Resistance:
High
Damping Ratio:
0.5
Number Of Wires:
7
Feature:
Vibration Isolation
Wire Rope Length:
6 Inches
Number Of Strands:
7
Usage:
Industrial Machinery
Core Components:
Engine, Gear
Size:
To Machine
Shock Absorption:
Yes
Design Style:
Industrial
Mounting Type:
Threaded Stud
Wire Rope Construction:
7x19
Condition:
New
Mounting Thread Size:
M8
Highlight:

Versatile Wire Rope Vibration Isolator

,

JGX-0648D-45A Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JGX-0648 Series

JGX-0648D-45A wire rope shock isolator, as a member of the JGX-064 series shock isolation family, has won wide attention and praise for its unique design and excellent performance. It not only inherits the excellent genes of the family, but also achieves a leap in performance driven by innovative technology, providing a strong guarantee for the stable operation of various equipment and systems.





The unique design of the JGX-0648D-45A wire rope isolator lies in its internal structure. It uses advanced spring technology, which allows the isolator to react quickly to shocks, effectively absorbing and reducing vibration energy. At the same time, the elastic properties of the wire rope also allow the isolator to maintain good performance under heavy loads without breaking or deformation. This ingenious design not only improves the performance of the shock isolator, but also greatly extends its service life.



In addition to excellent performance, JGX-0648D-45A wire rope shock isolator also has a wide range of application prospects. It can not only be used for shock absorption of various mechanical equipment, but also for the seismic reinforcement of building structures, shock absorption of roads and bridges, and other fields. For example, in the automotive industry, it can be used for shock absorption of vehicle suspension systems to improve the ride comfort of vehicles; In the construction industry, it can be used for seismic support of high-rise buildings to improve the stability and safety of buildings. In addition, due to its excellent waterproof and anti-corrosion properties, it can also be used in marine engineering, shipbuilding, and other fields to provide reliable protection for equipment.





JGX-0648D-45A Versatile Wire Rope Vibration Isolator for Various Mechanical Equipment 0

NO. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 JGX-0648D-79A 79 17.8 382 182
2 JGX-0648D-68A 68 23.9 266 116
3 JGX-0648D-56A 56 29.0 196 79
4 JGX-0648D-45A 45 32.0 151 60
5 JGX-0648D-39A 39 32.0 127 51
6 JGX-0648D-36A 36 35.6 109 42
7 JGX-0648D-33A 33 35.6 100 39
8 JGX-0648D-30A 30 50.8 74 25





JGX-0648D-45A Versatile Wire Rope Vibration Isolator for Various Mechanical Equipment 1



NO. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 JGX-0648D-79A 56.7 25.9 215 89
2 JGX-0648D-68A 47.7 34.0 151 58
3 JGX-0648D-56A 39.8 39.6 109 40
4 JGX-0648D-45A 32.8 45.7 86 30
5 JGX-0648D-39A 27.9 45.7 72 25
6 JGX-0648D-36A 25.3 50.8 61 21
7 JGX-0648D-33A 23.4 50.8 56 19
8 JGX-0648D-30A 21.3 71.6 41 12





JGX-0648D-45A Versatile Wire Rope Vibration Isolator for Various Mechanical Equipment 2

NO. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 JGX-0648D-79A 43.2 18.8 110 110
2 JGX-0648D-68A 36.3 24.9 72 72
3 JGX-0648D-56A 31.7 30.0 49 49
4 JGX-0648D-45A 25.0 34.0 37 37
5 JGX-0648D-39A 22.7 34.0 32 32
6 JGX-0648D-36A 20.4 38.1 25 25
7 JGX-0648D-33A 18.2 38.1 23 23
8 JGX-0648D-30A 15.9 52.8 16 16



* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
